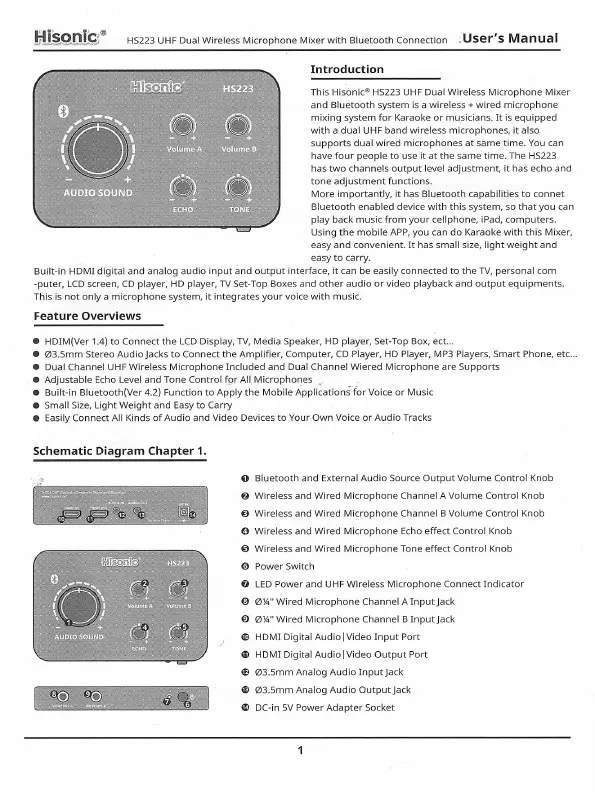

HS2z3uHFDuar wireressMicrophoneMixerwithBluetoothconnection:Usef'sManual
Introduction
This Hisonic@ HS223 UHF Dual Wireless Microphone Mixer
and
Bluetooth system is
a
wireless
+
wired microphone
mixing system
for Karaoke or musicians. It is equipped
with a dual UHF band wireless microphones, it also
supports
dual wired microphones at same time. You can
have four DeoDle to use it at the same time. The HS223
has two channels output level adjustment, it has echo and
tone adjustment functions.
More importantly, it has Bluetooth capabilities to connet
Bluetooth enabled device with this system, so that
you
can
play
back
music from
your
cellphone, iPad, computers.
Using the
mobile APP,
you
can do Karaoke with this Mixer,
easy and convenient. It has small size, light weight and
easy to carry.
Built-in HDMI digital and analog audio
input and output interface, it can be easily connected to the TV,
personal
com
-puter,
LCD screen, CD
player.
HD
player, TV
Set-Top
Boxes and other audio or video
playback
and output equipments.
This
is not only a microphone system. it integrates
your
voice with music.
Feature Overviews
a
HDIM(Ver 1.4) to Connect the
LCD Display, ry, Media Speaker, HD
player,
Set-Top Box, ect...
o
@3.5mm
Stereo AudioJacks to Connect the Amplifier, Computer, CD
Player, HD Player, MP3 Players, Smart Phone, etc
o
Dual Channel UHF
Wireless Microphone Included and Dual Channel Wiered Microphone are Supports
o
Adjustable Echo Level and Tone
control fgr All Microphones
a Built-inBluetooth(Ver4.2) FunctiontoApplytheMobileApplicationsforVoiceorMusic
o Small
Size. Light Weight and Easy to Carry
a
EasilyConnectAll KindsofAudioandVideoDevicestoYourownVoiceorAudioTracks
Schematic
Diagram
Chapter
1.
O
Bluetooth and External Audio Source Output
Volume
Control Knob
g
Wireless and Wired Microphone Channel A
Volume
Control Knob
O
Wireless and Wired Microphone Channel B Volume Control Knob
O
Wireless and Wired Microphone
Echo
effect Control Knob
O Wireless and
Wired Microphone Tone effect Control Knob
@ Power Switch
O LED Power and UHF Wireless Microphone Connect Indicator
@ @7a" Wired Microphone Channel
A
InputJack
I
@%"
Wired Microphone Channel B InputJack
@
H DMI Digital Audio
lVideo
Input Port
@
H DMI Digital Audio
lVideo
Output Port
@ @3smm
Analog Audio InputJack
(9
@3.5mm Analog
Audio outputJack
@ DC-in 5V Power Adapter Socket
