4
English

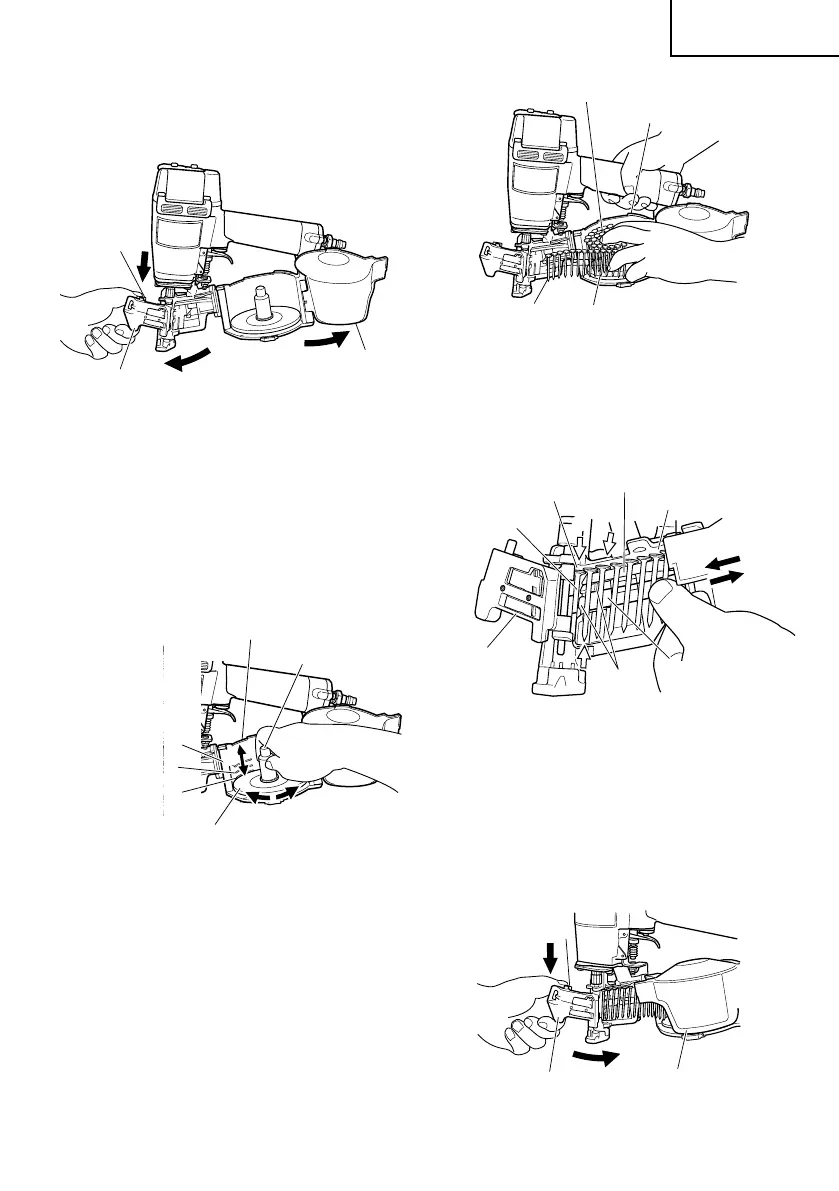

3. Load nails
(1) Grip the nail guide and knob with your fingers. Press
the knob down and swing the nail guide open. Then
open the magazine cover. (Fig. 1)
Fig. 1
(2) Adjust the position of the nail holder according to the
nail length. (Fig. 2)
The nail will not feed smoothly if the nail holder is not
correctly adjusted.
1 Turn the nail holder about 90 degrees
counterclockwise.
2 Move the nail holder up and down to align the
plate of the nail holder with a mark on the magazine
in accordance with the length of the nails being
used.
3 Turn the nail holder 90 degrees clockwise until you
hear "click".
Fig. 2
NOTE:
Before loading nails in the magazine, adjust the nail
holder. If the magazine cover is forcibly closed without
adjusting the nail holder correctly, the nail holder may
be damaged.
(3) Place the nail coil in the magazine.
Insert the first nail into the magazine opening. (Fig. 3)
Fig. 3
(4) Close the magazine cover.
(5) 1 Uncoil enough nails to reach the driving hole.
2 Insert the first nail into the driving hole and the
second nail between the two pawls of the feeder.
3 Fit the nail heads in the guide slot. (Fig. 4)
Fig. 4
NOTE:
Be careful not to deform the collated wires and not to
disengage the nails with the guide surface.
Otherwise, the nail guide will not close correctly.
4 Pulling the nails to the right
After checking and making sure that the magazine
cover is closed, hook your fingers on the nail guide
and knob, turn the nail guide clockwise while
pressing the knob downward, and then close the
nail guide completely. (Fig. 5)
Fig. 5
Nail Guide
Knob
Magazine
Cover
Magazine
For 22 mm, 25 mm,
32 mm (7/8", 1" and
1-1/4")
For 38 mm (1-1/2")
Plate
For 45 mm (1-3/4")
1
2
3
Nail Holder
First Nail
Magazine
Magazine Opening
Nail
Driving Hole
First Nail
Nail Guide
Guide Slot
Pawl
Guide Surface
Feeder
1
2
3
2
4
4
Knob
4
Nail Guide
Magazine Cover
To Next Page
