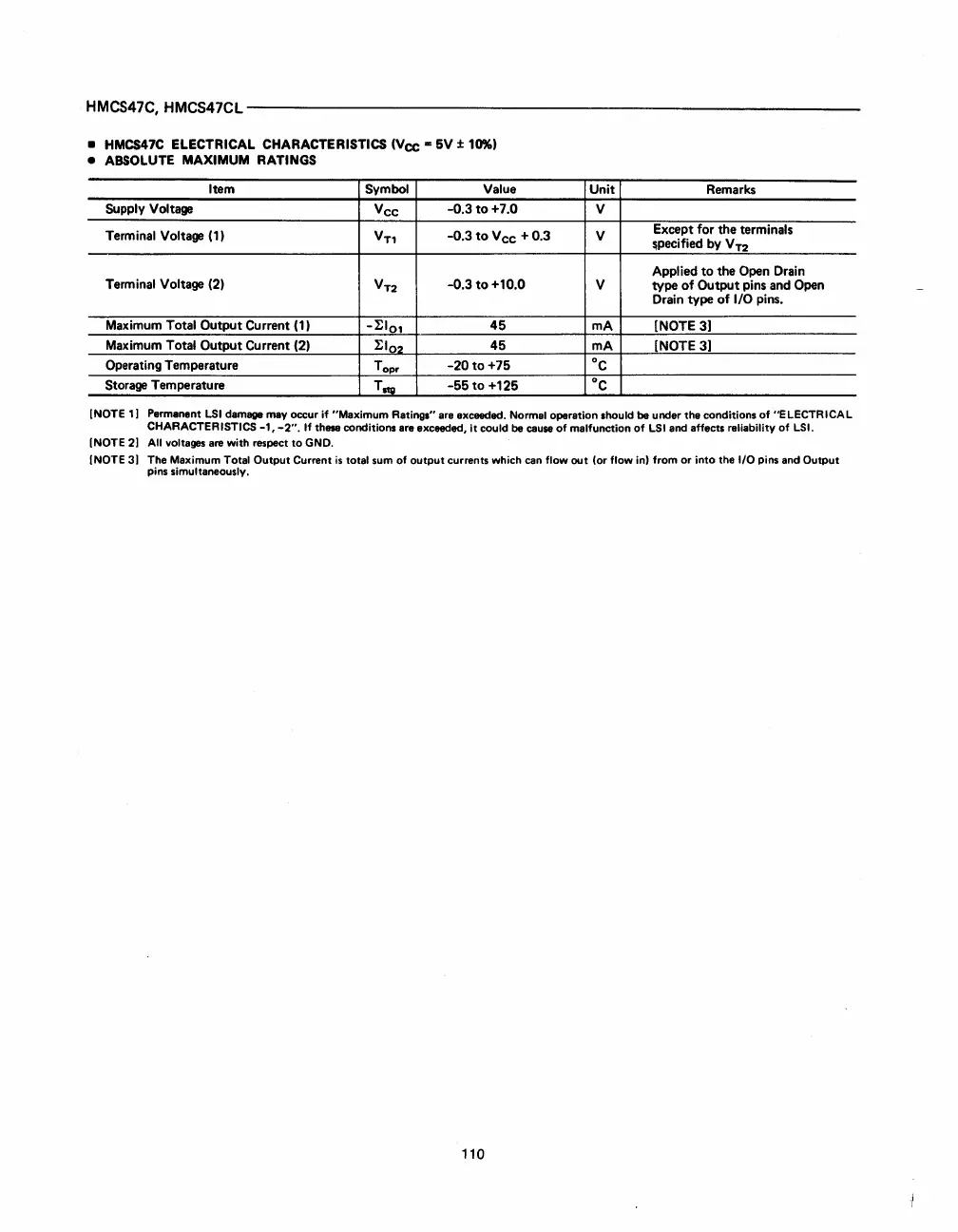

HMCS47C,HMCS47Cl------------------------------------------------------
•
HMCS47C
ELECTRICAL CHARACTERISTICS (Vee -
5V
±
10%)
• ABSOLUTE
MAXIMUM
RATINGS
Item
Symbol Value
Unit
Remarks
Supply Voltage
Vee
-0.3
to
+7.0 V
Terminal Voltage
(1)
V
T1
-0.3
to
Vee + 0.3
V
Except
for
the terminals
~pecified
by V
T2
Applied
to
the
Open
Drain
Terminal Voltage (2)
V
T2
-0.3
to
+10.0
V type
of
Output pins
and
Open
Drain type
of
I/O
pins.
Maximum
Total Output Current (1)
-l:lo1
45
mA
[NOTE 3]
Maximum
Total Output Current (2)
l:I02
45
mA
[NOTE 3]
Operating Temperature
Topr
-20
to
+75
°c
Storage
Temperature
Tstg
-55
to
+125
°c
[NOTE 1) Permanant LSI damage may occur
if
"Maximum
Ratings"
are
exceeded. Normal operation should
be
under the conditions
of
"ELECTRICAL
CHARACTERISTICS
-1,
-2".
If
these conditions are exceeded,
it
could
be
cause
of
malfunction
of
LSI and affects reliability
of
LSI.
[NOTE
2)
All
voltages
are
with
respect
to
GND.
[NOTE
3)
The Maximum Total
Output
Current
is
total sum
of
output
currents which
can
flow
out
lor
flow
in)
from
or
into
the
1/0
pins and
Output
pins simultaneously.
110
