pulse is generated from the prescaler. During operation
of
the
LSI, the prescaler
is
operating and cannot be stopped. (In the
Halt state, it stops.) The relation between the specified value
of
the counter and specified time in the Timer
Mode
is
shown in
Table
S.
The
pulse width
of
the INTI pin in the Counter
Mode
must
be at least 2-cycle time for both
"High" and "Low" levels
as
shown in Figure
t9.
•
INTERRUPT
The
HMCS47C
can be interrupted in two different ways:
through the external interrupt input pins (INTo,
INTI) and the
timer/counter interrupt request.
When
any interrupt occurs,
processing
is suspended, the Status F
/F
is
unchanged, the
present program counter
is
pushed onto the stack STl and the
contents
of
the stacks
STl,
ST2 and ST3 are pushed onto the
stacks
ST2,
ST3
and ST4 respectively. At that time, the Inter-
rupt Enable F
/F
(I/E)
is
set and the address jumps to a fixed
destination (Interrupt Address), and then the interrupt routine
is
executed. Stacking the registers other than the program count-
er must
be
performed by the program. The interrupt routine
Interrupt
Request
from
Timer/
Counter
(Refer
to
Figure 21)
To
the status
F/F
Counter
Overflow
Output
Pulse
(LAT)
Data bus
TF:
Set
has
priority
over Reset
INT,
Pulse
must end with RTNI (Return Interrupt) instruction which sets
the I/E F /F simultaneously with
RTN
instruction.
The Interrupt Address:
Input Interrupt Address
........
Bank 0 1
Page
3F
Address
(1
Page
3F
Address)
Timer/Counter Interrupt Address
........
Bank 0 0
Page
3F
Address
(0
Page
3F
Address)
The input interrupt has priority over the timer/counter
inter-
rupt.
The
INTo
and INTI pin have an interrupt request function.
Each terminal consists
of
a circuit which generates leading pulse
and the Interrupt mask
F/F
(IFO,IFI).
An
interrupt
is
enabled (unmasked) when the
IFO
F/F
or
IFI
F/F
is
reset.
When
the
INTo
or INTI pin changes from
"0"
to
"I"
(from
"Low"
level
to
"High" level), a leading pulse
is
generated to
produce an interrupt request. At the same time, the
IFO
F/F
or
1Ft
F/F
is
set.
When
the
IFO
F/F
or 1Ft
F/F
is
set, the inter-
rupt masking for the pin will result.
(If
a leading pulse
is
gener-
ated, no interrupt request occurs.)
Prescaler
Overflow
Output
Pulse
I
SECF
RECF
6·bit
Prescaler
INT,
Leading Pulse
(Refer
to
Figure 21)
System
Clock
(
"I
nstructiOn)
Frequency
tiNT
~
2·Tinst
(Tinst = One Instruction Cycle Time)

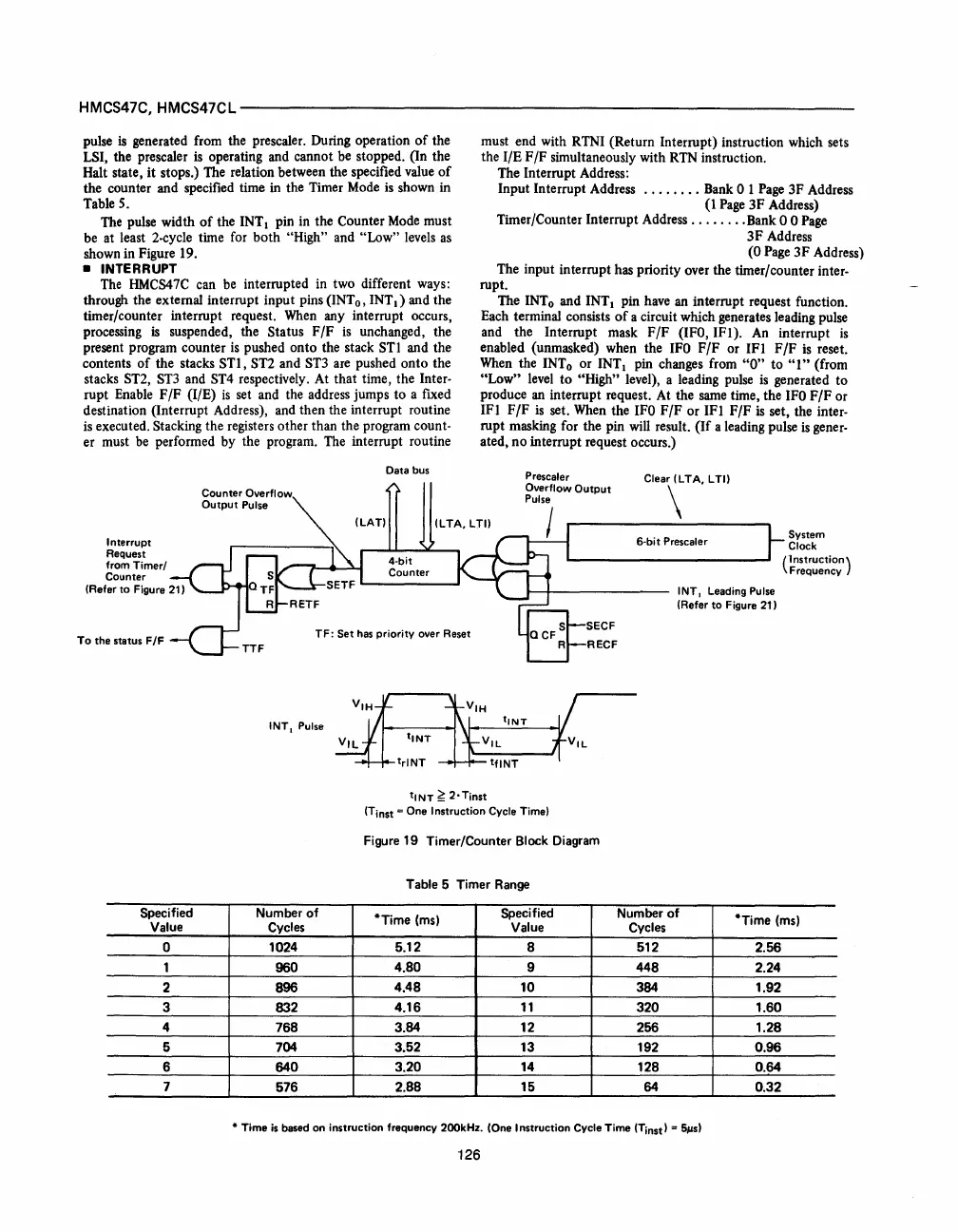

Figure 19 Timer/Counter Block Diagram
Table 5 Timer
Range
Specified Number
of
*Time
(ms)
Specified Number
of
*Time
(ms)
Value Cycles Value Cycles
0
1024
5.12 8 512
2.56
1
960
4.80
9 448
2.24
2 896
4.48
10 384
1.92
3 832 4.16
11
320 1.60
4 768 3.84 12
256
1.28
5
704
3.52 13
192
0.96
6 640 3.20
14
128 0.64
7
576
2.88
15
64
0.32
•
Time
is
based
on
instruction
frequency 200kHz. (One
Instruction
Cycle
Time
(Tinst) =
5~s)
