---------------------------------------------------------------HD614P080S
• REGISTER AND FLAG
The
MCU
has nine registers
and
two flags for
the
CPU opera-
tions.
They
are illustrated in Fig. 5
and
described in
the
follow-
ing paragraphs.
• Accumulator (A), B Register
(B)
Accumulator and B Register are 4-bit registers used
to
hold
the
results
of
Arithmetic Logic Unit (ALU), and
to
transfer data
to/from
memories,
I/O
and
other
registers.
• W Register (W), X Register (X), V Register (V)
W Register
is
2-bit, and X and Y Register are 4-bit registers
used for indirect addressing
of
RAM. Y register
is
also used
for D-port addressing.
• SPX Register (SPX), SPV Register (SPV)
SPX and
Spy
Register are 4-bit registers used
to
assist X and
Y Register respectively.
• Carry (CA)
Carry (CA) stores the overflow
of
ALU generated by the
arithmetic operation.
It
is
also affected by SEC, REC, ROTL and
ROTR
instructions.
During interrupt servicing,
Carry
is
pushed
onto
the stack
and
restored back from the stack
by
RTNI instruction.
(It's
not
affected
by
RTN instruction.)
•
Status
(ST)
Status
(ST) holds
the
ALU overflow, ALU non-zero
and
the
results
of
bit test instruction for
the
arithmetic
or
compare in-
struction.
It
is
used for a branch condition
of
BR, BRL, CAL
or
CALL instructions. The value
of
the
Status remains unchanged
until
the
next
arithmetic, compare
or
bit test instruction
is
ex-
ecuted. Status becomes
"I"
after
the
BR, BRL, CAL
or
CALL
instruction has been executed (irrespective
of
its
execution/
skip). During the
interrupt
servicing,
Status
is
pushed
onto
the
~
___
-.JI
'"umula'o'
'--
____
J B
Regl~ler
, 0
c=:J
W Reg.ster
'--
______________
----.JI
P'o~;:~.,

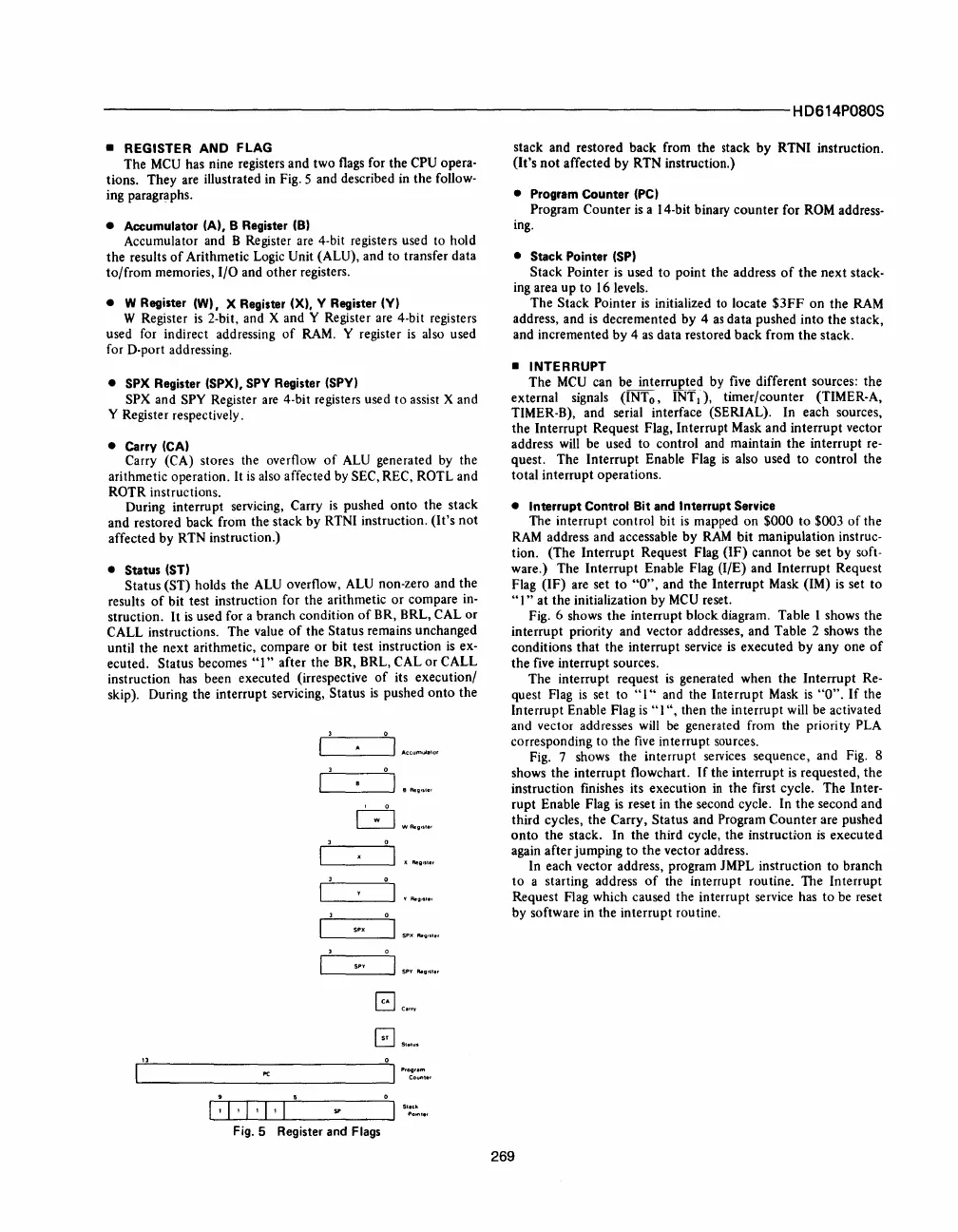

Fig. 5 Register and Flags
stack and restored back from the stack
by
RTNI instruction.
(It's
not
affected
by
RTN instruction.)
• Program
Counter
(PC)
Program
Counter
is
a I4-bit binary
counter
for ROM address-
ing.
•
Stack
Pointer (SP)
Stack
Pointer
is
used
to
point
the address
of
the
next
stack-
ing area up
to
16 levels.
The
Stack Pointer
is
initialized to locate
$3FF
on
the
RAM
address, and
is
decremented
by
4
as
data
pushed
into
the
stack,
and incremented
by
4
as
data restored
back
from
the
stack.
• INTERRUPT
The
MCU
can be
interrupted
by five different sources:
the
external signals
(INTo,
INl\),
timer/counter
(TIMER-A,
TIMER-B), and serial interface (SERIAL). In each sources,
the
Interrupt
Request Flag, Interrupt Mask
and
interrupt
vector
address will be used
to
control
and maintain
the
interrupt
re-
quest. The
Interrupt
Enable Flag
is
also used
to
control
the
total
interrupt
operations.
•
Interrupt
Control Bit
and
Interrupt
Service
The
interrupt
control
bit
is mapped
on
$000
to
$003
of
the
RAM
address
and
accessable
by
RAM
bit
manipulation instruc-
tion. (The
Interrupt
Request Flag
(IF)
cannot
be set
by
soft-
ware.) The
Interrupt
Enable Flag (I/E)
and
Interrupt
Request
Flag
(IF)
are set
to
"0",
and
the
Interrupt
Mask (1M)
is
set
to
"I"
at
the
initialization
by
MCU
reset.
Fig. 6 shows
the
interrupt
block diagram. Table I shows
the
interrupt
priority
and
vector addresses,
and
Table 2 shows
the
conditions
that
the
interrupt
service
is
executed
by
anyone
of
the
five
interrupt
sources.
The
interrupt
request
is
generated when
the
Interrupt
Re-
quest Flag
is
set
to
"I"
and the Interrupt Mask
is
"0".
If
the
Interrupt
Enable Flag
is
"\
",
then the
interrupt
will be activated
and vector addresses will
be
generated from the priority PLA
corresponding
to
the five
interrupt
sources.
Fig. 7 shows the
interrupt
services sequence,
and
Fig. 8
shows
the
interrupt
flowchart.
If
the
interrupt
is requested,
the
instruction finishes its execution
in
the
first cycle.
The
Inter-
rupt
Enable Flag
is
reset in
the
second cycle. In
the
second
and
third cycles,
the
Carry,
Status
and
Program
Counter
are pushed
onto
the stack. In
the
third
cycle,
the
instruction
is
executed
again
after
jumping
to
the
vector address.
In each vector address, program JMPL instruction
to
branch
to
a starting address
of
the
interrupt
routine. The
Interrupt
Request Flag which caused the interrupt service has
to
be reset
by software in the
interrupt
routine.
269
