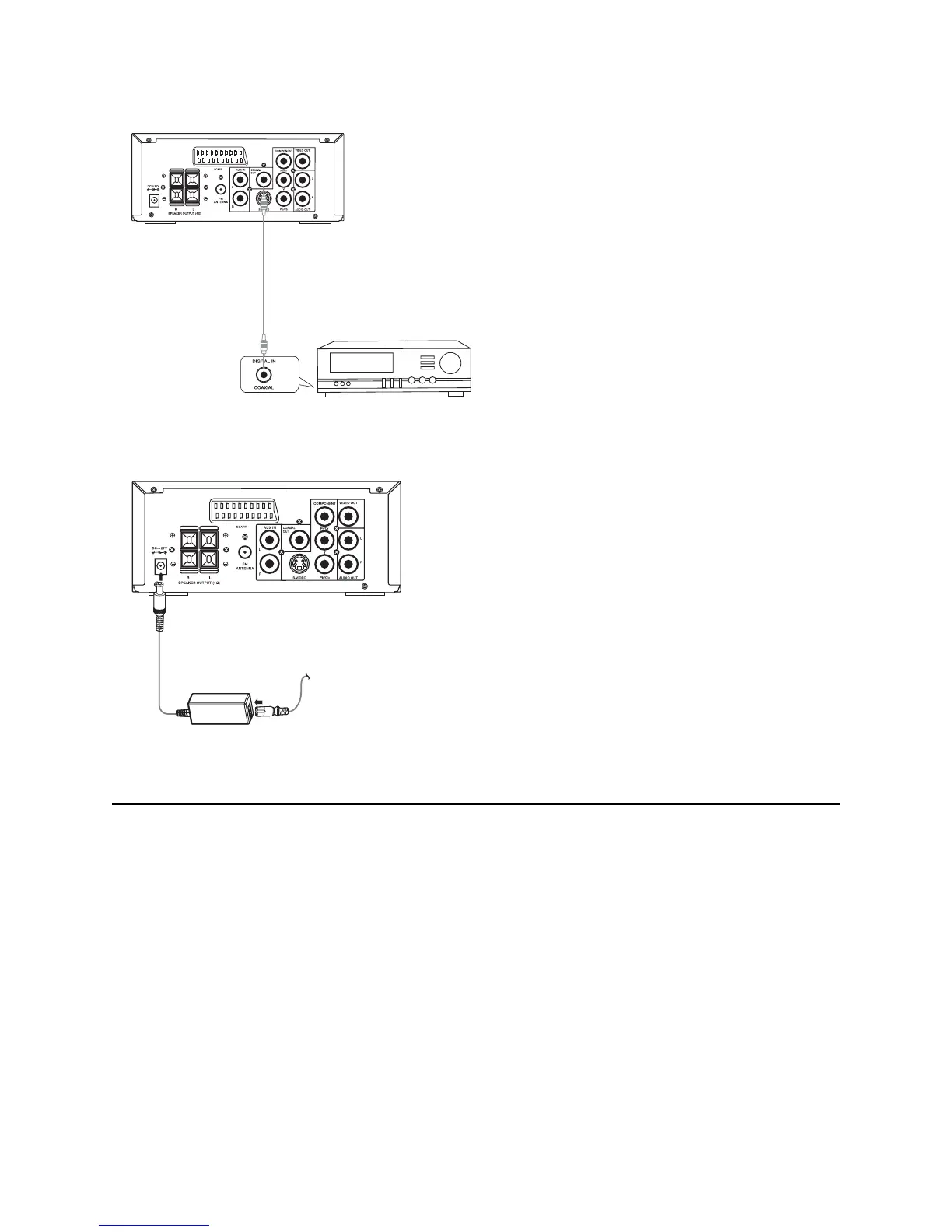

Connecting to the amplifier with digital signal input terminal
Use coaxial signal wire to connect coaxial output
jack of the DVD player with coaxial input jack of
other amplifier.
Connecting the AC Power Cord
Insert the AC adapter’s DC plug into the unit, then
insert one side of AC power cord into AC adapter
and other side into a wall outlet, and your system
is at your command!
Caution:
Be sure to unplug the power cord from the outlet
when going away or when the system is not
in use for an extended period of time.
Turning the Power On and Off
You can use all the functions on the panel of the unit or the remote control after connecting to power
supply (called Standby Mode).
Turning the System On
Press the
STANDBY button to turn the system on from standby mode.
Caution: When turning the system on, the system will continue in the mode it was in when it was turned
off last time.
Turning the System Off
Press the
STANDBY button again to turn the system off and go to standby mode.
Caution: Be sure to unplug the power cord from the outlet when the system is not in use for an
extended period of time.
Switching the system to ECO Power Standby mode
Press and hold the
STANDBY button for 2 seconds or more to switch to ECO Power Standby or normal
standby.
* In ECO Power standby mode, the ECO Power indicator light is on. Press the
CLOCK button to display
the clock on the VFD.
* In normal standby mode, the clock is displayed on the VFD.
With digital signal input terminal’s
Dolby Digital signal decode amplifier
With digital signal input terminal’s Dolby
Digital signal decode amplifier terminal board
AC/DC Adapter
AC Cord
Terminal board
for the DVD player
Terminal board
for the DVD player
DC Plug
