Hitachi C 10FCB - Oblique Angle; Securing the Workpiece; Installing Holders (Optional Accessory)

13
English

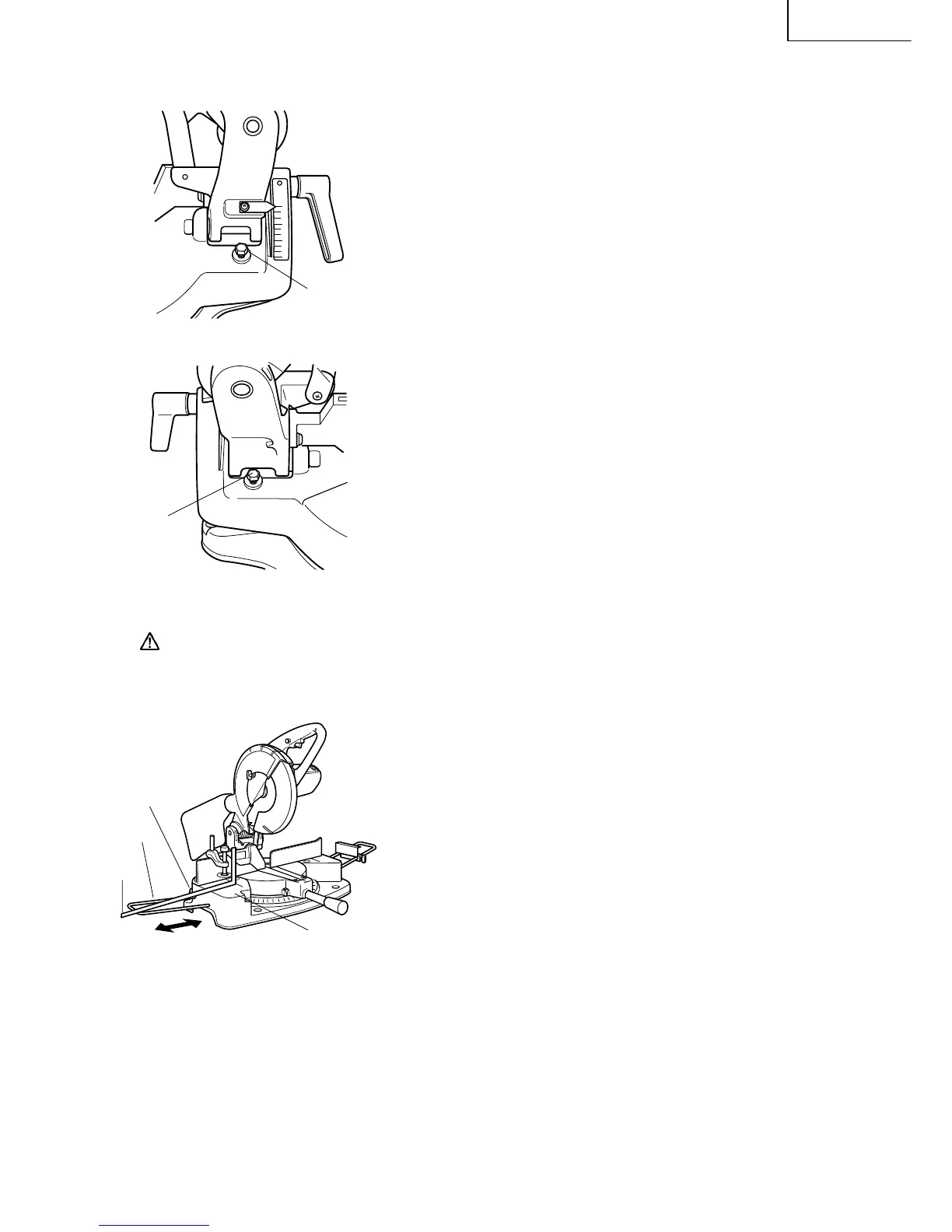

4. Oblique angle
Before the power tool is shipped from the factory, it is adjusted for
0° and left 45° bevel cutting angles.
The positioning and bevel cutting angle can be adjusted by
changing the height of the 8 mm bolt.
(Maximum bevel cutting angle is 45°).
5. Securing the workpiece
WARNING: Always clamp or vise to secure the workpiece to the fence; otherwise the workpiece
might be thrust from the table and cause bodily harm.
6. Installing the holders (Optional accessory)
The holders help keep longer workpieces stable and in place during
the cutting operation.
(1) As indicated in Fig. 12, use a steel square for aligning the upper
edge of the holders with the base surface.
(2) After aligning, secure the holders with the 6 mm wing bolts.
Fig. 10
8 mm
Bolt
Fig. 11
Fig. 12
8 mm
Bolt
6 mm
Wing Bolt
Holder
Steel
Squar
Base Surface
