13
English

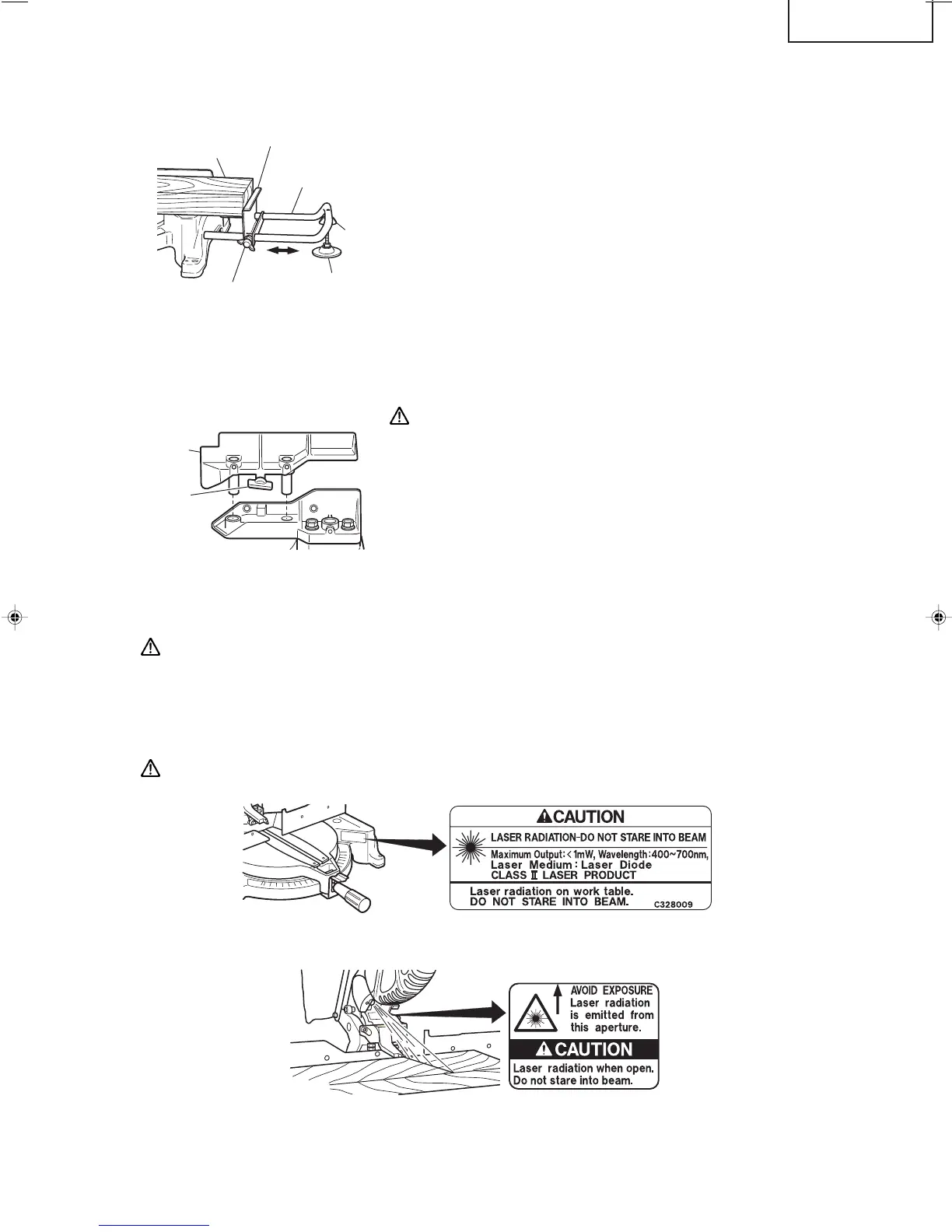

4. Stopper for precision cutting ... (Stopper and holder are optional accessory)
The stopper facilitates continuous precision cutting in lengths of
11" to 17-3/4" (280mm to 450mm).
To install the stopper, attach it to the holder with the 6mm wing
bolt as shown in Fig. 10.
Fig. 10
5. Confirmation for use of sub fence …(Optional accessory)
WARNING: In the case of left bevel cutting, remove the sub
fence. Supposing it is not able to remove it, It
will contact the blade or some part of the tool,
causing in serious injury to operator.
In the case of direct angle cutting and angle cutting, use the sub
fence. The sub fence can be installed on the left side of the guide
fence. Insert the rods of the sub fence into the holes in the guide
fence. Tighten the 6mm wing bolt which come with the sub fence
to secure the sub fence. Then, you can realize stable cutting of the
material with a wide back face.
Fig. 11
6. Position adjustment of laser line (Only Model C10FCH)
WARNING: * Make sure before plugging the power plug into the receptacle that the main body
and the laser marker are turned off.
* Exercise utmost caution in handling a switch trigger for the position adjustment of
the laser line, as the power plug is plugged into the receptacle during operation.
If the switch trigger is pulled inadvertently, the saw blade can rotate and result in
unexpected accidents.
* Do not remove the laser marker to be used for other purposes.
CAUTION:
Workpiece
Stopper
(Optional accessory)
6mm Wing Bolt
(Optional accessory)
Holder
(Optional
accessory)
Move
6mm Wing Nut (Optional accessory)
Height Adjustment Bolt 6mm (Optional accessory)
Sub Fence
6mm Wing
Bolt
Fig. 13
Fig. 12
01e_c10fch_e.p65 1/21/04, 0:05 PM13
