20
English
For miter cut setting
If the turntable has been set to either of the angles described, move the turntable adjusting side handle
a little to the right and left to stabilize the position and to properly align the miter angle scale and the tip
of the indicator before the operation starts.
For bevel cut setting
Move handle on bevel section to the right and left and check that the position is stable and that the
bevel angle scale and the tip of the indicator are properly aligned. Then tighten the clamp lever.

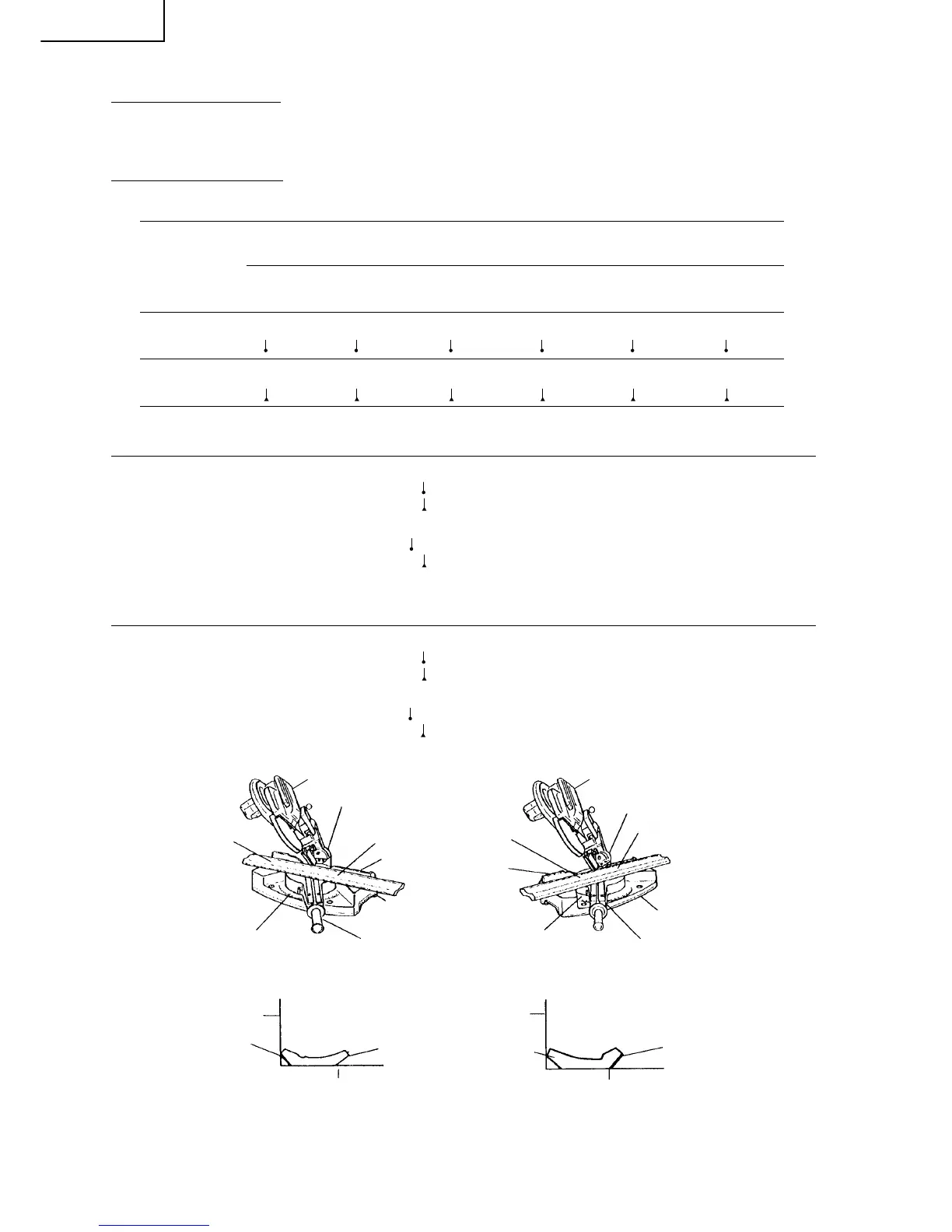

(1) Setting to cut crown moldings at positions q and r in Fig. 28 (see Fig. 29; tilt the head to the left):
q Turn the turntable to the right and set the Miter Angle as follows:
* For 45°type crown moldings: 35.3° ( mark)
* For 38°type crown moldings: 31.6° ( mark)
w Tilt the head to the left and set the Bevel Angle as follows:
* For 45°type crown moldings: 30° ( mark)
* For 38°type crown moldings: 33.9° ( mark)
e Position the crown molding so that the upper surface (A in Fig. 27) contacts the fence as indicated in
Fig. 30.
(2) Setting to cut crown moldings at positions w and e in Fig. 28 (see Fig. 31; tilt the head to the left):
q Turn the turntable to the left and set the Miter Angle as follows:
* For 45°type crown moldings: 35.3° ( mark)
* For 38°type crown moldings: 31.6° ( mark)
w Tilt the head to the left and set the Bevel Angle as follows:
* For 45°type crown moldings: 30° ( mark)
* For 38°type crown moldings: 33.9° ( mark)
e Position the crown molding so that the lower surface (B in Fig. 27) contacts the fence as in Fig. 32.
Fig. 29 Fig. 31
Fig. 30 Fig. 32
To process crown molding at
positions 1 and 4 in Fig. 28.
To process crown molding at
positions 2 and 3 in Fig. 28.
Type of
Crown
Molding
45° Type
38° Type
Miter Angle
Setting
right 35.3°
( mark)
right 31.6°
( mark)
Miter Angle
Setting
left 35.3°
( mark)
left 31.6°
( mark)
Bevel Angle
Setting
left 30°
( mark)
left 33.9°
( mark)
Bevel Angle
Setting
left 30°
( mark)
left 33.9°
( mark)
right 30°
( mark)
right 33.9°
( mark)
right 30°
( mark)
right 33.9°
( mark)
Fence
Table on Base
B
Table on Base
Bevel Angle Scale
Fence
Base
Bevel Angle Scale
Base
w
r
e
q
Miter Angle Scale Miter Angle ScaleTurntable Turntable
Fence
A
B
A
Fence
Head Head
