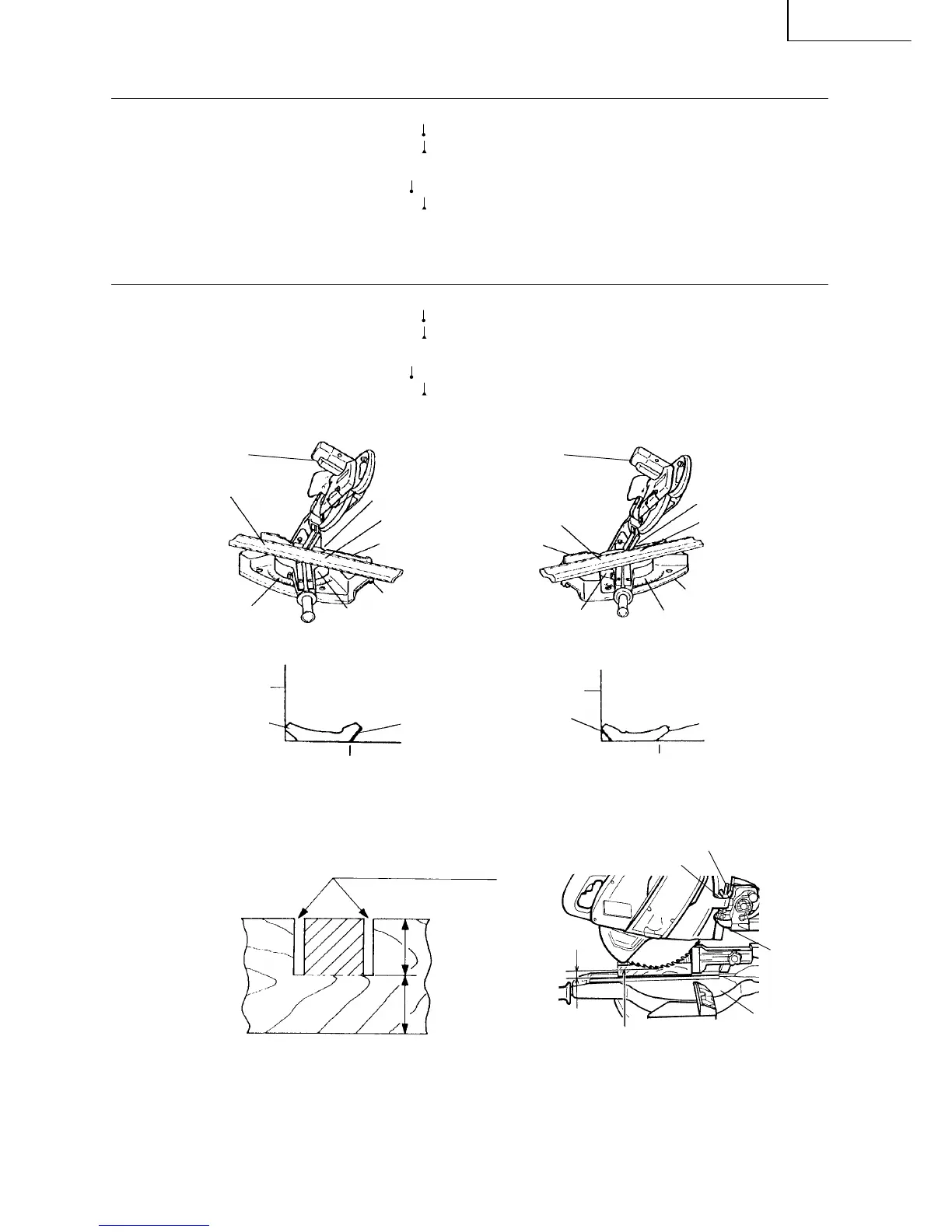

(3) Setting to cut crown moldings at positions q and r in Fig. 28 (see Fig. 33; tilt the head to the right):
q Turn the turntable to the right and set the Miter Angle as follows:
* For 45°type crown moldings: 35.3° ( mark)
* For 38°type crown moldings: 31.6° ( mark)
w Tilt the head to the right and set the Bevel Angle as follows:
* For 45°type crown moldings: 30° ( mark)
* For 38°type crown moldings: 33.9° ( mark)
e Position the crown molding so that the upper surface (B in Fig. 27) contacts the fence as indicated
Fig. 34.
(4) Setting to cut crown moldings at positions w and e in Fig. 28 (see Fig. 33; tilt the head to the right):
q Turn the turntable to the left and set the Miter Angle as follows:
* For 45°type crown moldings: 35.3° ( mark)
* For 38°type crown moldings: 31.6° ( mark)
w Tilt the head to the right and set the Bevel Angle as follows:
* For 45°type crown moldings: 30° ( mark)
* For 38°type crown moldings: 33.9° ( mark)
e Position the crown molding so that the lower surface (A in Fig. 27) contacts the fence as in Fig. 36.
Fig. 33 Fig. 35
Fig. 34 Fig. 36
11. Groove cutting procedures
Fig. 37 Fig. 38
Grooves in the workpiece can be cut as indicated in Fig. 37 by adjusting the 8mm depth adjustment bolt.
Bevel Angle Scale
Fence
Turntable
q
r
Base
Miter Angle
Scale
Fence
Turntable
Bevel Angle Scale
Base
Miter Angle
Scale
w
e
Fence
Table on Base
A
B
Fence
Table on Base
A
B
Head
Head
a
b
8mm Depth Adjustment Bolt
8mm Wing Nut
Bottom Line of
the Groove
Turntable
b
Cut grooves with saw blade
Hinge
