Introduction
(1) Lamp cover (98)
The lamp unit is inside.
(2) Control panel (5)
(3) Elevator feet (x 2) (25)
(4) Remote sensor (x 2)(18)
(5) projection window (102)
(6) Intake vents
(7) Filter cover (100)
The air lter and intake vent
are inside.
(8) Speaker (12, 23, 53)
(9) Exhaust vent
(10) AC (AC inlet) (15)
(11) Ports (5)
(12) Security bar (15)
(13) Security slot (15)
(14) Spacer (x 2) (25)
(15) Battery cover (103)
►HOT! : Do not touch around the lamp cover and the exhaust
vents during use or just after use, since it is too hot.
►Never look into the projection window while the projection lamp lights, since
the projection lamp ray may cause a trouble on your eyes.
►Do not use the security bar and slot to prevent the projector from falling down,
since it is not designed for it.
WARNING
►Maintain normal ventilation to prevent the projector from
heating up. Do not cover, block or plug up the vents. Do not place anything that
can stick or be sucked to the vents, around the intake vents. Clean the air lter
periodically.
CAUTION

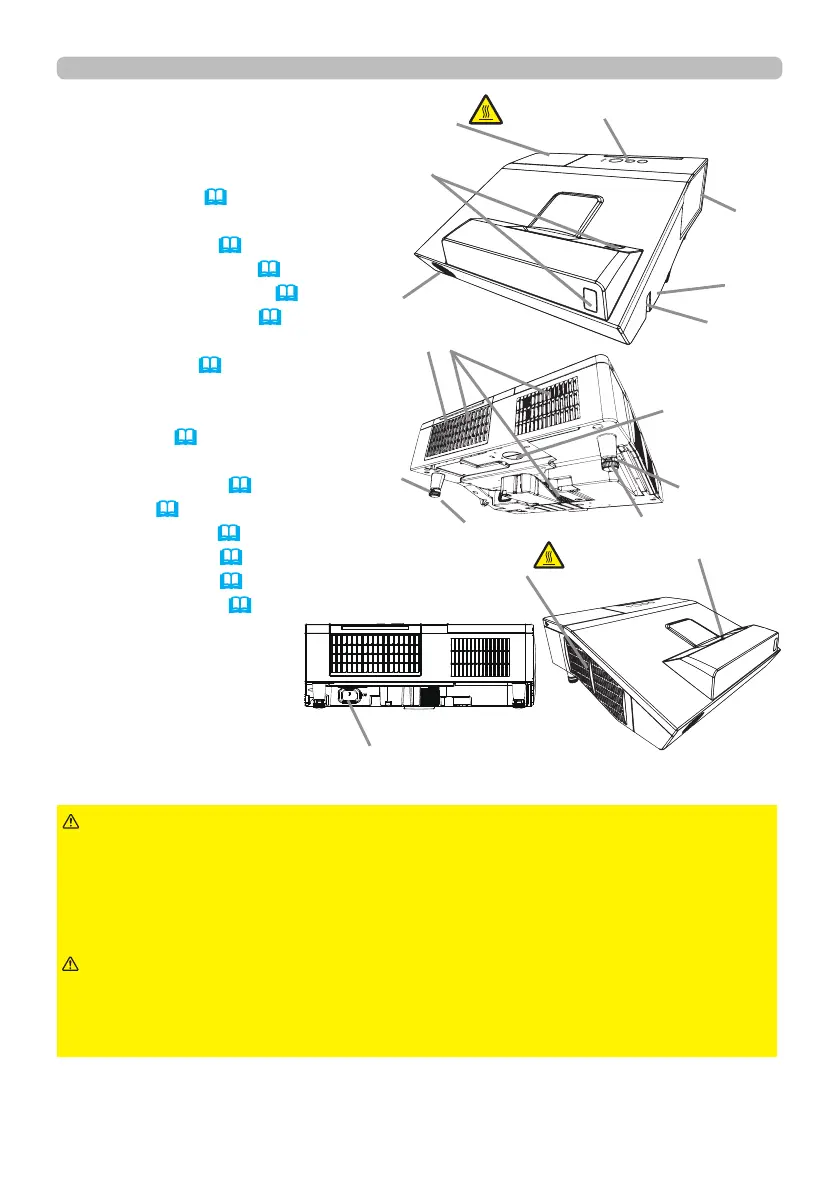

Part names
Projector
(5)
(15)
(4)
(10)
HOT!
HOT!
(1)
(2)
(6)
(3)
(3)
(7)
(8)
(11)
(12)
(13)
(9)
(14)
(14)

Hitachi CP-AW2505 Specifications

General

Matrix size	0.59 \
Matrix type	3-panel (p-Si TFT active)
Number of colors	16.78 million colors
Native aspect ratio	16:10
Projection distance	0.368 - 0.649 m
Projection technology	3LCD
Contrast ratio (typical)	10000:1
Screen size compatibility	60 - 100 \
Projector native resolution	WXGA (1280x800)
Projector brightness (economic mode)	1800 ANSI lumens
Lamp power	250 W
Light source type	Lamp
Service life of light source	10000 h
Digital zoom	1.35 x
Focal length range	- mm
3D	No
Full HD	-
Supported video modes	480i, 480p, 576i, 720p, 1080i, 1080p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Microphone in	Yes
Audio (L/R) out	0
Composite video in	1
Serial interface type	RS-232C
USB 2.0 ports quantity	3
Noise level	37 dB
Noise level (economic mode)	30 dB
RMS rated power	16 W
Placement	Desktop, Ceiling
Product type	Ultra short throw projector
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.35 W
Power consumption (typical)	350 W
Sustainability certificates	RoHS
Remote control type	IR

Weight and Dimensions

Depth	360 mm
Width	377 mm
Height	136 mm
Weight	4300 g
