Hitachi CP-AW2505 User Manual

6
Introduction
Part names (continued)

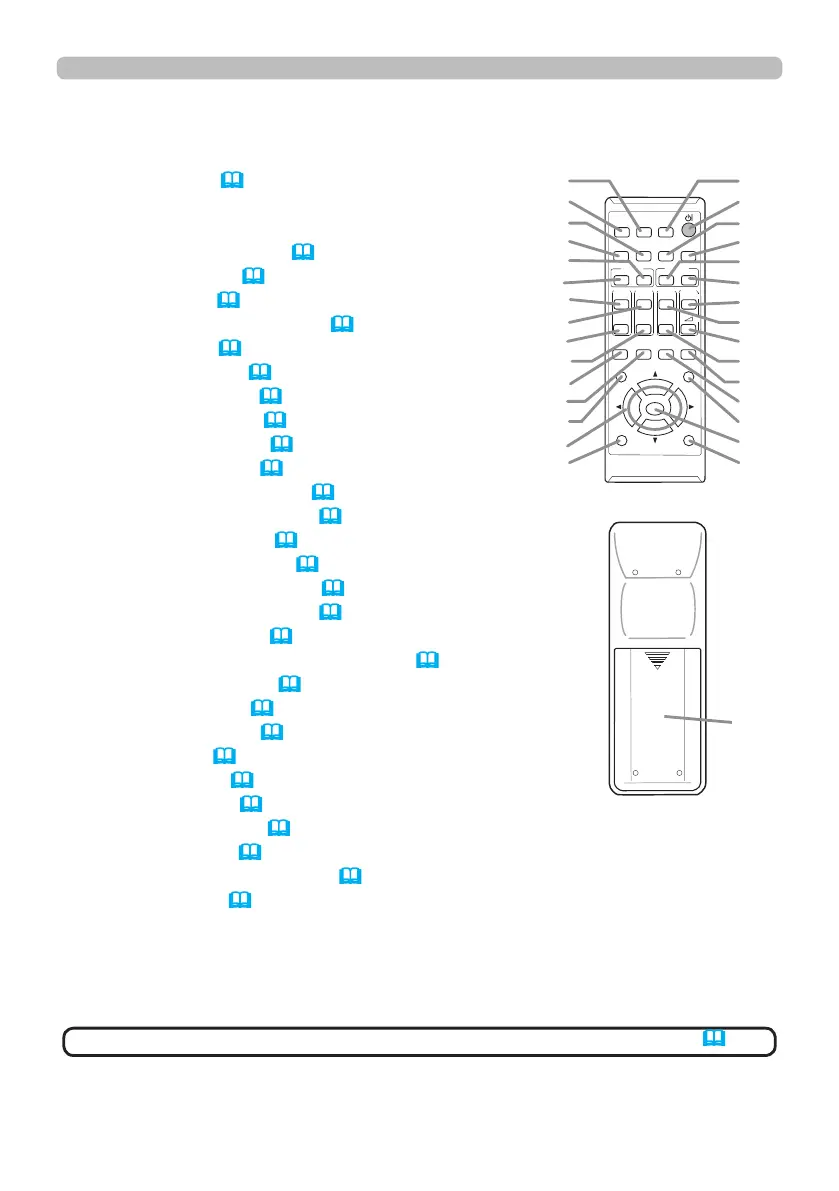

Remote control
(1) INPUT button (
24)
(2) IWB button *
(3) CALIBRATION button *
(4) STANDBY/ON button (20)
(5) ASPECT button (24)
(6) AUTO button (26)
(7) ACCENTUALIZER button (27)
(8) HDCR button (27)
(9) FOCUS - button (26)
(10) FOCUS + button (26)
(11) D-ZOOM - button (25)
(12) D-ZOOM + button (25)
(13) PAGE UP button (19)
(14) MAGNIFY - ON button (29)
(15) MY BUTTON - 1 button (62)
(16) VOLUME + button (23)
(17) PAGE DOWN button (19)
(18) MAGNIFY - OFF button (29)
(19) MY BUTTON - 2 button (62)
(20) VOLUME - button (23)
(21) KEYSTONE/PERFECT FIT button (28)
(22) TEMPLATE button (27)
(23) FREEZE button (30)
(24) AV MUTE button (23)
(25) ESC button (31)
(26) MENU button (31, 32)
(27) ENTER button (31, 32)
(28) POSITION button (28, 32)
(29) RESET button (31)
(30) ▲/▼/◄/► cursor buttons (31)
(31) Battery cover (17)
Back of
the remote control
(31)
CALIBRATION
KEYSTONE/
ASPECT
ACCENTUALIZER
HDCR
AV MUTE
POSITION
ESC MENU
RESET
IWB
AUTO
PAGE
DOWN
ON
OFF
FREEZE
UP
1
2
ENTER
FOCUS
-
+
D-ZOOM
-
+
＋
ー
VOLUME
MAGNIFY
MYBUTTON
INPUT
PERFECT FIT TEMPLATE
(2)
(1)
(6)
(5)
(10)
(9)
(13)
(14)
(17)
(18)
(21)
(22)
(25)
(30)
(28)
(3)
(4)
(7)
(8)
(11)
(12)
(16)
(15)
(20)
(19)
(24)
(23)
(26)
(27)
(29)
• Any button marked with “*” is not supported on this projector (106).NOTE

Hitachi CP-AW2505 Specifications

General

Matrix size	0.59 \
Matrix type	3-panel (p-Si TFT active)
Number of colors	16.78 million colors
Native aspect ratio	16:10
Projection distance	0.368 - 0.649 m
Projection technology	3LCD
Contrast ratio (typical)	10000:1
Screen size compatibility	60 - 100 \
Projector native resolution	WXGA (1280x800)
Projector brightness (economic mode)	1800 ANSI lumens
Lamp power	250 W
Light source type	Lamp
Service life of light source	10000 h
Digital zoom	1.35 x
Focal length range	- mm
3D	No
Full HD	-
Supported video modes	480i, 480p, 576i, 720p, 1080i, 1080p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Microphone in	Yes
Audio (L/R) out	0
Composite video in	1
Serial interface type	RS-232C
USB 2.0 ports quantity	3
Noise level	37 dB
Noise level (economic mode)	30 dB
RMS rated power	16 W
Placement	Desktop, Ceiling
Product type	Ultra short throw projector
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.35 W
Power consumption (typical)	350 W
Sustainability certificates	RoHS
Remote control type	IR

Weight and Dimensions

Depth	360 mm
Width	377 mm
Height	136 mm
Weight	4300 g
