5

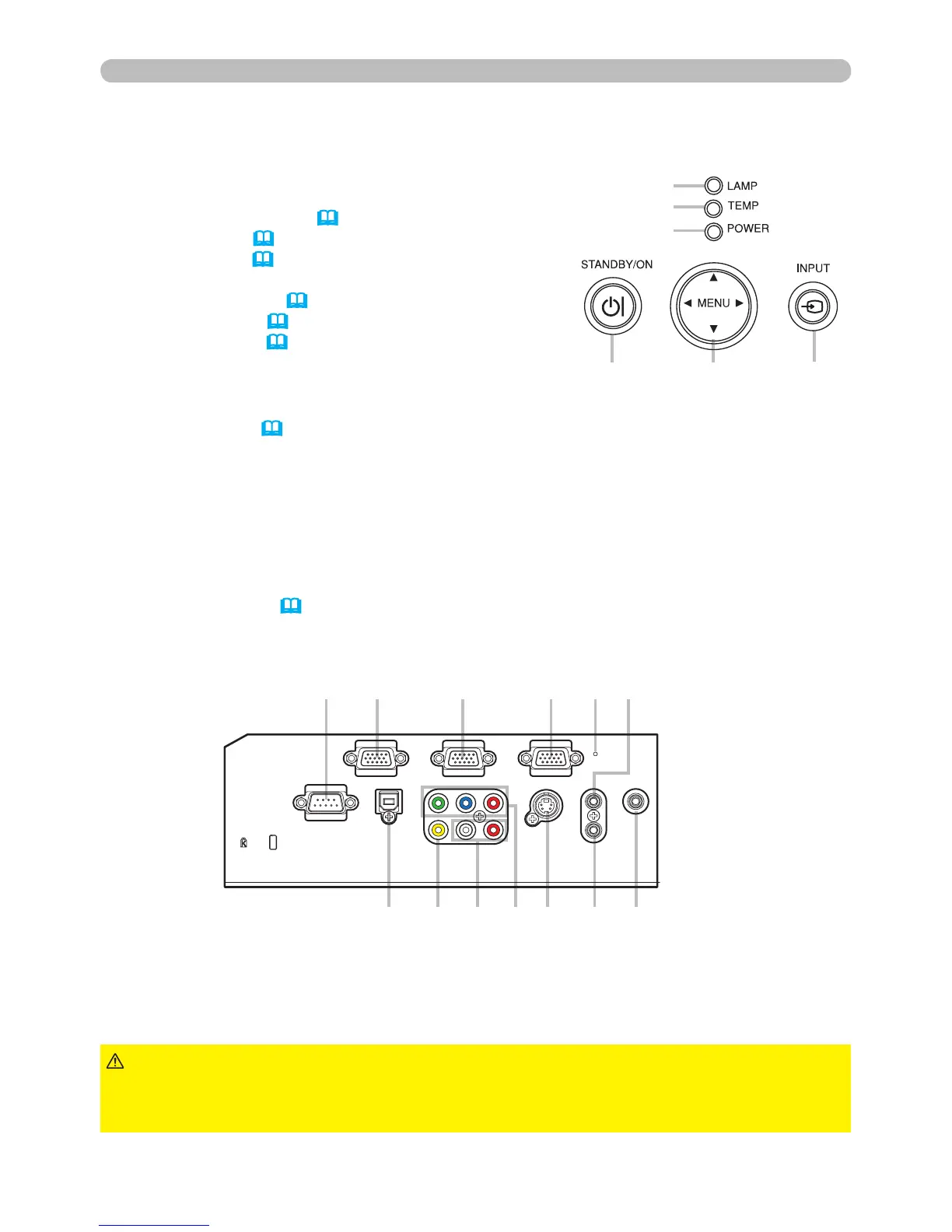

Part names
Control panel
(1) STANDBY/ON button (14)
(2) INPUT button (15, 21)
(3) MENU button (
21)
It consists of four cursor buttons.
(4) POWER indicator (14, 60)
(5) TEMP indicator (60)
(6) LAMP indicator (60)
Rear panel (9)
(1) AUDIO IN1 port
(2) AUDIO IN2 port
(3) AUDIO OUT port
(4) COMPUTER IN1 port
(5) COMPUTER IN2 port
(6) MONITOR OUT port
(7) Shutdown switch (61)
►Use the shutdown switch only when the projector is not
turned off by normal procedure, since pushing this switch stops operation of the
projector without cooling it down.
CAUTION
(8) CONTROL port
(9) USB port
(10) COMPONENT
(Y, Cb/Pb, Cr/Pr) ports
(11) VIDEO port
(12) S-VIDEO port
(13) AUDIO IN3 (L,R) ports
(1) (2)(3)
(4)
(6)
(5)
(8) (4) (5) (6) (7)
(9) (13) (12) (3)(11) (10) (2)
(1)
