Hitachi CP-X417 Technical Manual

5
BATTERY
SD CARD
DC 5V 0.5A
USB STORAGE
LAN
AUDIO IN3
CONTROL
AUDIO OUT
COMPUTER IN1
COMPUTER IN2
MONITOR OUT
HDMI
AUDIO IN
S-VIDEO
USB

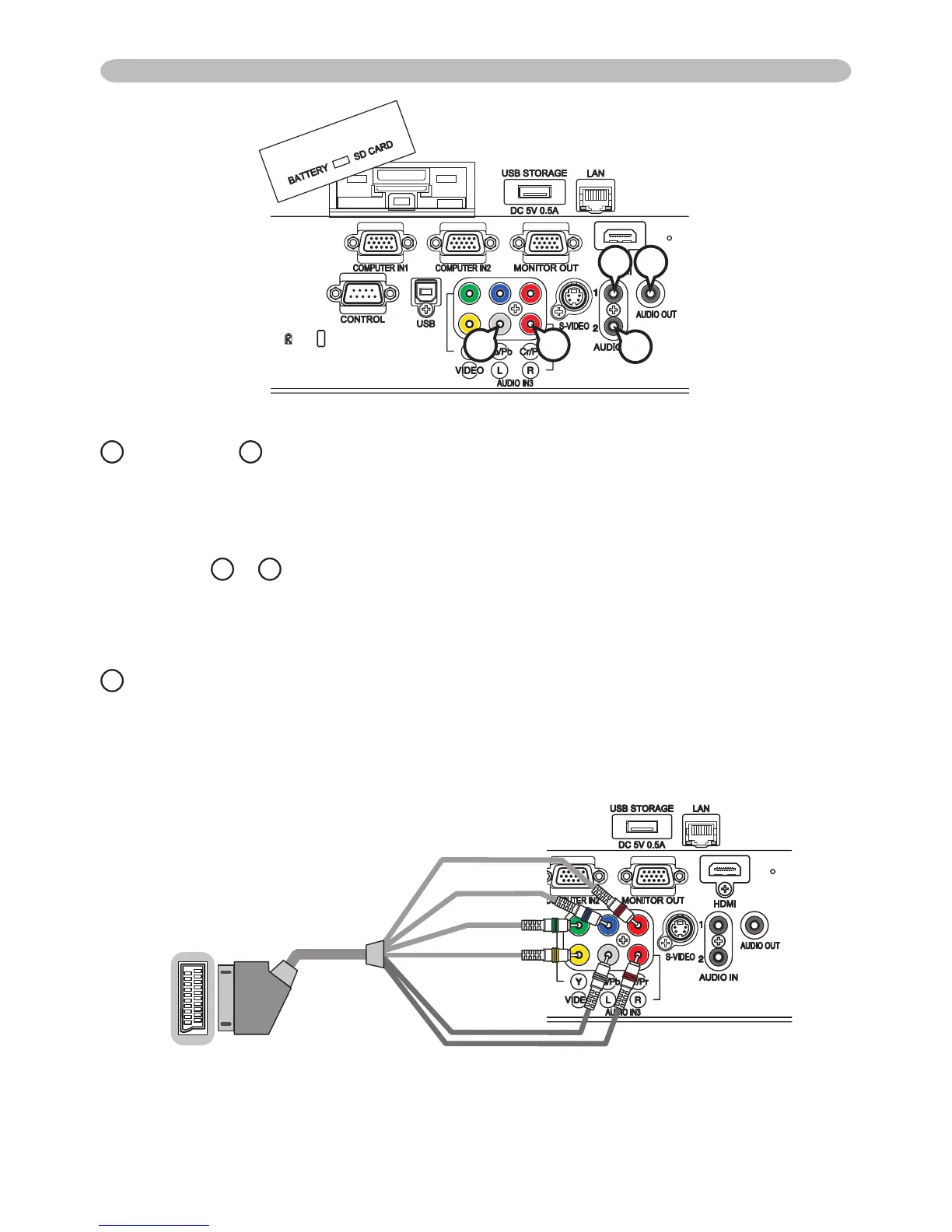

Connection to the ports (continued)
J
AUDIO IN1,
K
AUDIO IN2
Ø3.5 stereo mini jack
• 200 mVrms 47kΩ terminator
AUDIO IN3
L
L,
M
R
RCA jack x2
• 200 mVrms 47kΩ terminator
N
AUDIO OUT
Ø3.5 stereo mini jack
• 200 mVrms 1kΩ output impedance
To input SCART RGB signal;
ex.:
To input SCART RGB signal to the projector, use a SCART to RCA cable.
Connect the plugs refer to above ex.. For more reference, please consult your dealer.
SCART connector
(jack)
SCART cable
(plug)
RCA plugs
DC 5V 0.5A
USB STORAGE
LAN
AUDIO IN3
AUDIO OUT
COMPUTER IN2
MONITOR OUT
HDMI
AUDIO IN
S-VIDEO
㪭㫀㪻㪼㫆
㪩
㪙
㪞
㪘㫌㪻㫀㫆㩷㪣
㪘㫌㪻㫀㫆㩷㪩
L
M
NJ
K
