Hitachi CP-X417 Technical Manual

6
BATTERY
SD CARD
DC 5V 0.5A
USB STORAGE
LAN
AUDIO IN3
CONTROL
AUDIO OUT
COMPUTER IN1
COMPUTER IN2
MONITOR OUT
HDMI
AUDIO IN
S-VIDEO
USB

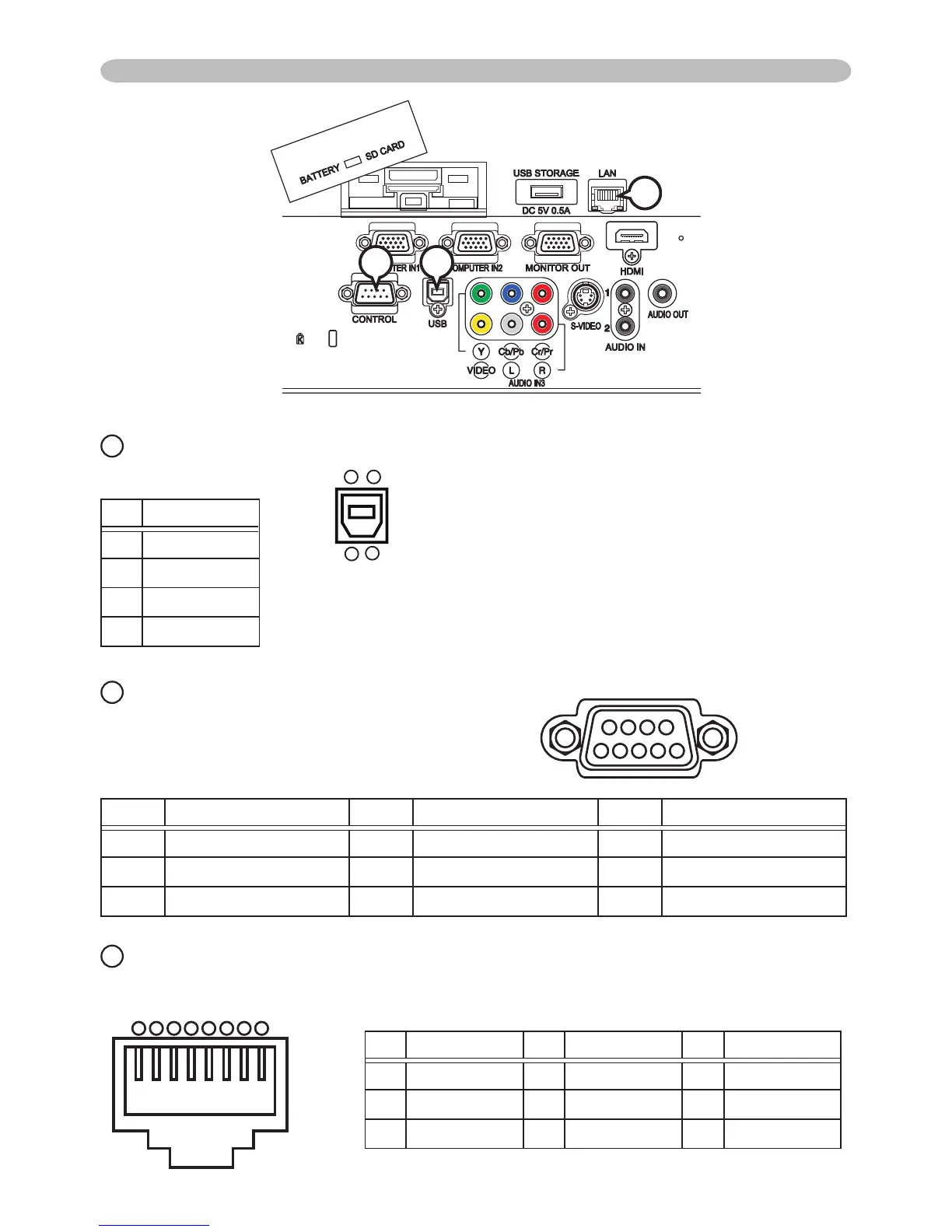

Connection to the ports (continued)
O
USB
USB B type jack
Pin Signal
1 +5V
2 - Data
3 + Data
4 Ground
2
1
34
P
CONTROL
D-sub 9pin plug
• About the details of RS-232C communication,
please refer to the following page.
Pin Signal Pin Signal Pin Signal
1 (No connection) 4 (No connection) 7 RTS
2 RD 5 Ground 8 CTS
3 TD 6 (No connection) 9 (No connection)
9
12345
678
Q
LAN
RJ-45 jack
Pin Signal Pin Signal Pin Signal
1 TX + 4 - 7 -
2 TX - 5 - 8 -
3 RX + 6 RX - - -
87654
3
21
Q
O
P
