Hitachi CP-X417 Technical Manual

7
BATTERY
SD CARD
DC 5V 0.5A
USB STORAGE
LAN
AUDIO IN3
CONTROL
AUDIO OUT
COMPUTER IN1
COMPUTER IN2
MONITOR OUT
HDMI
AUDIO IN
S-VIDEO
USB

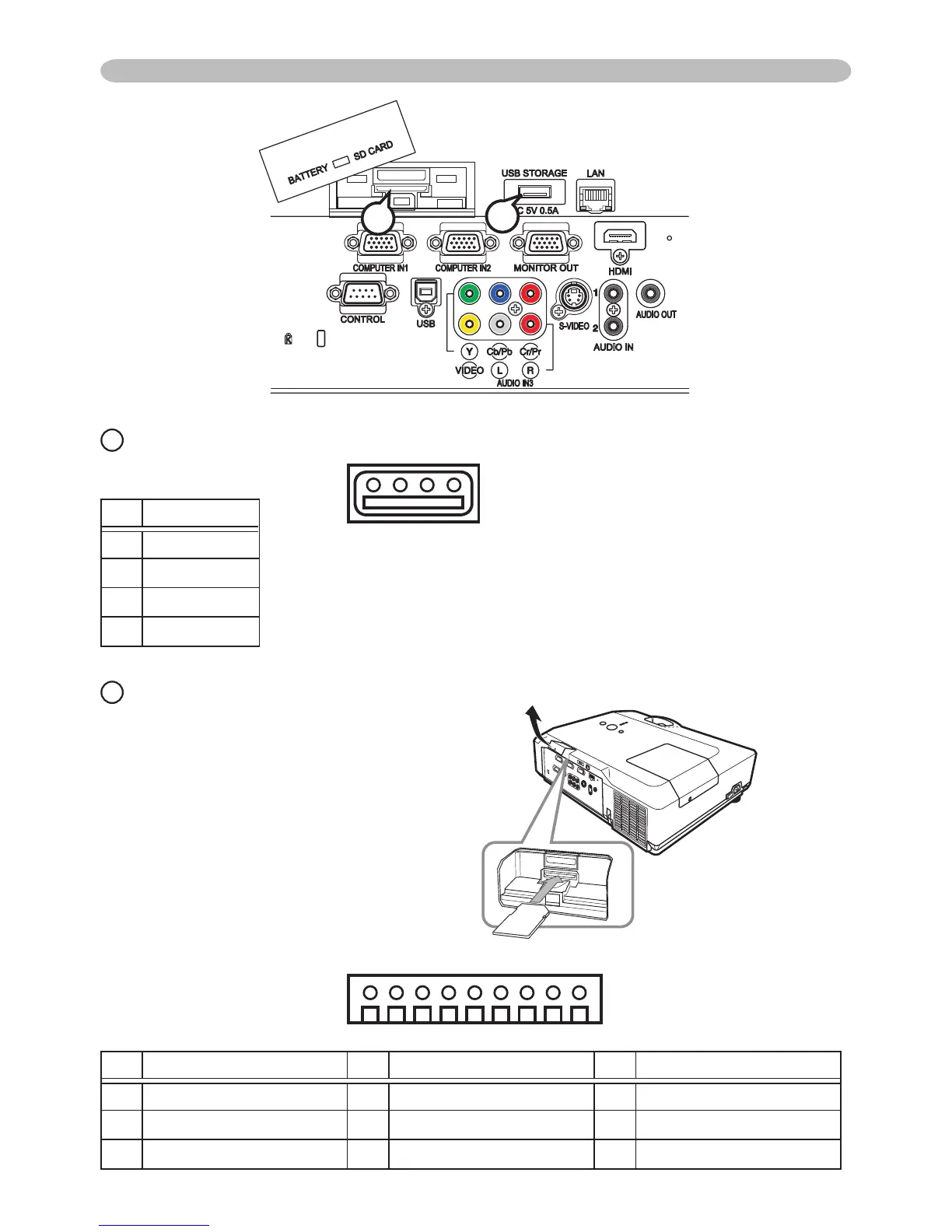

Connection to the ports (continued)
R
USB STORAGE
USB A type jack
4
3
2 1
Pin Signal
1 +5V
2 - Data
3 + Data
4 Ground
S
SD card slot
SD card slot
Pin Signal Pin Signal Pin Signal
1 CD/DAT 3 4 VDD 7 DAT 0
2 CMD 5 CLK 8 DAT 1
3 VSS 6 VSS 9 DAT 2
9 8 7 6 5 4 3 2 1
S
R
