Hitachi CP-X615 Operating Guide

6
VIDEO
CONTROL
AUDIO IN 1
AUDIO IN 2
AUDIO OUT
RGB
OUT
RGB1
RGB2
HDMI
R L R L
AUDO IN 3 AUDIO IN 4
LAN
CB/PB
Y
CR/PR
B/CB/PB
B/CR/PR
G/Y
H
V
USB
REMOTE
CONTROL

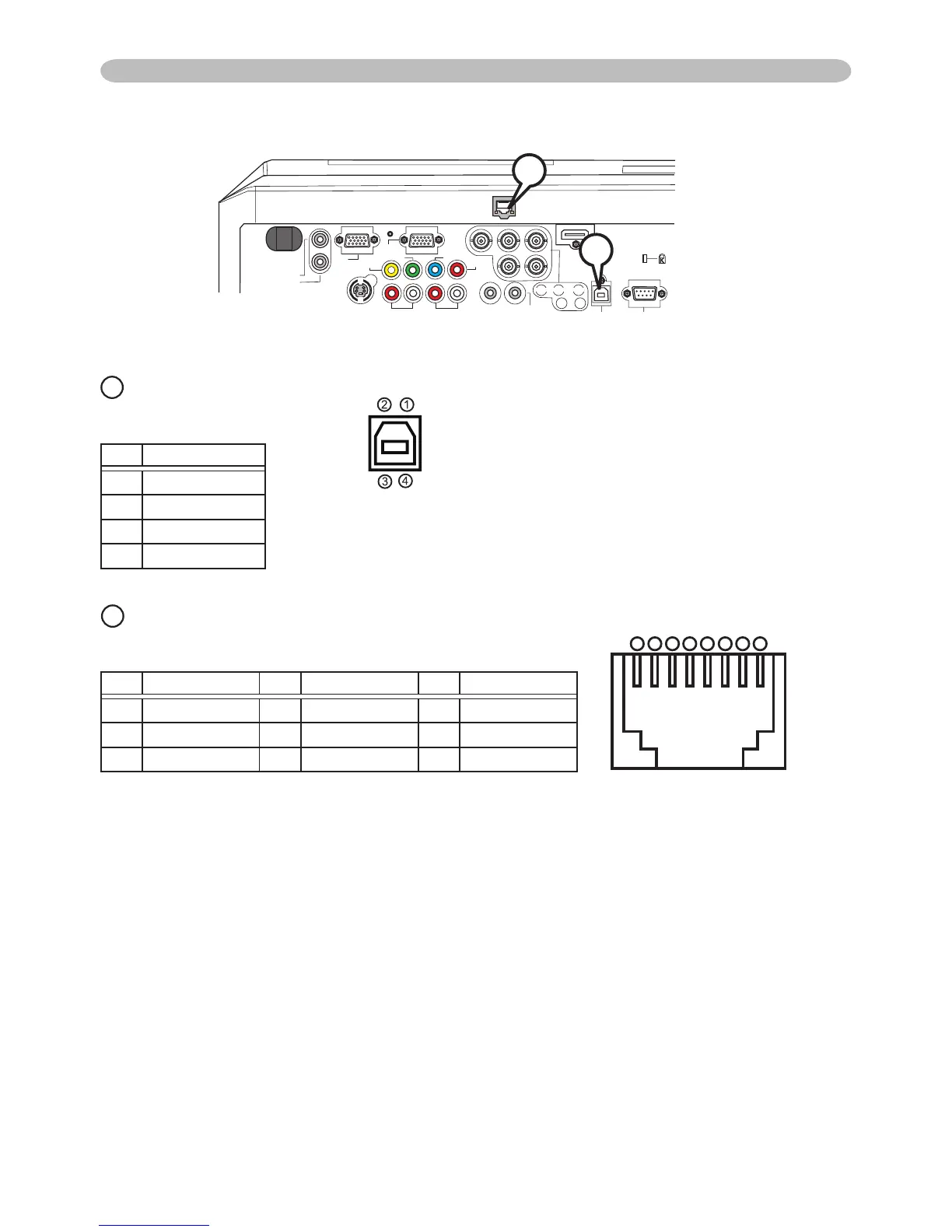

Connection to the ports (continued)
T
LAN
RJ-45 jack
Pin Signal Pin Signal Pin Signal
1 TX+ 4 - 7 -
2 TX- 5 - 8 -
3 RX+ 6 RX-
87654
3
21
T
S
S
USB
USB B type jack
Pin Signal
1 +5V
2 - Data
3 + Data
4 Ground
