5

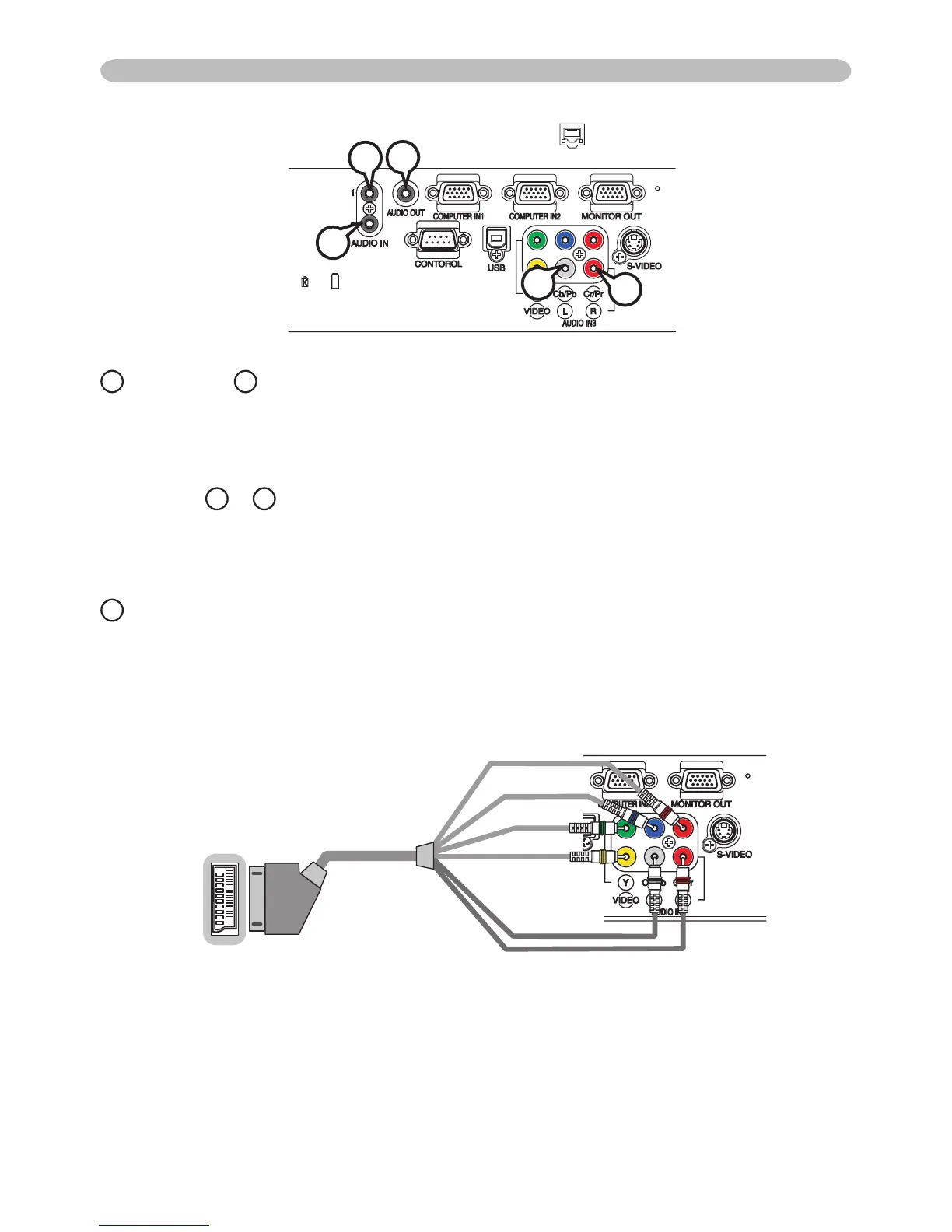

Connection to the ports (continued)
I
AUDIO IN1,
J
AUDIO IN2
Ø3.5 stereo mini jack
• 200 mVrms 47kΩ terminator
AUDIO IN3
K
L,
L
R
RCA jack x2
• 200 mVrms 47kΩ terminator
M
AUDIO OUT
Ø3.5 stereo mini jack
• 200 mVrms 1kΩ output impedance
To input SCART RGB signal;
ex.:
LAN
I
J
M
K
L
To input SCART RGB signal to the projector, use a SCART to RCA cable.
Connect the plugs refer to above ex.. For more reference, please consult your dealer.
㪭㫀㪻㪼㫆
㪩
㪙
㪞
㪘㫌㪻㫀㫆㩷㪣
㪘㫌㪻㫀㫆㩷㪩
SCART connector
(jack)
SCART cable
(plug)
RCA plugs
