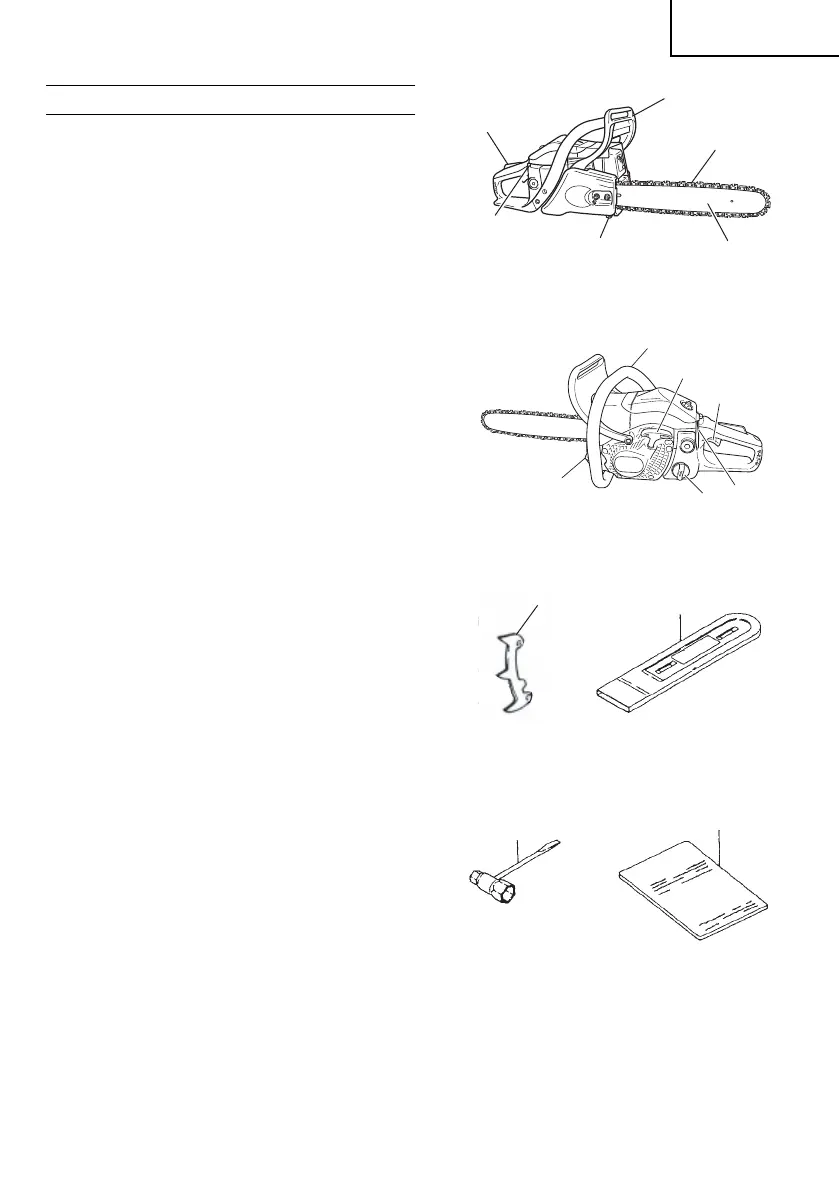

WHAT IS WHAT?
1. Throttle trigger: Device activated by the
operatorʼs fi nger, for controlling the engine
speed.
2. Throttle trigger lockout (Safety trigger): Device
that prevents the accidental operation of the
throttle trigger until manually released.
3. Ignition switch: Device for allowing the engine to
be started or stopped.
4. Oil tank cap: For closing the oil tank.
5. Recoil starter: Pull handle to start the engine.
6. Front handle: Support handle located at or
towards the front of the engine housing.
7. Fuel tank cap: For closing the fuel tank.
8. Choke control knob: Device for enriching the
fuel/air mixture in the carburetor, to aid starting.
9. Guide bar: The part that supports and guides the
saw chain.
10. Saw chain: Chain, serving as a cutting tool.
11. Chain brake (Front hand guard): Device for
stopping or locking the chain.
12. Spiked bumper (optional): Device for acting as a
pivot when in contact with a tree or log.
13. Chain catcher: device for restraining the saw
chain.
14. Guide bar cover: Device for covering the guide
bar and saw chain when the unit is not being
used.
15. Combi box spanner: The tool for removing or
installing a spark plug and tensioning the saw
chain.
16. Handling instructions: Included with unit. Read
before operation and keep for future reference to
learn proper, safe techniques.
11
10
9
13
8
2
6
5
1
3
7
4
14
12
15
16
3
English
