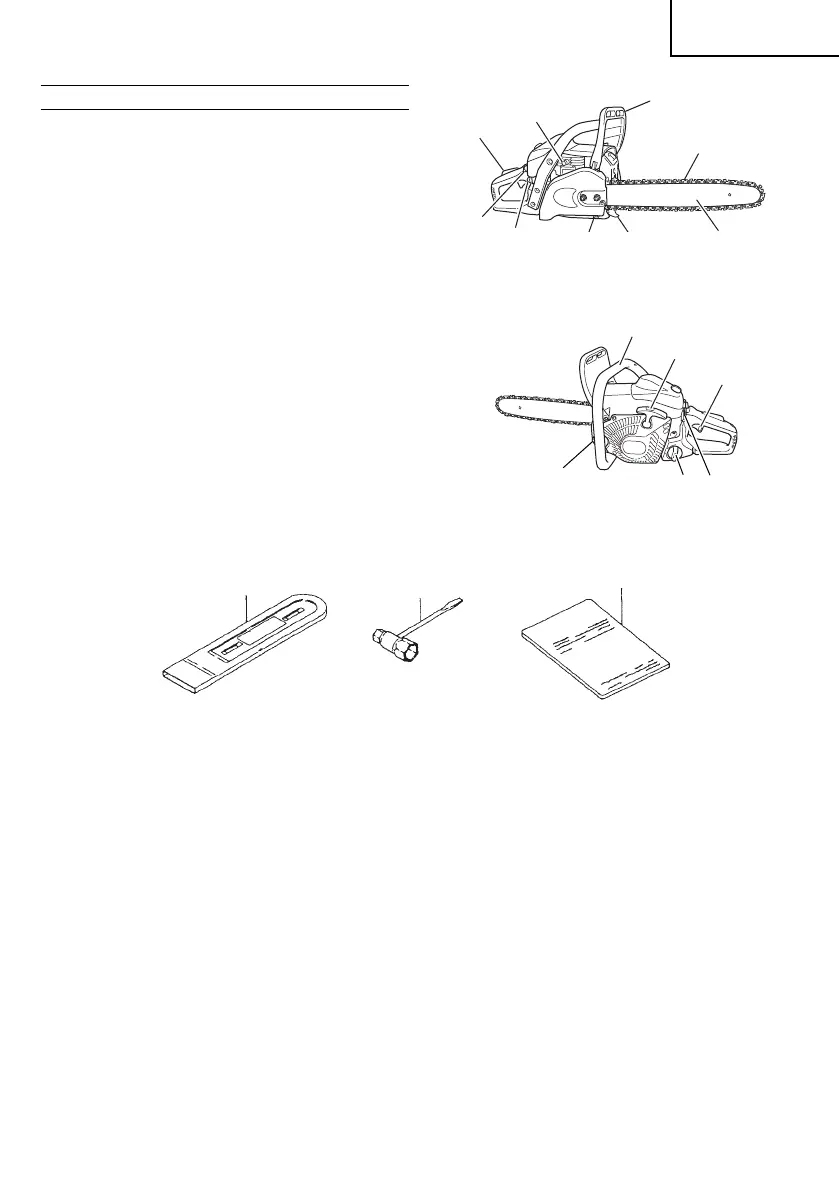

WHAT IS WHAT?
1. Throttle lever: Device activated by the operatorʼsnger, for
controlling the engine speed.
2. Throttle lever lockout: Device that prevents the accidental
operation of the throttle lever until manually released.
3. Stop switch: Device for allowing the engine to be started or
stopped.
4. Oil tank cap: For closing
the oil tank.
5. Recoil starter: Pull handle to start the engine.
6. Front handle: Support handle located at or towards the front of
the engine housing.
7. Fuel tank cap: For closing the fuel tank.
8. Choke lever: Device for enriching the fuel/air mixture in the
carburetor, to aid
starting.
9. Priming pump; Device for supplying extra fuel, to aid starting.
10. Decompression valve: Device for reducing the compression
pressure to aid starting.
11. Guide bar: The part that supports and guides the saw chain.
12. Saw chain: Chain, serving as a cutting tool.
13. Chain brake (Front hand guard):
Device for stopping or locking
the chain.
14. Spiked bumper: Device for acting as a pivot when in contact with
a tree or log.
15. Chain catcher: Device for restraining the saw chain.
16. Guide bar cover: Device for covering the guide bar and saw
chain when the unit is not
being used.
17. Combi box spanner: The tool for removing or installing a spark
plug and tensioning the saw chain.
18. Handling instructions: Included with unit. Read before operation
and keep for future reference to learn proper, safe techniques.
15
16
16
17
17
18
13
12
11
14
8
2
9
15
10
6
5
1
37
4
000BookCS51EAPWE.indb7000BookCS51EAPWE.indb7 2012/03/1616:01:202012/03/1616:01:20
