Hitachi CS 51EAP - Adjustment of clearance between the magneto rotor and ignition coil

-13-

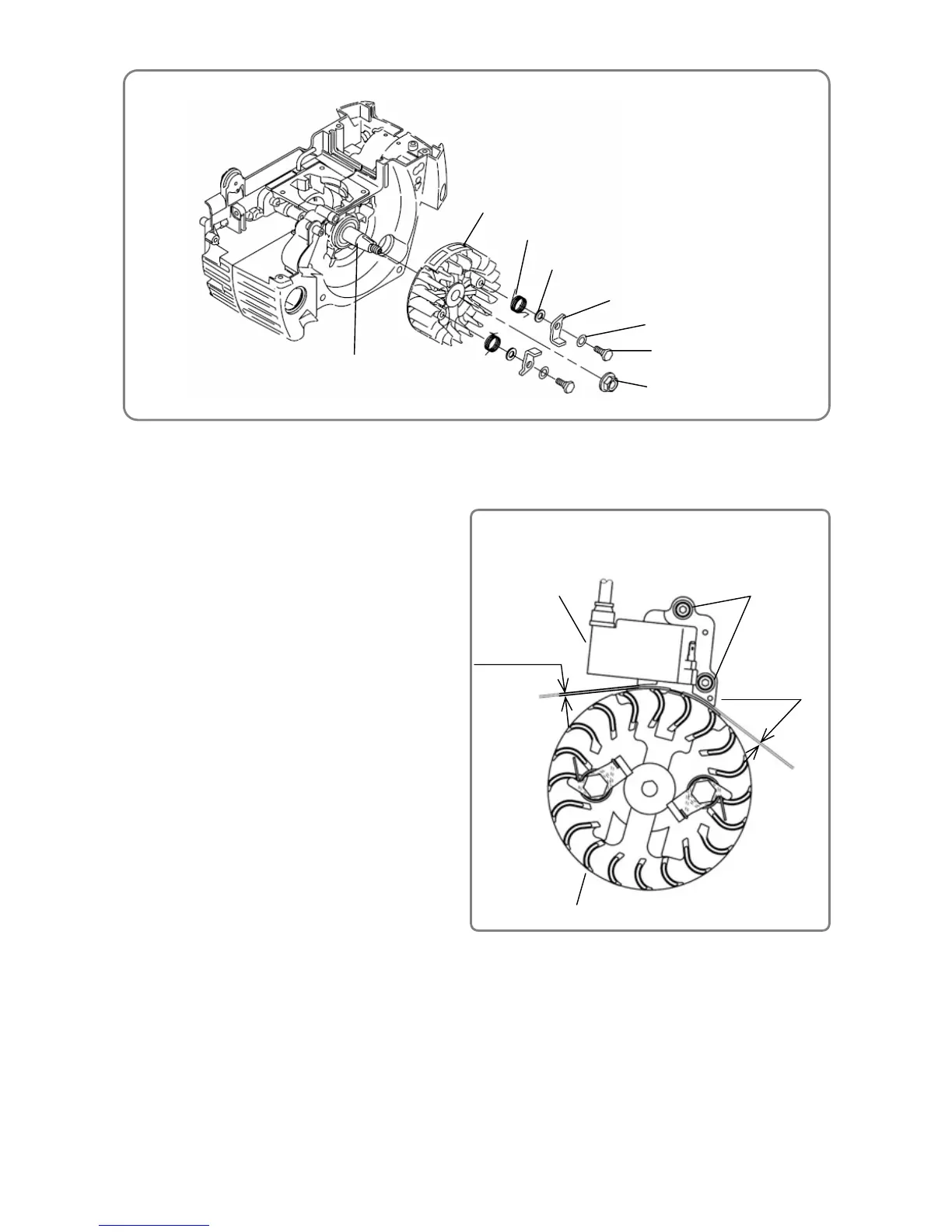

Ɣ Magneto rotor
Magneto Rotor [169]
Starter Pawl Spring [170]
Washer 0.8 [171]
Starter Pawl [172]
Shim [173]
Step Bolt [174]
Flange Nut M8 [112]
Crank Shaft [83]
7. Adjustment of clearance between the magneto rotor and ignition coil
(1) Loosen the Hex. Socket Hd. Bolt (W/Flange)
M4 x 18 [167] so as to temporarily secure
the Ignition Coil [166].
(2) Insert a 0.3-mm thickness gauge between
the Ignition Coil [166] and the perimeter of
the Magneto Rotor [169].
(3) Under this condition, firmly tighten the Hex.
Socket Hd. Bolt (W/Flange) M4 x 18 [167].
Ɣ Adjustment of clearance between the magneto rotor and
ignition coil
Magneto Rotor [169]
0.2 to 0.4 mm
0.2 to 0.4 mm
Hex. Socket Hd. Bolt
(W/Flange) M4 x 18 [167]
Ignition Coil [166]
