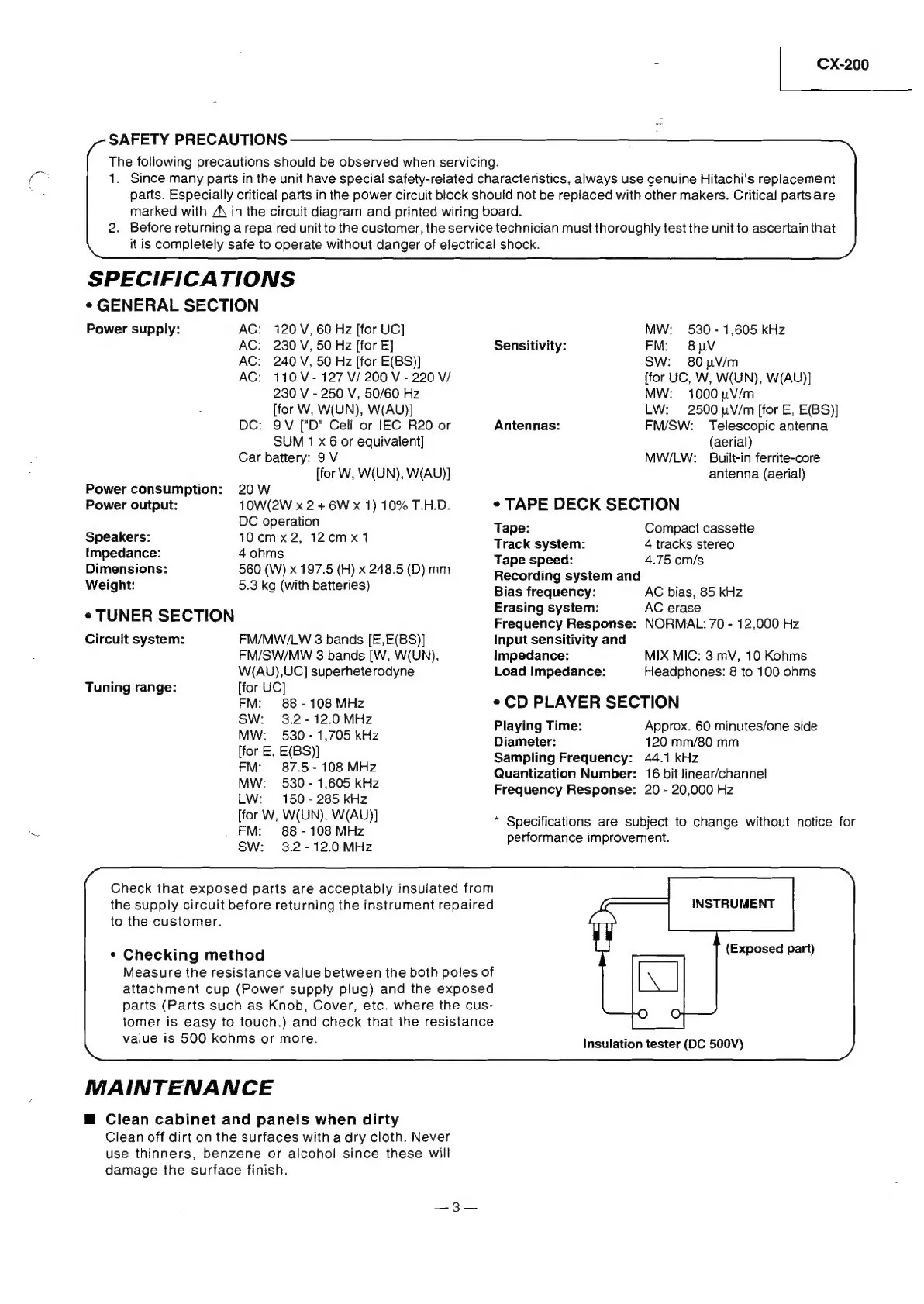

SAFETY PRECAUTIONS
The following precautions should be observed when servicing.
1. Since many parts in the unit have special safety-related characteristics, always use genuine Hitachi’s replacement
parts. Especially critical parts in the power circuit block should not be replaced with other makers. Critical parts are
marked with A\ in the circuit diagram and printed wiring board.
. Before returning a repaired unit to the customer, the service technician must thoroughly test the unit to ascertain that
it is completely safe to operate without danger of electrical shock.
SPECIFICATIONS
* GENERAL SECTION
Power supply: AC: 120 V, 60 Hz [for UC]
AC: 230 V, 50 Hz [for E]
AC: 240 V, 50 Hz [for E(BS)]
AC: 110 V- 127 V/ 200 V - 220 V/
230 V - 250 V, 50/60 Hz
[for W, W(UN), W(AU)]
DC: 9V ["D" Cell or IEC R20 or
SUM 1 x 6 or equivalent]
Car battery: 9 V
[for W, W(UN), W(AU)]
Power consumption: 20W
Power output: 1OW(2W x 2+ BW x 1) 10% T.H.D.
DC operation
Speakers: 10cemx 2, 12cmx 1
Impedance: 4 ohms
Dimensions: 560 (W) x 197.5 (H) x 248.5 (D) mm
Weight: 5.3 kg (with batteries)
¢ TUNER SECTION
FM/MW/LW 3 bands [E,E(BS)]
FM/SW/MW 3 bands [W, W(UN),
W(AU),UC] superheterodyne
[for UC]
FM: 88-108 MHz
SW: 3.2 - 12.0 MHz
MW: 530 - 1,705 kHz
[for E, E(BS)]
FM: 87.5 - 108 MHz
MW: 530 - 1,605 kHz
LW: 150 - 285 kHz
[for W, W(UN), W(AU)]
FM: 88 - 108 MHz
SW: 3.2 - 12.0 MHz
Circuit system:
Tuning range:
MW: 530 - 1,605 kHz
Sensitivity: FM: 8uV
SW: 80uV/m
[for UC, W, W(UN), W(AU)]
MW: 1000 nV/m
LW: 2500 pV/m [for E, E(BS)]
Antennas: FM/SW: Telescopic antenna
(aerial)
MW/LW: Built-in ferrite-core
antenna (aerial)
¢ TAPE DECK SECTION
Tape: Compact cassette
Track system: 4 tracks stereo
Tape speed: 4.75 cm/s
Recording system and
Bias frequency: AC bias, 85 kHz
Erasing system: AC erase
Frequency Response: NORMAL: 70 - 12,000 Hz
Input sensitivity and
Impedance:
Load Impedance:
«CD PLAYER SECTION
Playing Time: Approx. 60 minutes/one side
Diameter: 120 mm/80 mm
Sampling Frequency: 44.1 kHz
Quantization Number: 16 bit linear/channel
Frequency Response: 20 - 20,000 Hz
MIX MIC: 3 mV, 10 Kohms
Headphones: 8 to 100 ohms
* Specifications are subject to change without notice for
performance improvement.
Check that exposed parts are acceptably insulated from
the supply circuit before returning the instrument repaired
to the customer.
¢ Checking method
INSTRUMENT
(Exposed part)
Measure the resistance value between the both poles of
attachment cup (Power supply plug) and the exposed
parts (Parts such as Knob, Cover, etc. where the cus-
tomer is easy to touch.) and check that the resistance
value is 500 kohms or more.
MAINTENANCE
M@ Clean cabinet and panels when dirty
Clean off dirt on the surfaces with a dry cloth. Never
use thinners, benzene or alcohol since these will
damage the surface finish.
Insulation tester (DC 500V)
