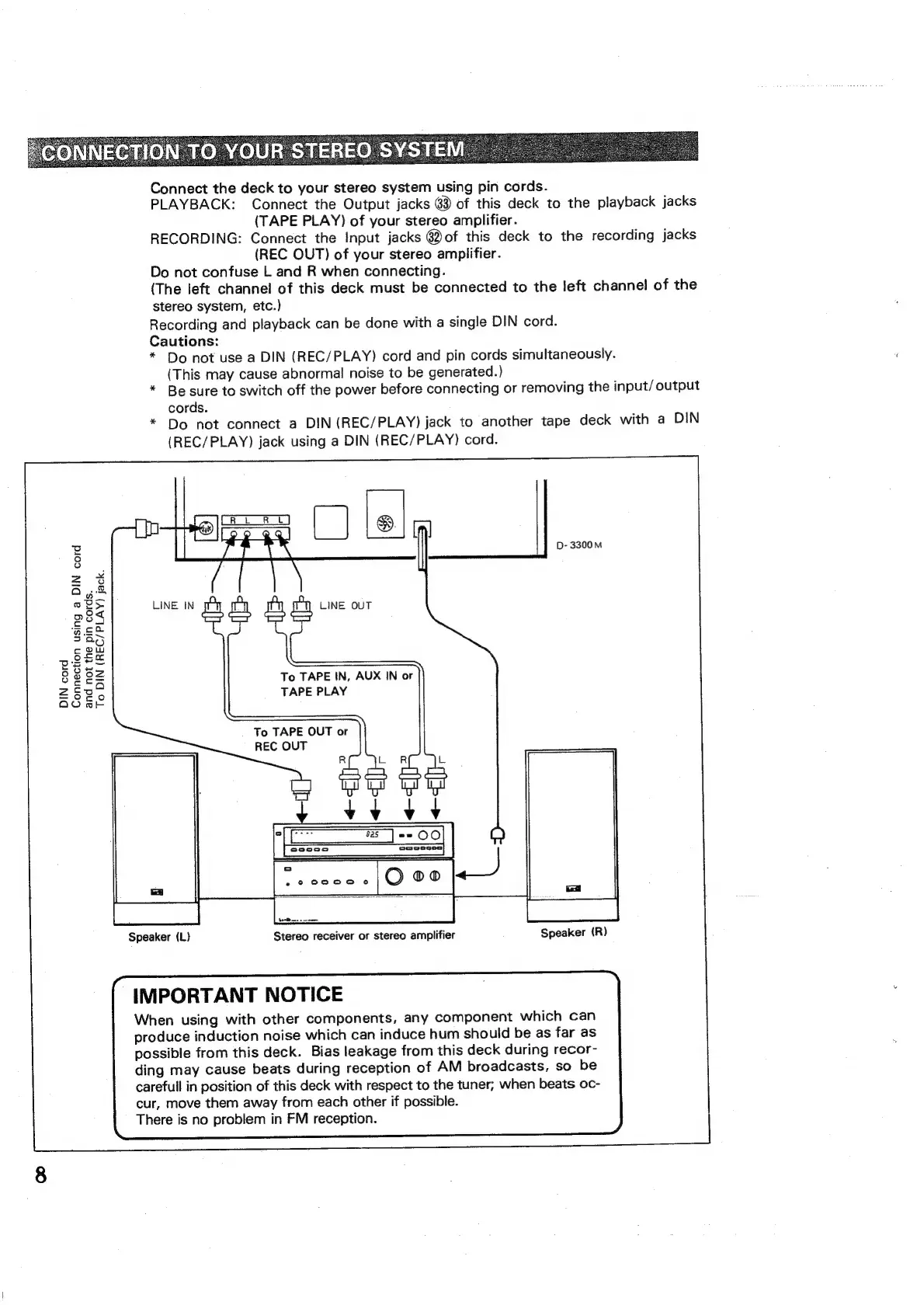

Connect the deck to your stereo system using pin cords.
PLAYBACK:
Connect
the
Output
jacks
83)
of
this
deck
to
the
playback
jacks
(TAPE PLAY) of your stereo amplifier.
RECORDING:
Connect
the
Input
jacks
@2of
this
deck
to
the
recording
jacks
(REC OUT) of your stereo amplifier.
Do not confuse L and R when connecting.
(The
left
channel
of
this
deck
must
be
connected
to
the
left
channel
of
the
stereo system, etc.)
Recording
and
playback
can
be
done
with
a
single
DIN
cord.
Cautions:
*
Do
not
use
a
DIN
(REC/PLAY)
cord
and
pin
cords
simultaneously.
(This may cause abnormal noise to be generated.)
*
Be
sure
to
switch
off
the
power
before
connecting
or
removing
the
input/output
cords.
*
Do
not
connect
a
DIN
(REC/PLAY)
jack
to
another
tape
deck
with
a
DIN
(REC/PLAY)
jack
using
a
DIN
(REC/PLAY)
cord.
LINE IN LINE OUT
To TAPE IN, AUX IN or
TAPE PLAY
Connection using a DIN cord
and not the pin cords.
To DIN (REC/PLAY) jack.
DIN cord
To TAPE OUT or
REC OUT
Speaker
(L)
Stereo
receiver
or
stereo
amplifier
Speaker
(R)
IMPORTANT NOTICE
When
using
with
other
components,
any
component
which
can
produce
induction
noise
which
can
induce
hum
should
be
as
far
as
possible
from
this
deck.
Bias
leakage
from
this
deck
during
recor-
ding
may
cause
beats
during
reception
of
AM
broadcasts,
so
be
carefull
in
position
of
this
deck
with
respect
to
the
tuner,
when
beats
oc-
cur,
move
them
away
from
each
other
if possible.
There
is no
problem
in
FM
reception.
