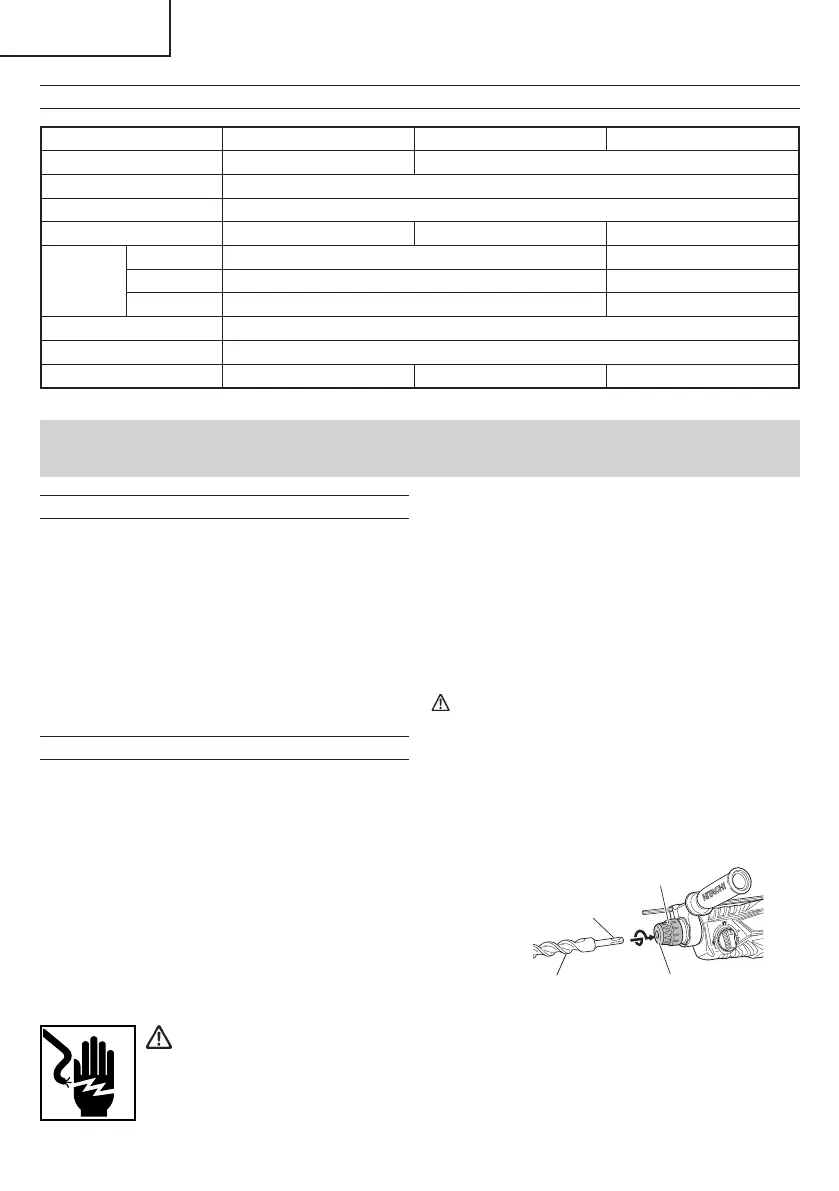

SPECIFICATIONS
Model Name DH26PC DH26PF DH28PFY
Type of Handle Gun-type Handle D-type Handle
Motor Single-Phase, Series Commutator Motor
Power Source Single-Phase, 120 V 60 Hz
Current 7.3 A 7.5 A 8.0 A
Capacity
Concrete 1/8" – 1" (3.4 mm – 26 mm) 1/8" – 1-1/8" (3.4 mm – 28 mm)
Steel 1/2" (13 mm) 1/2" (13 mm)
Wood 1-1/4" (32 mm) 1-1/4" (32 mm)
No-Load Speed 0 – 1,100 /min.
Full-load Blow 0 – 4,300 /min.
Weight 6.2 lbs (2.8 kg) 6.7 lbs (3.0 kg) 6.9 lbs (3.1 kg)
APPLICATIONS
Rotation and hammering function
○ Drilling anchor holes
○ Drilling holes in concrete
○ Drilling holes in tile
Rotation only function
○ Drilling in steel or wood (with optional accessories).
○ Tightening machine screws, wood screws (with
optional accessories).
Hammering only function
○ Light-duty chiselling of concrete, groove digging
and edging.
PRIOR TO OPERATION
1. Power source
Ensure that the power source to be utilized conforms
to the power source requirements specifi ed on the
product nameplate.
2. Power switch
Ensure that the switch is in the OFF position. If the
plug is connected to a receptacle while the switch is
in the ON position, the power tool will start operating
immediately and can cause serious injury.
3. Extension cord
When the work area is far away from the power source,
use an extension cord of suffi cient thickness and rated
capacity. The extension cord should be kept as short
as practicable.
WARNING
Damaged cord must be replaced
or repaired.
4. Check the receptacle
If the receptacle only loosely accepts the plug, the
receptacle must be repaired. Contact a licensed
electrician to make appropriate repairs.
If such a faulty receptacle is used, it may cause
overheating, resulting in a serious hazard.
5. Confi rming condition of the environment
Confi rm that the work site is placed under appropriate
conditions conforming to prescribed precautions.
6. Mounting the drill bit (Fig. 2)
CAUTION
● Be sure to switch power OFF and disconnect the
plug from the receptacle.
● For tools such as a drill bit and a bull point, use
only Hitachi genuine parts.
(1) Clean the shank portion of the drill bit.
(2) Insert the drill bit in a twisting manner into the tool holder
until it latches 0itself. (Fig. 2)
Drill bit
Part of SDS-plus shank
Front cap
Grip
Fig. 2
(3) Check the latching by pulling on the drill bit.
ASSEMBLY AND OPERATION
