APPLICATIONS
䡬
Use as a drill
Drilling of soft steel, wood, plastic and aluminum
materials.
䡬
Use as a screwdriver
Tightening and loosening of machine screws,
wood screws and tapping screws.
REMOVAL AND INSTALLATION METHOD
OF BATTERY
䡬
How to install the battery.

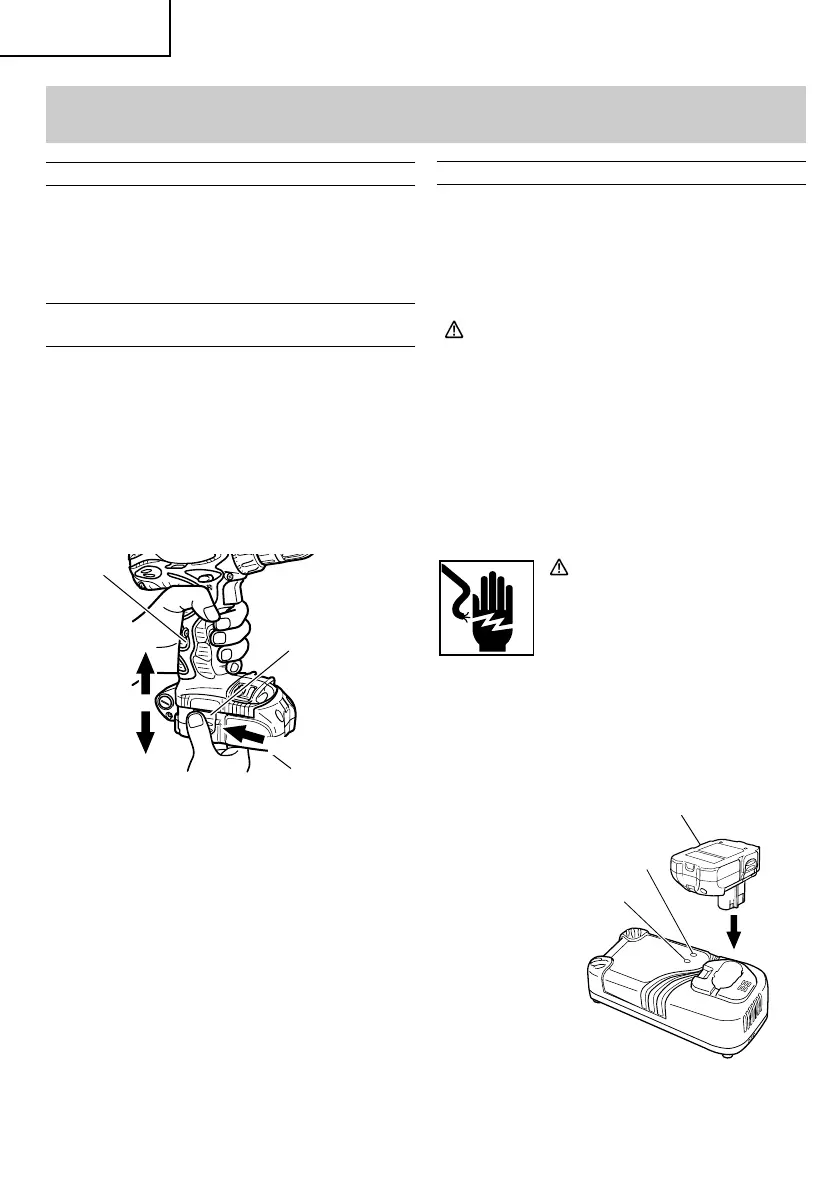

Align the battery with the groove in tool handle
and slip it into place.
Always insert it all the way until it locks in place
with a little click, If not, it may accidentally fall out
of the tool, causing injury to you or someone
around you (Fig. 4).
䡬
How to remove the battery.
Withdraw battery from the tool handle while
pressing the latch (2 pcs) of the battery (Fig. 4).
ASSEMBLY AND OPERATION
Fig. 4
Latch
Handle
Insert
Battery
Pull out
Push
CHARGING METHOD
NOTE:
Before plugging into the receptacle, make sure the
following points.
䡬
The power source voltage is stated on the
nameplate.
䡬
The cord is not damaged.
WARNING:
Do not charge at voltage higher than indicated on
the nameplate.
If charged at voltage higher than indicated on the
nameplate, the charger will burn out.
<UC18YGL, UC18YFL>
1. Insert the plug of battery charger into the
receptacle.
When the plug of battery charger has been inserted
into the receptacle, the charge status lamp will
blink in red. (At 1-second intervals)
WARNING:
Do not use the electrical cord if
damaged. Have it repaired
immediately.
2. Insert the battery to the battery charger.
Insert the battery into the battery charger as shown
in Fig. 5. Make sure it contacts the bottom of the
battery charger.
Battery
Charge status
lamp (red)
Overheat lamp (green)
Fig. 5
