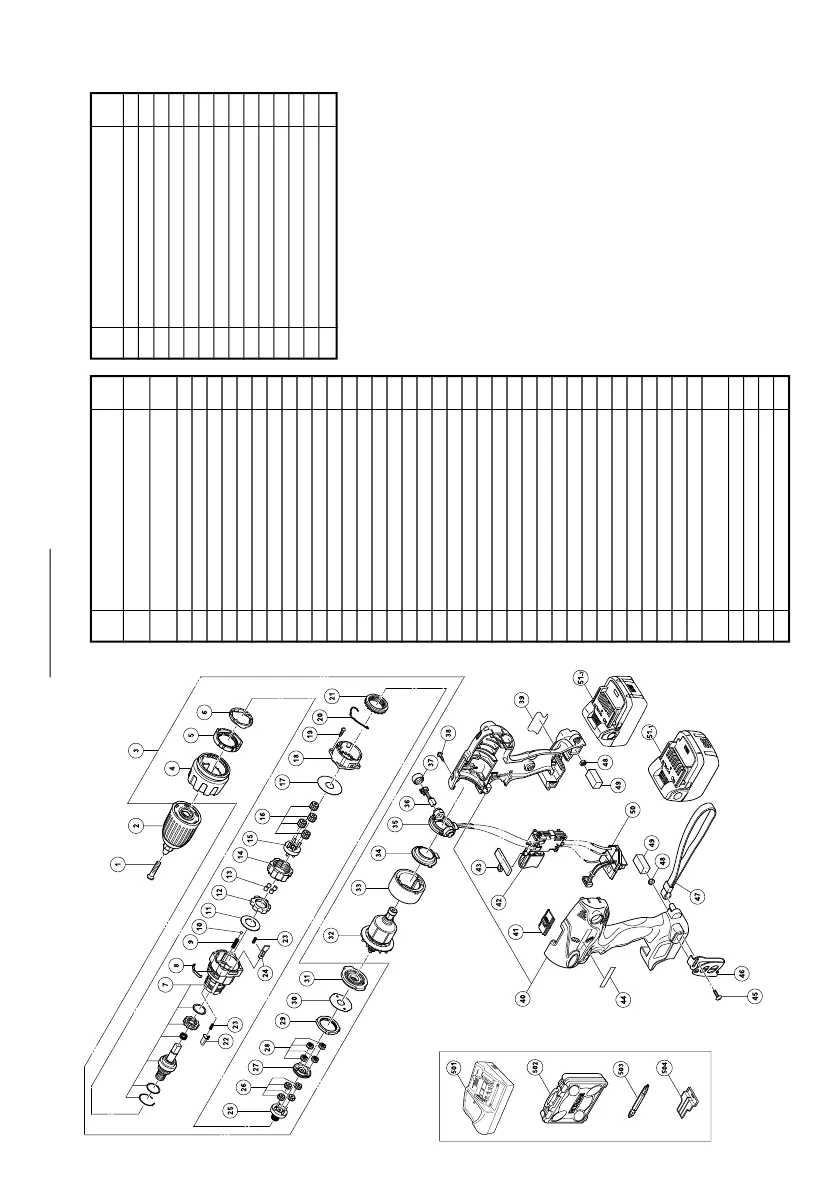

DV14DSL/DV18DSL
ITEM
NO.
PART NAME Q’TY
1
SPECIAL SCREW (LEFT HAND)
1
M6 × 23
2
DRILL CHUCK 13VLRG-N
(W/O CHUCK WRENCH)
1
3 GEAR BOX ASS’Y 1
4 CLUTCH DIAL 1
5 NUT 1
6 PLATE (A) 1
7 FRONT CASE 1
8 CLICK SPRING 1
9 SPRING (A) 4
10 STEEL BALL D5 4
11 WASHER (B) 1
12 LOCK RING 1
13 ROLLER 4
14 RING GEAR 1
15 CARRIER 1
16 PLANET GEAR (C) SET 4
17 PLATE (B) 1
18 REAR CASE 1
19 SCREW SET D3 × 12 4
20 SHIFT ARM (A) 1
21 SLIDE RING GEAR 1
22 SLIP BLOCK 1
23 STOPPER SPRING 4
24 STOPPER 2
25 PINION (C) 1
26 PLANET GEAR (B) SET 4
27 PINION (B) 1
28 PLANET GEAR (A) SET 4
29 FIRST RING GEAR 1
30 PLATE (A) 1
31 MOTOR SPACER 1
32 ARMATURE AND PINION SET 1
33 MAGNET 1
34 DUST GUARD 1
35 BRUSH BLOCK 1
36 CARBON BRUSH 5 × 6 × 11.5 2
37 BRUSH CAP 2
38
TAPPING SCREW (W/FLANGE)
D3 × 16
8
39 NAME PLATE 1
40 HOUSING (A),(B)SET 1
41 SHIFT KNOB 1
42 DC-SPEED CONTROL SWITCH 1
ITEM
NO.
PART NAME Q’TY
43 PUSHING BUTTON (A) 1
44 HITACHI LABEL 1
45 M4 TRUSS HD. SCREW(BLACK) 1
46 HOOK (A) 1
47 STRAP (BLACK) 1
48 LOCK NUT M4 (BLACK) 2
49 PACKING 2
50 CONTROLLER TERMINAL 1
51-1 BATTERY (BSL1430) 2
51-2 BATTERY (BSL1830) 2
501 CHARGER (MODEL UC18YRSL) 1
502 CASE 1
503 + DRIVER BIT NO.2 65L 1
504 BATTERY COVER 1
