English
12

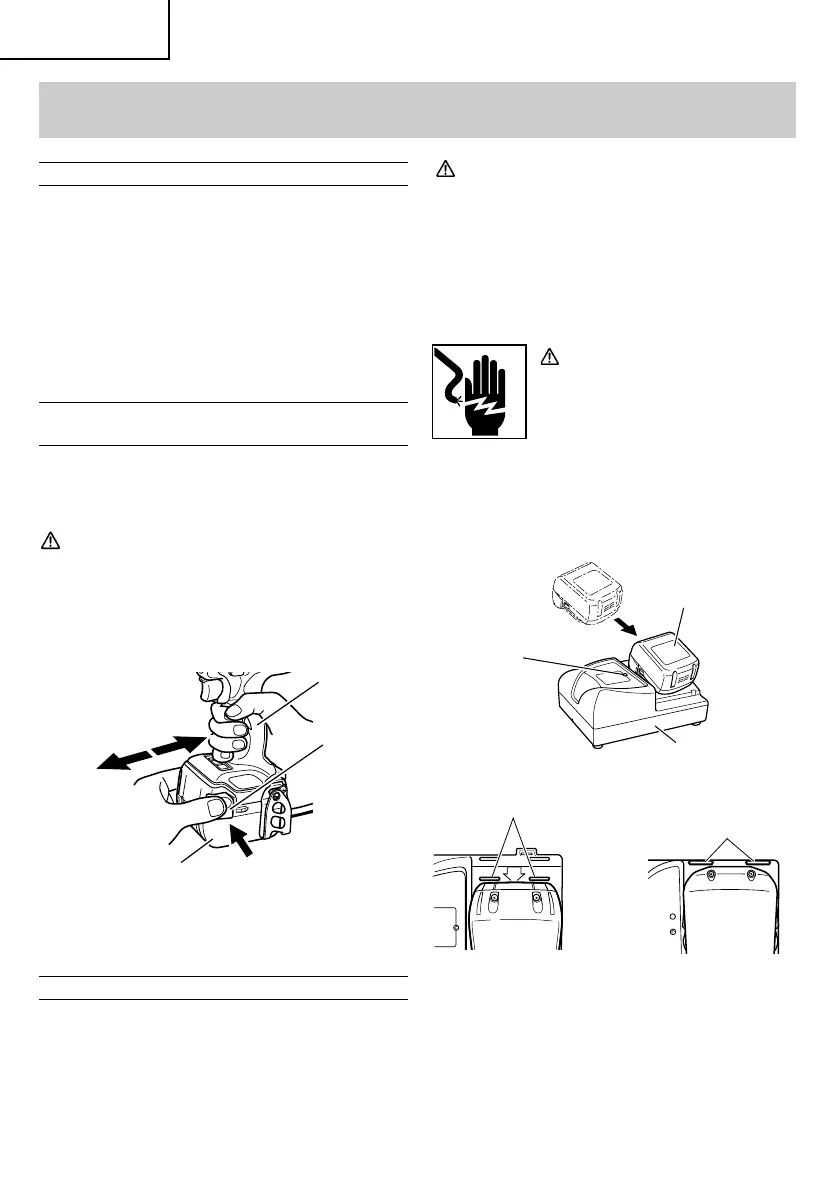

ASSEMBLY AND OPERATION
APPLICATIONS
<DV14DSL, DV18DSL>
䡬
Use as a hammer drill
Drilling of soft bricks and concrete blocks.
<DS14DSL, DS18DSL, DV14DSL, DV18DSL>
䡬
Use as a drill
Drilling of soft steel, wood, plastic and aluminum
materials.
䡬
Use as a screwdriver
Tightening and loosening of machine screws, wood
screws and tapping screws.
REMOVAL AND INSTALLATION METHOD
OF BATTERY
1. Battery removal
Hold the handle tightly and push the battery latch to
remove the battery (See Fig. 3).
CAUTION
Never short-circuit the battery.
2. Battery installation
Insert the battery while observing its polarities (see
Fig. 3).
CHARGING METHOD
NOTE:
Before plugging into the receptacle, make sure the
following points.
䡬
The power source voltage is stated on the
nameplate.
䡬
The cord is not damaged.
Latch
Rechargeable
battery
push
Pull out
Insert
Fig. 3
WARNING:
Do not charge at voltage higher than indicated on
the nameplate.
If charged at voltage higher than indicated on the
nameplate, the charger will burn up.
1. Connect the charger’s power cord to a receptacle.
When the power cord is connected, the charger’s
pilot lamp will blink in red. (At 1-second intervals)
WARNING:
Do not use the electrical cord if
damaged. Have it repaired
immediately.
2. Insert the battery into the charger.
Firmly insert the battery into the charger until the
line is visible, as shown in Fig. 4 .
Charger
Pilot lamp
Line
Fig. 4
<BSL1430>
<BSL1830>
Rechargeable
battery
Handle
Line
01Eng_DS14DSL_US 4/22/08, 10:2012
