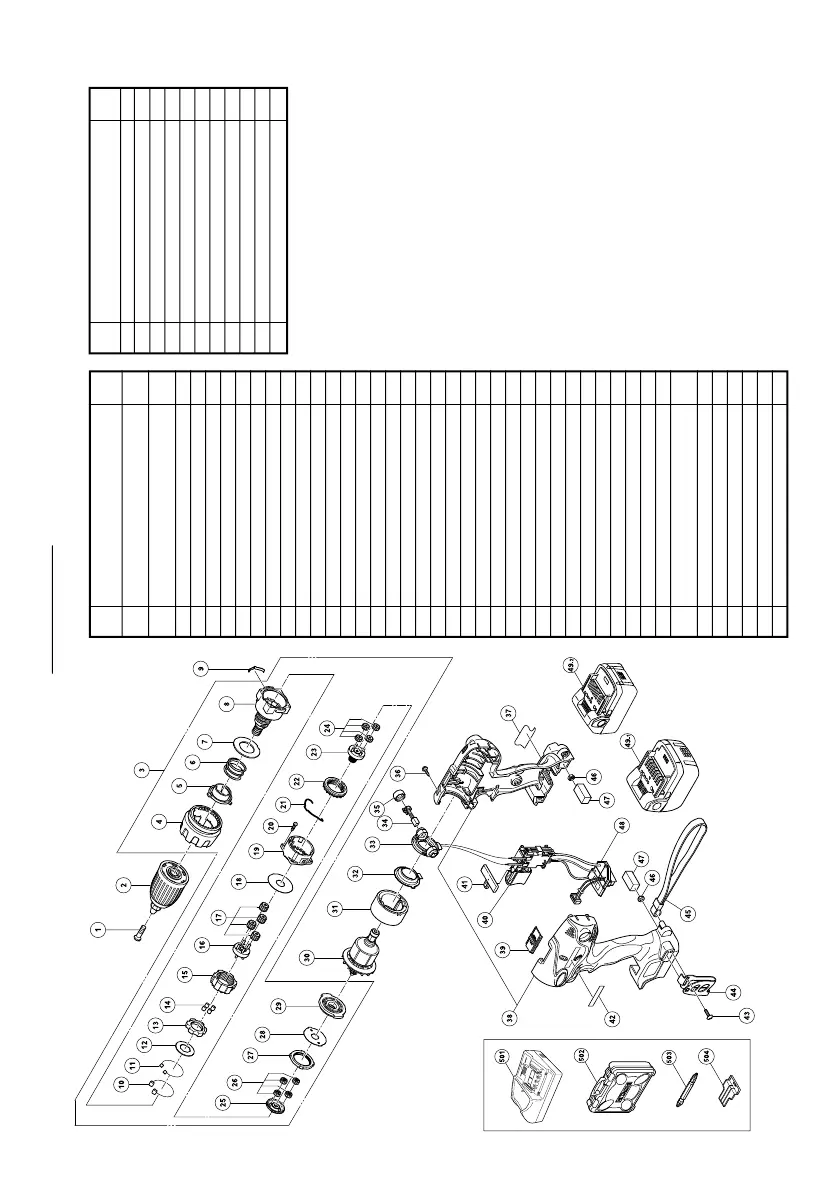

DS14DSL/DS18DSL
ITEM
NO.
PART NAME Q’TY
1
SPECIAL SCREW (LEFT HAND)
1
M6 × 23
2
DRILL CHUCK 13VLRG-N
(W/O CHUCK WRENCH)
1
3 GEAR BOX ASS’Y 1
4 CLUTCH DIAL 1
5 NUT 1
6 SPRING 1
7 THRUST PLATE 1
8 FRONT CASE 1
9 CLICK SPRING 1
10 ROLLER 6
11 STEEL BALL D5 6
12 WASHER (B) 1
13 LOCK RING 1
14 ROLLER 4
15 RING GEAR 1
16 CARRIER 1
17 PLANET GEAR (C) SET 3
18 PLATE (B) 1
19 REAR CASE 1
20 SCREW SET D3 × 12 4
21 SHIFT ARM 1
22 SLIDE RING GEAR 1
23 PINION (C) 1
24 PLANET GEAR (B) SET 4
25 PINION (B) 1
26 PLANET GEAR (A) SET 4
27 FIRST RING GEAR 1
28 PLATE (A) 1
29 MOTOR SPACER 1
30 ARMATURE AND PINION SET 1
31 MAGNET 1
32 DUST GUARD 1
33 BRUSH BLOCK 1
34 CARBON BRUSH 5 × 6 × 11.5 2
35 BRUSH CAP 2
36
TAPPING SCREW (W/FLANGE)
8
D3 × 16
37 NAME PLATE 1
38 HOUSING SET 1
39 SHIFT KNOB 1
40 DC-SPEED CONTROL SWITCH 1
41 PUSHING BUTTON 1
42 HITACHI LABEL 1
Item
No.
Part Name Q’TY
43 M4 TRUSS HD. SCREW (BLACK) 1
44 HOOK (A) 1
45 STRAP (BLACK) 1
46 LOCK NUT M4 (BLACK) 2
47 PACKING 2
48 CONTROLLER TERMINAL 1
49-1 BATTERY (BSL1430) 2
49-2 BATTERY (BSL1830) 2
501 CHARGER (MODEL UC18YRSL) 1
502 CASE 1
503 + DRIVER BIT NO.2 65L 1
