Hitachi DV 20T Handling Instructions

Item
Part Name
No.
44 Internal Wire (A)
45 Internal Wire (C)
46 Internal Wire (C)
47 Tube (D)
48 Support (B)
49 Noise Suppressor
50 Tapping Screw D4 × 16
51 Cord Clip
52 Cord Armor
53 Tube (D)
54 Cord
56A Reversing Switch
57B
Flat Hd. Screw (A) (Left Hand)
M6 × 25
59 CR Unit
60 Oil Seal
61A Dust Seal
501 Side Handle
502 Depth Stopper
Parts are subject to possible modification
without notice due to improvements.

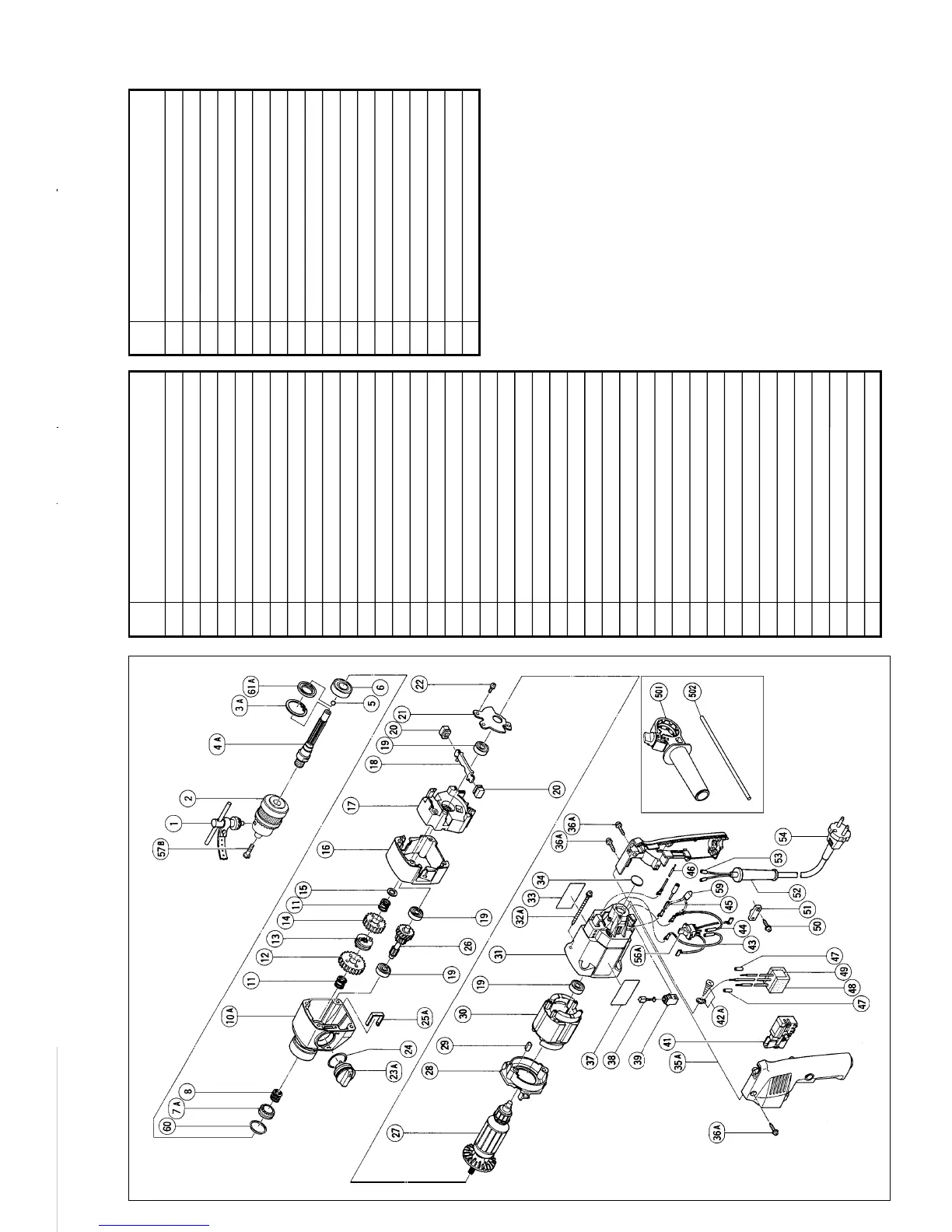

The drawing and the list are parts
structural drawing and parts list of model
DV20V2.
For other models refer to the drawing
and the list.
Item
Part Name
No.
1 Chuck Wrench 10G
2 Drill Chuck 13VLR
3A Retaining Ring For D32 Hole
4A Spindle
5 Steel Ball D4.76
6 Ball Bearing (6002DDUCMPS2S)
7A Ratchet (A)
8 Spring (B)
10A Gear Cover Ass’y
11 Spring
12 Low Speed Gear
13 Clutch Disc
14 High Speed Gear
15 Washer
16 Outer Cover
17 Inner Cover
18 Changing Plate
19 Ball Bearing (608VVMC2EPS2L)
20 Push Button
21 Bearing Holder
22
Seal Lock Screw (W/Sp. Washer)
M5 × 12
23A Shift Lever Ass’y
24 O-Ring
25A Shift Spring
26 Second Pinion
27 Armature
28 Fan Guide
29 Rubber Bushing
30 Stator
31 Housing
32A
Tapping Screw (W/Flange)
D5 × 60
33 Name Plate
34 Bearing Seal
35A Handle (A)
·
(B) Set
36A
Tapping Screw (W/Frange)
D4 × 16
37 HITACHI Label
38 Carbon Brush
39 Brush Holder
41 Speed Control Switch
42A Earth Terminal
43 Internal Wire (A)
DV20V2
The exploded assembly drawing should be used only for authorized
service center.
