Hitachi ED-A100 - Audio out

5
MONITOR OUT
COMPUTER IN2
COMPUTER IN1
CONTROL
LAN
AUDIO
OUT
S-VIDEO
Y CB/PB CR/PR
VIDEO L R
USB
AUDIO IN3
AUDIO IN
1
2

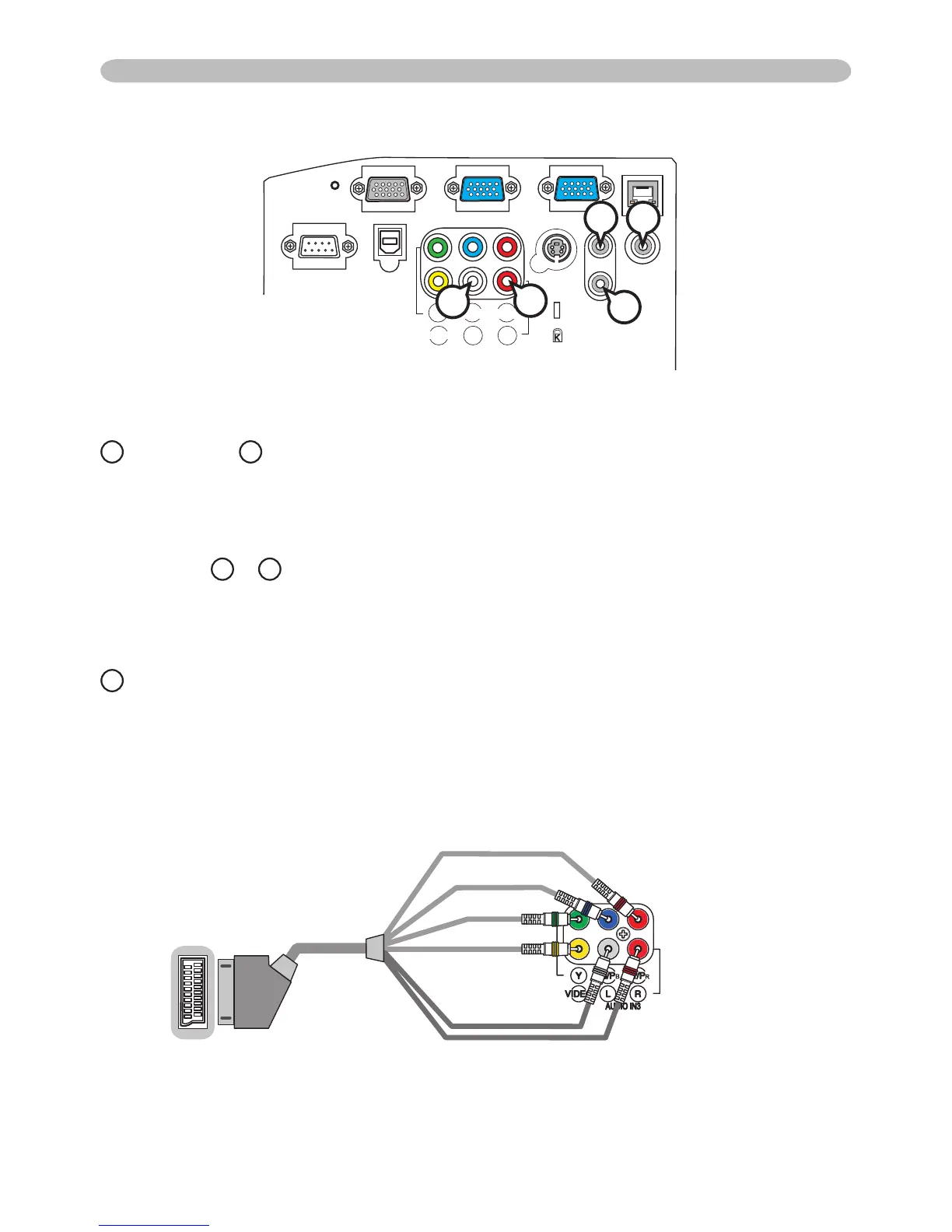

Connection to the ports (continued)
J
AUDIO IN1,
K
AUDIO IN2
Ø3.5 stereo mini jack
• 200 mVrms 47kΩ terminator
AUDIO IN3
L
L,
M
R
RCA jack x2
• 200 mVrms 47kΩ terminator
N
AUDIO OUT
Ø3.5 stereo mini jack
• 200 mVrms 1kΩ output impedance
To input SCART RGB signal;
ex.:
To input SCART RGB signal to the projector, use a SCART to RCA cable.
Connect the plugs refer to above ex.. For more reference, please consult your dealer.
SCART connector
(jack)
SCART cable
(plug)
RCA plugs
AUDIO IN3
㪭㫀㪻㪼㫆
㪩
㪙
㪞
㪘㫌㪻㫀㫆㩷㪣
㪘㫌㪻㫀㫆㩷㪩
L
M
NJ
K
