CP-A100 / ED-A100 / ED-A110 (A1DN)

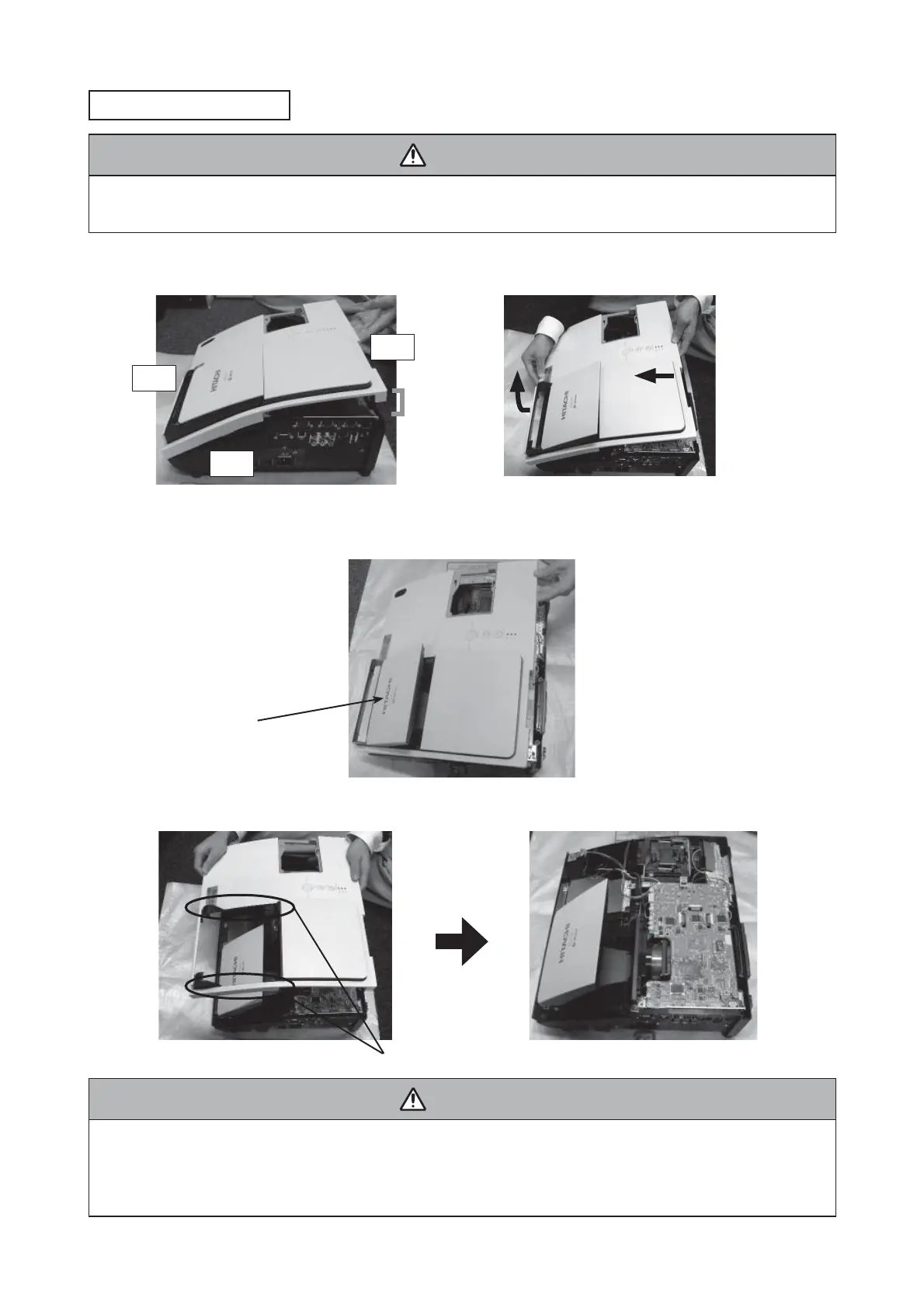

Detach the upper case
Detach the rear part of upper case. Do not open mirror. Lift the rear part of upper case about 5cm.
Lift the side part of upper case to detach while pushing the rear part to front.
CAUTION
When you detach the upper case, keep the mirror with your hand.
Never touch the surface of the mirror.
Make sure not to touch the side edge of mirror and edge of upper case.
Otherwise, paints will peel off.
CAUTION
Detach the lamp door, and remove the bottom case screws and the side panel screws before you detach
the upper case.
5cm
Lift the mirror until mirror makes clutch sound. Then, release your hand.
Mirror will be half opening.
Detach the upper case from bottom case.
front
rear
Half opening
side
Paints will peel off
To Next Page
