CP-A100 / ED-A100 / ED-A110 (A1DN)
Notice

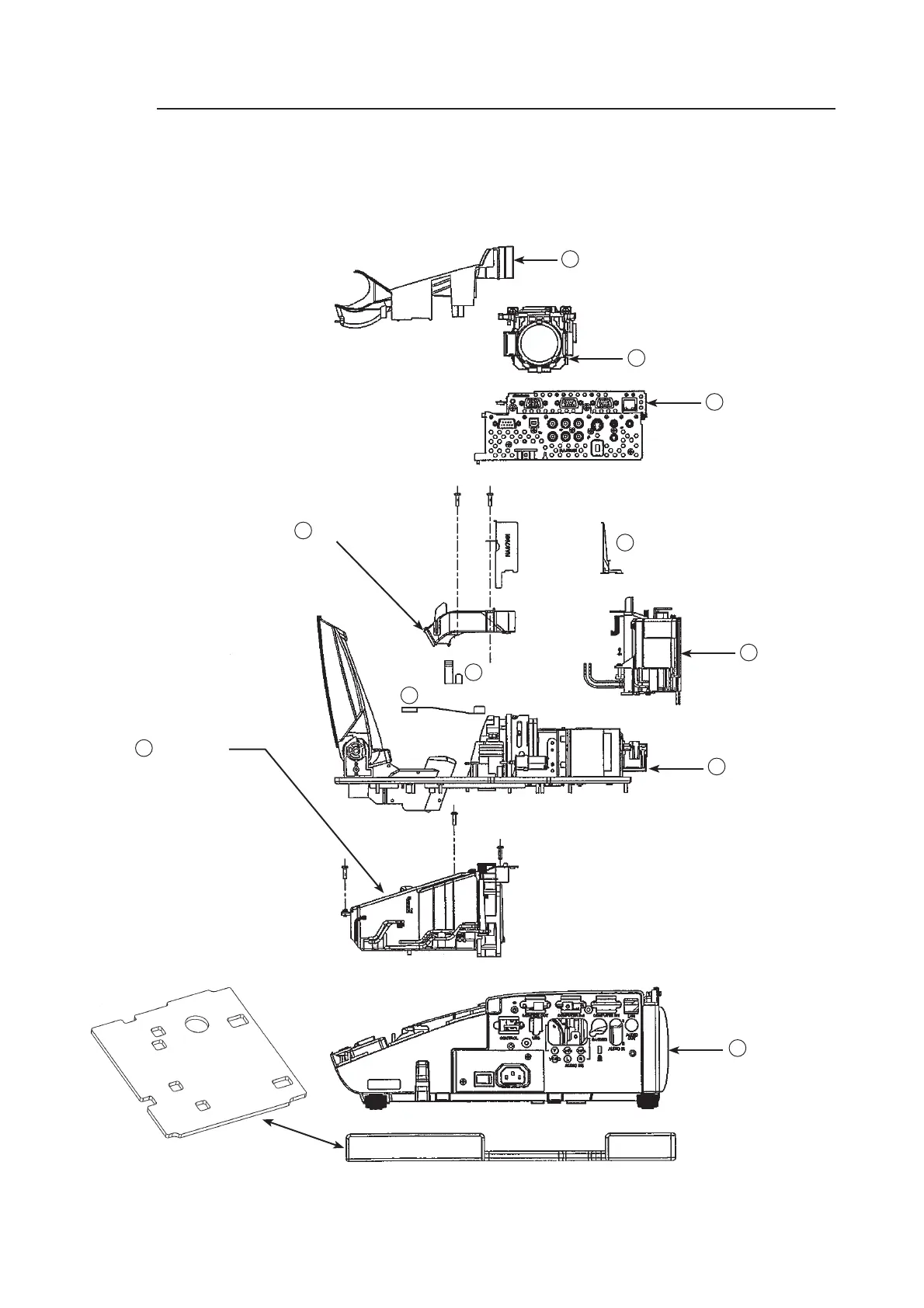

1. The step of the disassembly / The step of the assembly.
Disassemble the projector in order of 1, 2, 3, 4, 5, 6, 7, 8 and 9 as shown in the dia-
gram. Assemble the projector in order of 9. 8, 7, 6, 5, 4, 3, 2 and 1 as shown in the
diagram.
1 Mirror Cover
2 Lamp Unit
3 Main board
4 Cooling duct
6 Ballast
9 Other parts
8 Power Unit
(Circuit)
Tighten this screw first
5 Earth bracket 2
5
Earth bracket 3
5
Earth bracket 1
Jig for assembling
Jig for assembling you have to use this Jig when you
assemble the projector.
Wind shield
7 Optical Unit
To Next Page
