61
CP-A100 / ED-A100 / ED-A1
10 (A1DN)

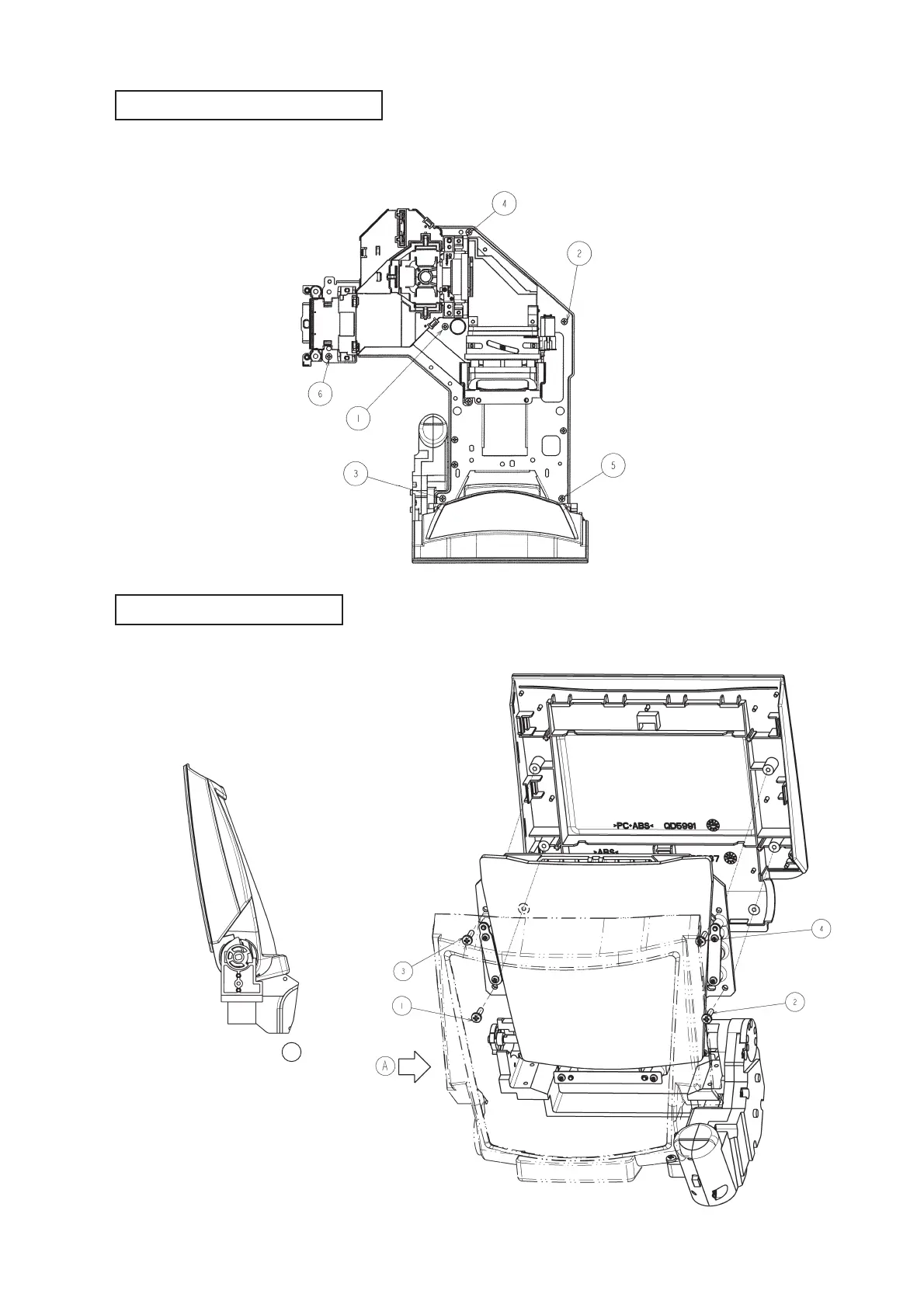

Put the Engine unit Assy on the bottom case and tighten screws in order of 1, 2, 3, 4, 5 and 6 as shown in
the diagram.
Attaching the Engine unit Assy
Attach the two mirror covers to the mirror and tighten screws in order of 1, 2, 3 and 4 as shown in the diagram.
Attaching the mirror cover
View point from A
2.
3.
60
62
Table of Contents
Table of Contents
1
Features
2
Specifi Cations
2
Names of each Part
3
Adjustment
6
Troubleshooting
14
Service Points
22
Wiring Diagram 1
40
Disassembly Diagram
54
Replacement Parts List
70
RS-232C Communication
73
Block Diagram
88
Connector Connection Diagram
89
Basic Circuit Diagram
90
