Hitachi ED-A110A1DN Service Manual

62
CP-A100 / ED-A100 / ED-A110 (A1DN)
Follow the procedure below to disassemble / assemble the Optics Unit.
Disassembling / Assembling the Optics Unit

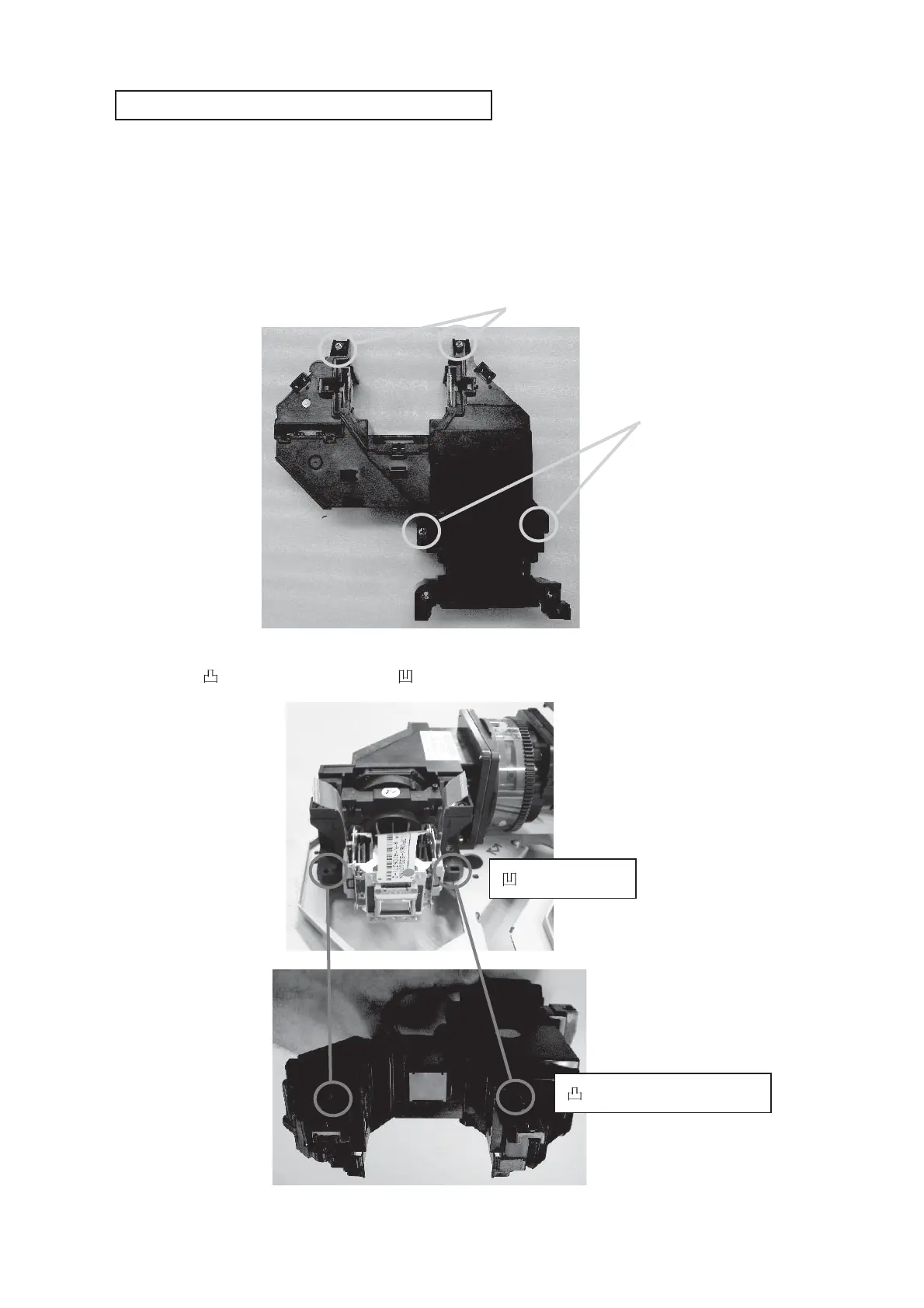

(1)Disassembling/Assembling Dichroic optics unit
Remove 4 screws to detach the Dichroic optics unit from bottom bracket.
Never remove the other screws.
Tighten 4 screws to attach the Dichroic optics unit to bottom bracket.
Combine two
parts of dichroic unit to part of lens.
Meter screw
Tapping screw
parts of dichroic unit
part of lens
4.
