--- 15 ---
Fig. 14

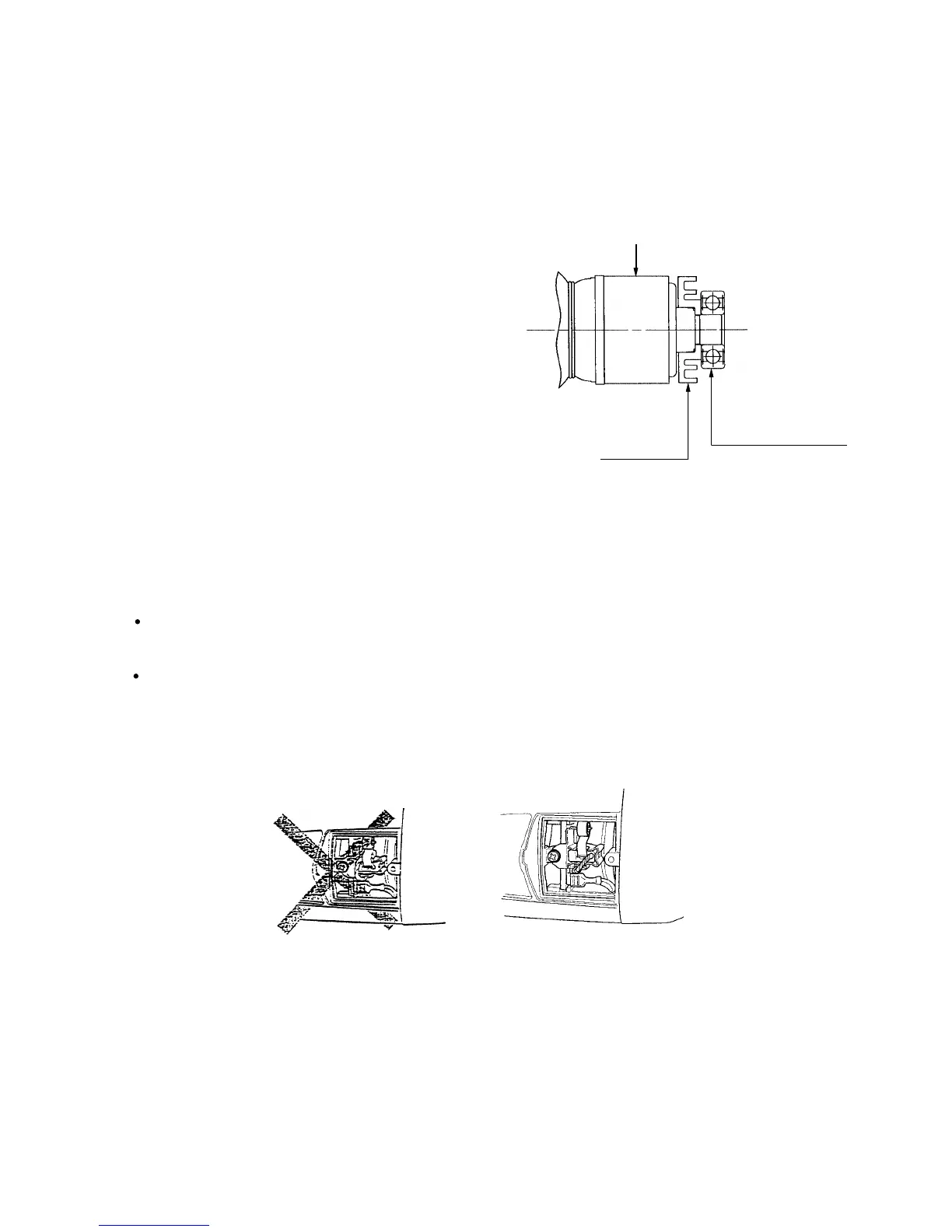

(2) When replacing the Armature [13] <13> (13) and the
Ball Bearing 6000VVCMPS2L [44] <43> (44) on the
commutator side, press inward on the Dust Seal [43]
<42> (43) while taking care of its direction until the end
face of the Dust Seal [43] <42> (43) hits against the
butting surface of the Armature [13] <13> (13) and
make sure that the Dust Seal [43] <42> (43) cannot
turn freely. (See Fig. 13.)
The Dust Seal [43] <42> (43) is an important element
for improved dust protection of the Ball Bearing
6000VVCMPS2L [44] <43> (44). Be sure to use a new
one at every disassembly work of the Ball Bearing
6000VVCMPS2L [44] <43> (44).
Fig. 13
Dust Seal
(3) Apply Three Bond TB 1406 Screw Locking Agent to the following screws.
Two Seal Lock Screws (W/Sp. Washer) M5 x 14 (Black) [1] <1> (1) which fix Bearing Cover (A) [12] <12> (12)
in place.
Four Hex. Socket Hd. Bolt (W/Flange) M5 x 16 [28] <28> (28) which fix Packing Gland [27] <27> (27) in
place.
Armature Shaft
Ball Bearing
(6000VVCMPS2L)
(4) Check that the spring end does not hold the terminal when mounting the carbon brush. Do not catch the
terminal in the brush cover when mounting the brush cover.
8-2. Reassembly
Put the parts together in the reverse order of disassembly, with the precautions given below.
(1) Generously lubricate the teeth of Gear [20] <20> (20) and Pinion [7] <7> (7) with grease. Rub grease onto the
teeth with your fingers so that the grease reaches each tooth bottom. Note that under-lubricated Gear [20]
<20> (20) and Pinion [7] <7> (7) may wear at a faster rate.
