Using Side AV Connectors

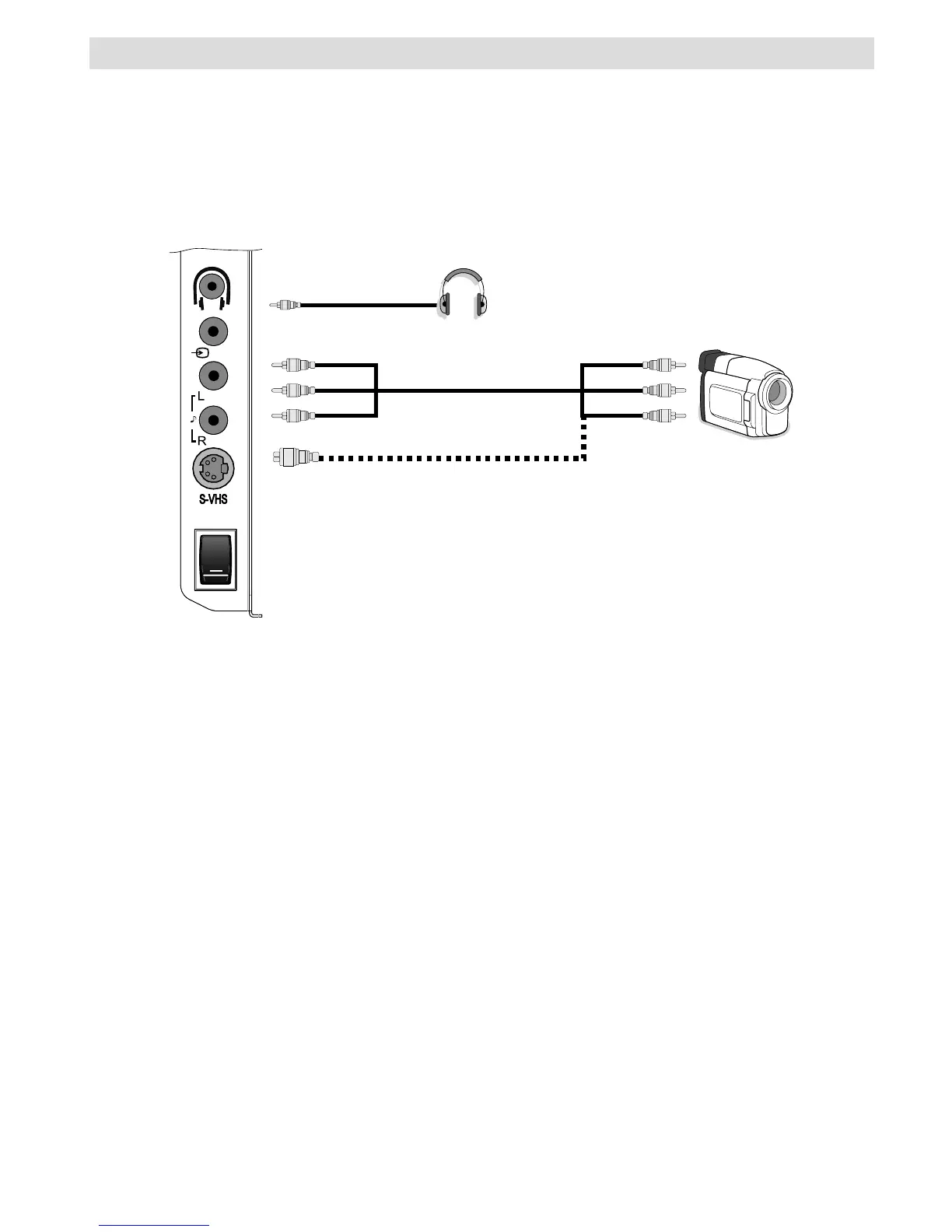

You can connect a range of optional equipment to your LCD TV. Possible connections are shown
below. Note that cables shown in the illustration are not supplied.
• For connecting a camcorder, connect to the
S-VIDEO or VIDEO IN socket and the AUDIO
SOCKETS. Do not connect the camcoder to
S-VIDEO and VIDEO IN socket at the same time
since it can cause noise in the picture. For selecting the related source, see the section “Input
selection” in the following parts.
• To listen the TV sound from headphones, connect to the HEADPHONE jack of theTV.
Camcorder
Headphone
SIDE VIEW
