--- 8 ---

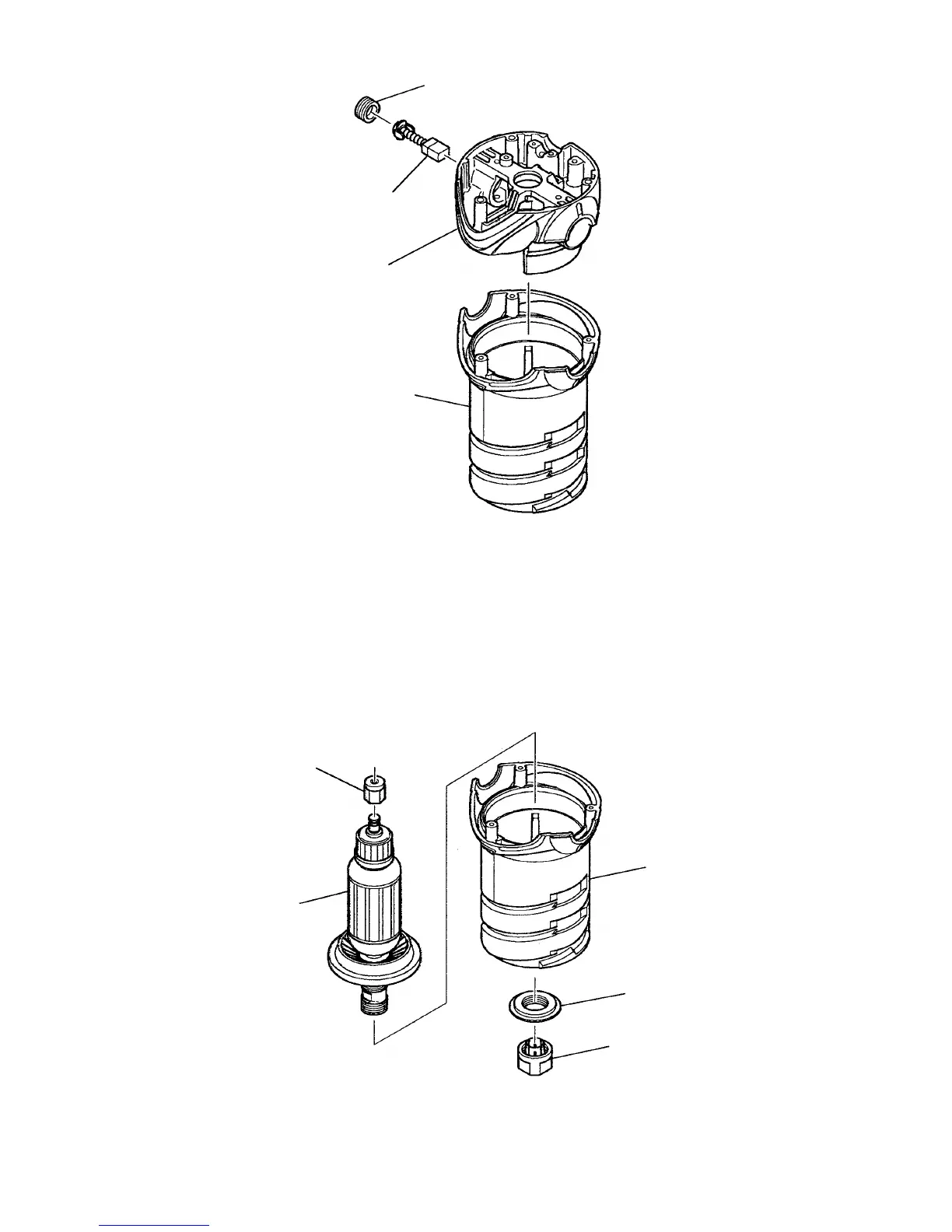

(4) Disassembly of the Armature Ass'y 120 V [31] (Fig. 7)
First, remove the Collet Chuck 1/2" [36] (or [501]) with the Wrench 23 mm [506] and the Wrench 16 mm [505].
And remove the Thrust Nut [35] with wrenches. Then remove the Armature Ass'y 120 V [31] from the Housing
[32]. To remove the Magnet [26] from the Armature Ass'y 120 V [31], being very careful not to damage the
magnet component, fit a 14 mm wrench onto the hexagonal portion of the Magnet [26], and loosen and
remove it from the Armature Ass'y 120 V [31].
Armature Ass'y 120 V [31]
Magnet [26]
Housing [32]
Thrust Nut [35]
Collet Chuck 1/2" [36]
Fig. 7
Housing [32]
Stator Holder Ass'y [22]
Fig. 6
Carbon Brush (1 Pair) [19]
Brush Cap [18]
To Next Page
