2
Voltage (by areas)* (110V, 115V, 120V, 127V, 220V, 230V, 240V)
Power Input 570W*
Cutting Width 82mm
Max. Cutting Depth 1mm
Weight (without cord) 2.5kg
No-Load Speed 15000min
–1
* Be sure to check the nameplate on product as it is subject to change by areas.
STANDARD ACCESSORIES
1. Box Wrench (for securing cutter blade) .................. 1
2. Set Gauge (for adjusting cutter height) ................... 1
3. Guide (with set screw) .............................................. 1
Standard accessories are subject to change without
notice.
APPLICATIONS
䡬 Planing various wooden planks and panels.
Max. 12mm
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool's
operation.
If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained
power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into
account the working conditions and the work to be
performed.
Use of the power tool for operations different from
those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
PRECAUTION
Keep children and infirm persons away.
When not in use, tools should be stored out of reach of children and
infirm persons.
PLANER SAFETY RULES
1. Wait for the cutter to stop before setting the tool
down.
An exposed cutter may engage the surface leading to
possible loss of control and serious injury.
2. Do not use the Planer with the blades facing upward
(as stationary type planer).
3. Use dust collection adapter if need to reduce dust
related hazards.
(1) Unscrew the left side screw on bearing cover
(Item no. 23 show in assembly drawing) on
housing.
(2) Mount dust collection adapter on housing with
screws.
Dust collection adapter (Code no. 313928)
(3) Connect the dust extraction and collection facilities
with the tube of dust collection adapter firmly.
(4) Wear dust mask additionally, if available.

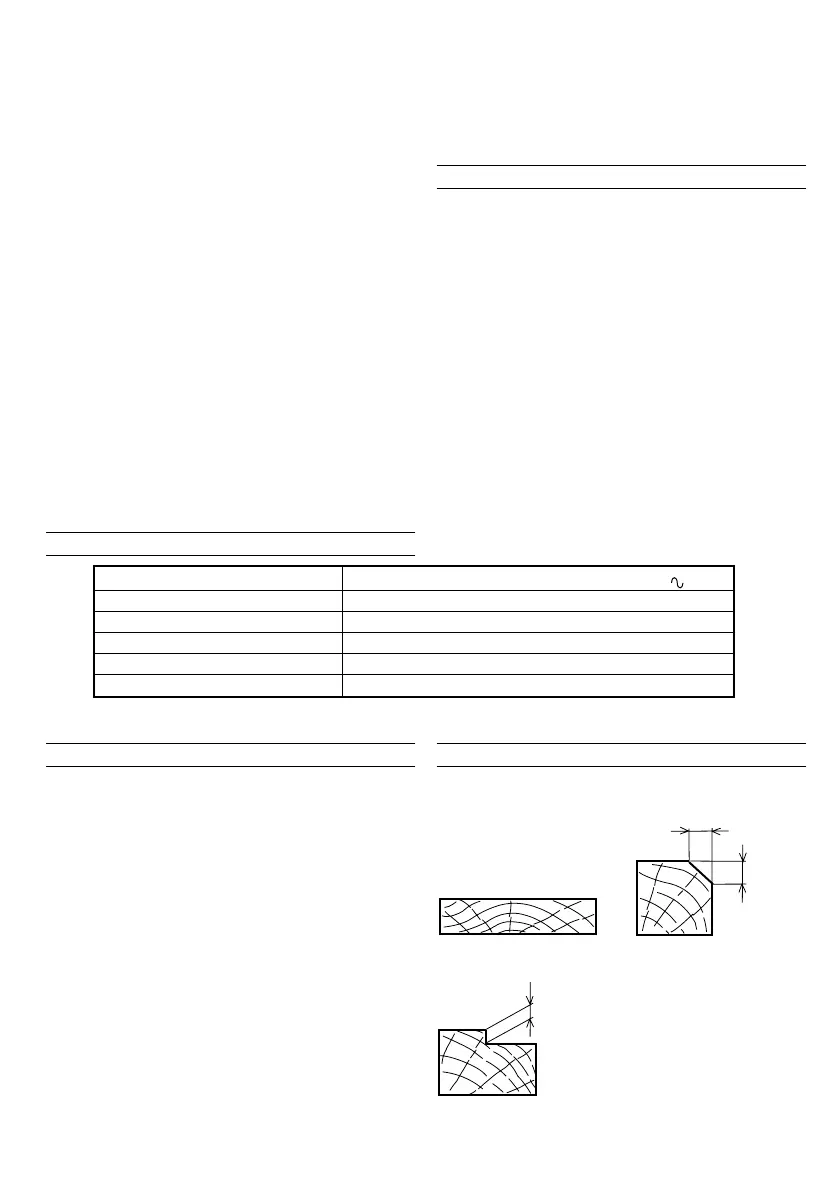

SPECIFICATIONS
Planing
Beveling
Max.
12mm
Rabbeting
Max.
6mm
01Eng_P20SB_Eng 12/26/08, 10:312
