Hitachi PDA-100D User Manual

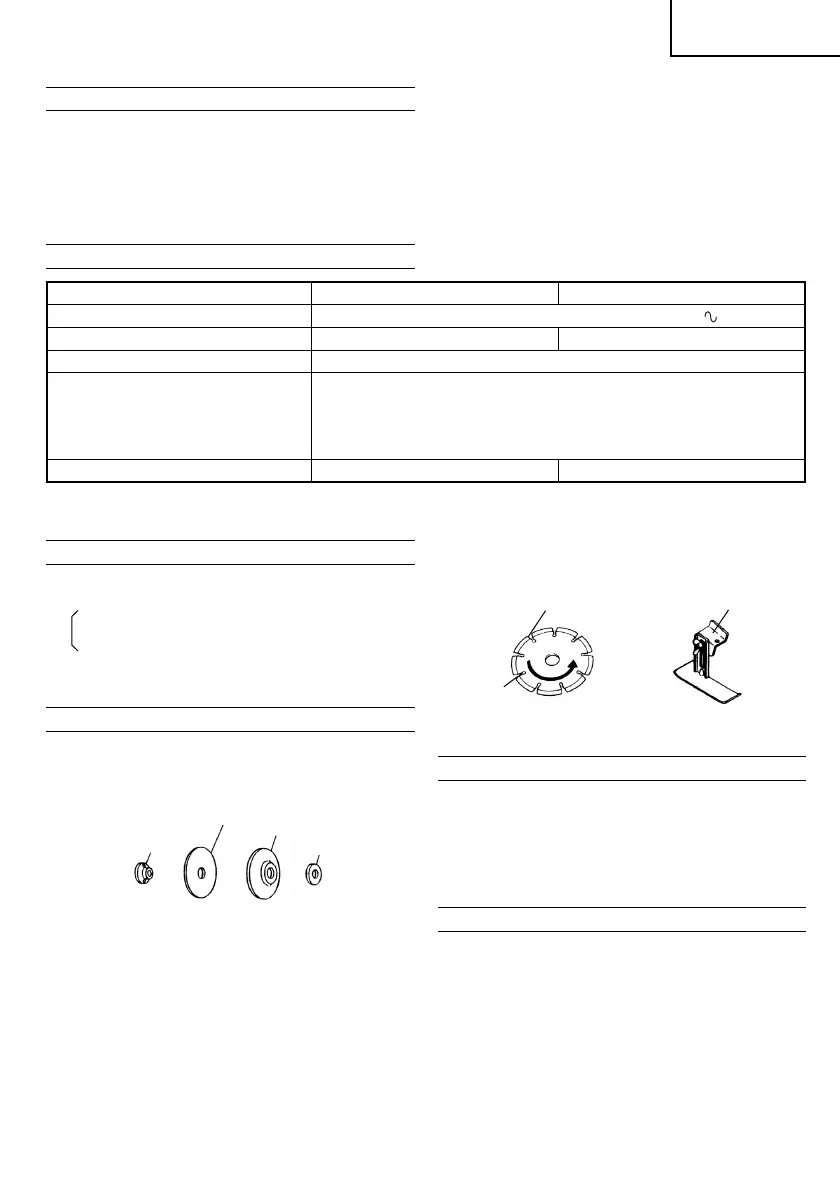

SPECIFICATIONS
Model PDA-100D G10SB1
Voltage (by areas)*
1
(100 V, 115 V, 120 V, 127 V, 220 V, 230 V, 240 V)
Power Input*
1
620 W 530 W
No-load speed 12000/min
Wheel size Max. Peripheral Speed: 72 m/s (4300 m/min)
external dia. 100 mm
thickness 6 mm
hole dia. 16 mm
Weight *
2
1.9 kg 1.8 kg
*
1
Be sure to check the nameplate on product as it is subject to change by areas.
*
2
Only main body.
STANDARD ACCESSORIES
(1) Depressed center wheel ...............................................1
(Resinoid Wheel)
external dia. 100 mm
thickness 4 mm
hole dia. 16 mm
(2) Wrench .........................................................................1
Standard accessories are subject to change without notice.
OPTIONAL ACCESSORIES . . sold separately
CAUTION
Always operate the grinder with the wheel guard
attached.
1. 100 mm Sanding Disc Set
Washer Nut
Sanding Disc
Rubber Pad
Washer
In case when only a relatively small metal surface area is
to be polished and it is desired to give it a particularly fi ne
fi nish, this is used for preliminary polishing of the metal
surface before applying point, for removing rust, and for
removing point
when a new test is to be applied.
There are eleven diff erent kinds of sanding discs, having
grains of #16, #20, #24, #30, #36, #40, #50, #60, #80,
#100, #120. When placing your order, please specify the
grain of the disc desired.
2. Diamond Wheel Set
This is used for cutting and scribing of concrete, stone,
tile etc.
Guide Base Ass’y
Diamond Wheel
Segment
Type
Optional accessories are subject to change without notice.
APPLICATIONS
○ Removal of casting fi n and fi nishing of various types of
steel, bronze and aluminum materials and castings.
○ Grinding of welded sections or sections cut by means of
a cutting torch.
○ Grinding of brick, marble, etc.
○ Cutting and scribing of concrete, stone, tile (use the
diamond wheel).
PRIOR TO OPERATION
1. Power source
Ensure that the power source to be utilized conforms
to the power requirements specifi ed on the product
nameplate.
2. Grounding
This tool should be grounded while in use to protect the
operator from electric shock. The tool is equipped with a
three conductor cord and grounding type
plug to fi t the
proper grounding type receptacle. The green (or green
and yellow) conductor in the cord is the grounding wire.
Never connect the green (or green and yellow) wire to a
live terminal.
PRECAUTIONS ON USING DISC GRINDER
1. Never operate these power tools without Wheel Guards.
2. Use only a depressed center wheel of permissible
peripheral speed 72 m/s (4300 m/min) or more.
3. Correct use for safe operation.
4. Mounting the standard depressed center wheel.
5. Have a trial run before grinding commence.
6. Keep away
from a revolving depressed center wheel.
7. Pay strict attention to sparks.
8. Always hold the disc grinder securely when using.
9. Do not leave the revolving grinder unattended on the
fl oor.
10. Follow the procedures of these Handling Instructions on
depressed center wheel replacement.
11. Avoid overload operation.
12. Do not
push in the lock pin while the spindle is running.
13. Be careful those around one while operating.
