Ice Compartment (Automatic Ice Maker)
Stored ice amount
Normal operation
About 120 pcs
Ice is leveled
About 150 pcs
Required time for an
ice making operation
“
Normal
”
About 110 minutes 〜 140 minutes
“
Quick
”
About 70 minutes 〜 80 minutes
※ The above values are obtained with an ambient temperature of 30˚C, the temperature in each compartment set to
“
Mid.
”
and no door opened/closed.
Front
Ice scoop
Ice scoop Container-full line
Frozen food
Detecting Lever
Det
ecting LeverDetecting Lever
Is any frozen food stored in the
inner part of the Ice case?
Is the ice scoop in the inner
part of the Ice case?
Display
Control Panel
●
“
Water
”
indicator lamp turns off for up to 3 hours when the left door of the Refrigerator
Compartment is opened and closed while the indicator lamp is on, and it turns on again if no
water is added to replenish the container.
●
“
Water
”
indic
ator lamp remains off when
“
Off
”
is selected for automatic ice making.
● Amount of stored ice is automatically detected by the stored ice amount detecting lever of the
Automatic ice maker which cannot be seen usually.
Automatic ice maker stops making ice when the amount of the stored ice reaches to the specified
level and it restarts making ice when the amount is below the level.
● Limit line of sto
red ice amount represents the guide line of stored ice amount when the
Automatic Ice Maker makes ice with ice leveled.
If the ice is stored partially, the detecting lever may contact the ice early. As a result, the
Automatic Ice Maker may stop making ice before the amount of stored ice is enough.
●
“
Water
”
may come on regardless of water level if the water supply container is not placed
properly. P
ush in the container straight and completely if the indicator lamp comes on.
● Do not store any food such as frozen food other than ice in the Ice case when making
ice automatically.
(Otherwise, it may not make ice, or the door may not open or parts may damage
because the food interferes with the parts of the Automatic ice maker.)
● Gently open and close the door of the Ice Compartment, otherwise ic
e may fall out of
the ice case onto the lower freezer.
●
“
Off
”
indicator lamp won't turn off.
Notice
Notice
Caution
Request
Notice

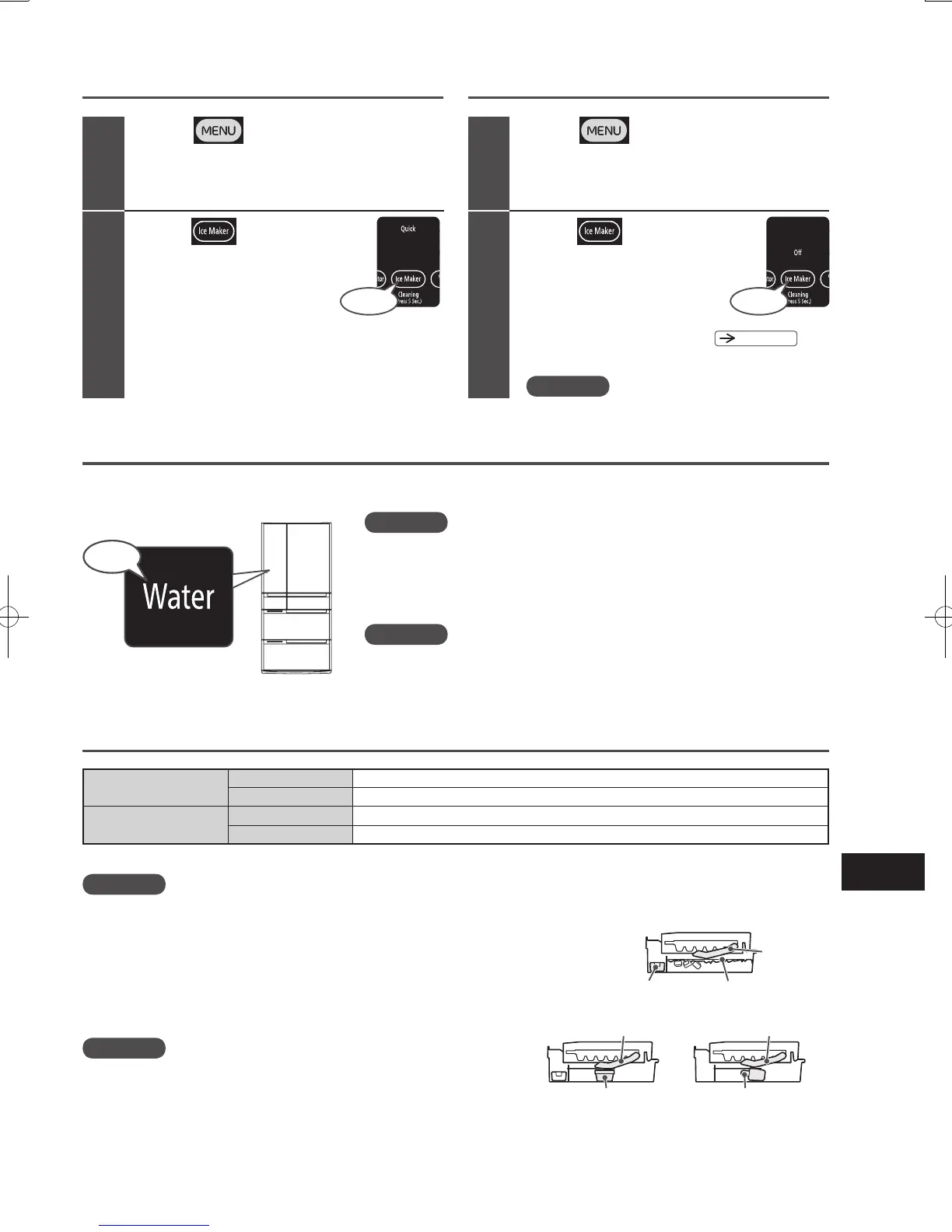

Quick Ice Making
Water Supply indicator
Stored ice amount and ice-making time of the Ice Case
Stop Ice Making
Touch button on the Control
Panel to turn on the indicator lamp.
All indicator lamps turn on once, and then the current settings
are displayed.
Touch button on the Control
Panel to turn on the indicator lamp.
All indicator lamps turn on once, and then the current settings
are displayed.
Touch button to turn
on
“
Quick
”
indicator lamp.
Ice cubes are made in a shorter time than
that of
“
Normal
”
operation.
12 pieces of ice cubes are made by one
ice-making operation.
“
Quick
”
operation ends automatically in about 7 hours, and it is
changed to
“
Normal
”
mode.
Touch button to turn
on
“
Off
”
indicator lamp.
Auto Ice Making is stopped and no Ice
cubes are made.
※ If you set to
“
Off
”
for 1 week or more,
maintain the Automatic Ice Maker.
Pg.58, 59
1 1
2 2
“
Water
”
indicator lamp comes on when water in the water supply container is getting low. Replenish the container
with water.
