DESCRIPTION OF MAIN CIRCUIT OPERATION
1. ON / OFF
The “ON / OFF” and “Timer reserve button” and “Sleeping” function independently. Their
operations are shown in Fig. 1-1.
ON/OFF button
Timer reserve button
(Sleeping)
Operation lamp
Timer lamp
When OFF
timer
(sleeping)
is set
Start Stop Start
“OFF” time
When ON
timer is set
“ON” time
ON/OFF button
Timer reserve button
Operation lamp
Timer lamp
Stop
Start

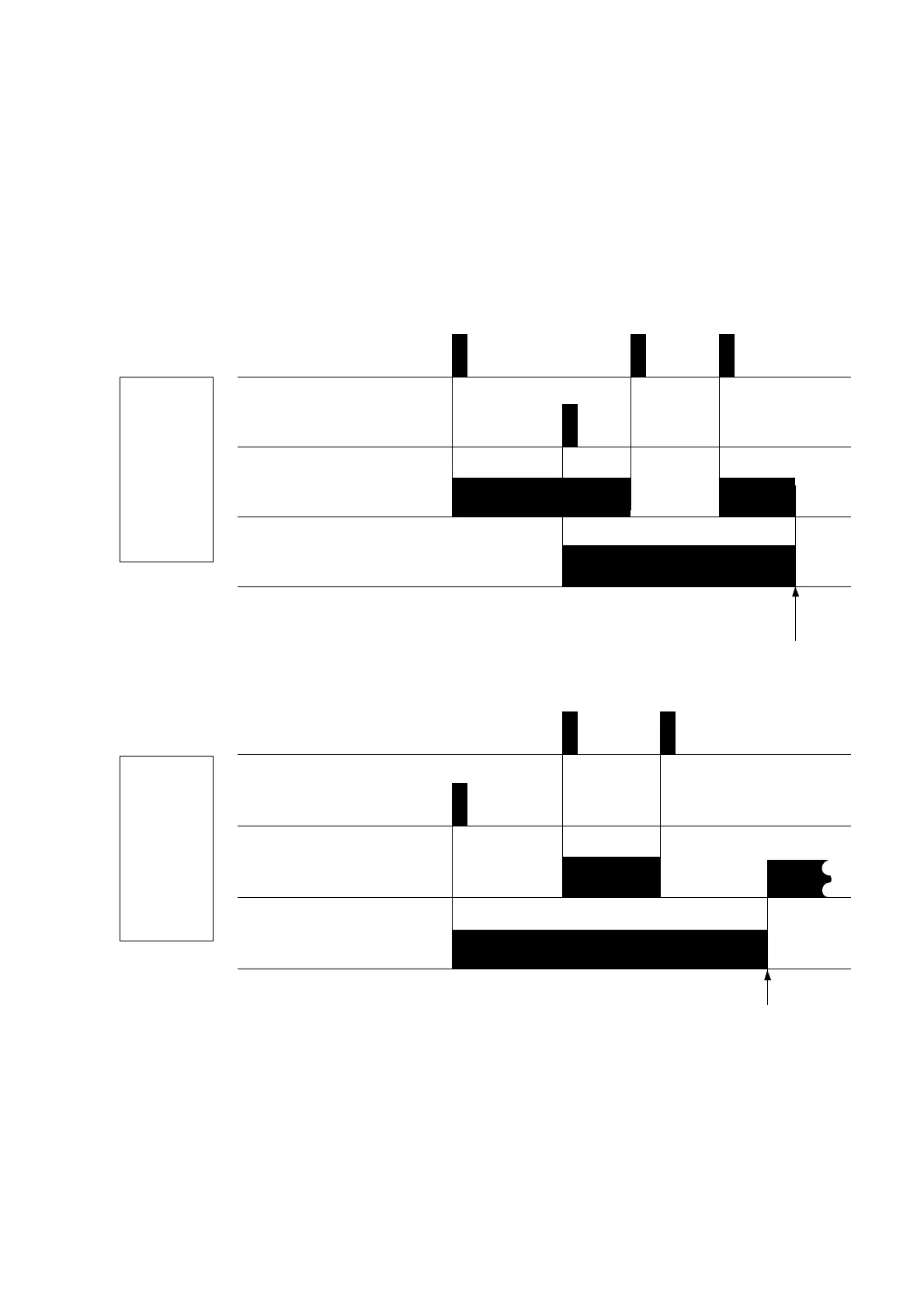

Fig. 1-1 Timer operation
