Remote Control

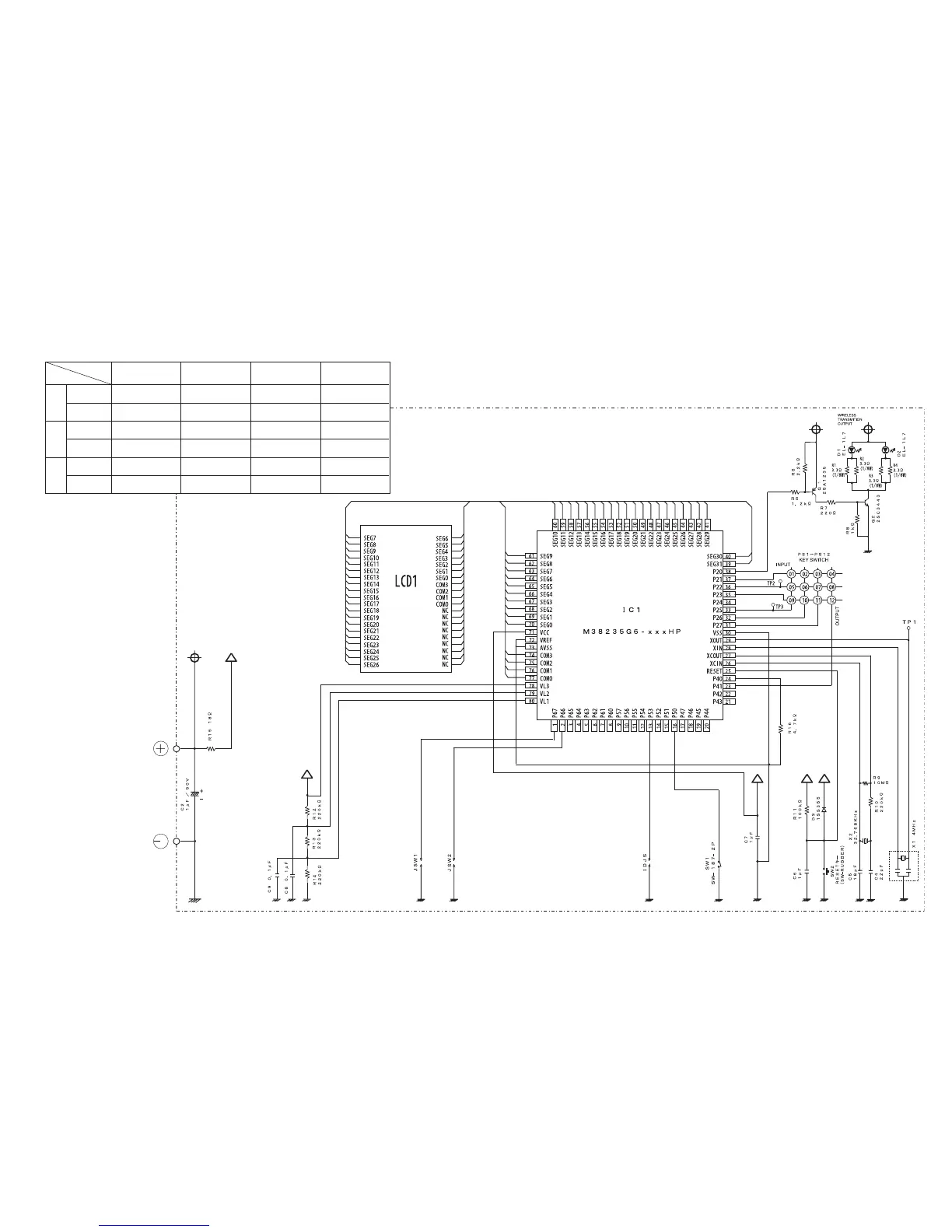

CIRCUIT DIAGRAM
– 31 –
Key matrix table
Input
P28
P27
P26
P25
Output
Door open
Cancel
Reservation
On timer
Off timer
Door shut
–
–
–
Sleep
Door open
Hour down
Hour up
Time setting
Start/Stop
Door shut
T
emperature
down
T
emperature up
Fan speed selection
Start/Stop
Door open
–
Auto swing
Fan speed selection
Operation mode select
Door shut
–
–
–
Auto swing
P21
P22
P23
31
33
Table of Contents
Table of Contents
1
Service Manual
1
Technical Information
1
Room Air Conditioner
1
Specifications
6
Safety Precaution
8
Precautions During Installation
8
Names and Functions of each Part
10
Automatic Operation
13
Heating Operation
14
Dehumidifying Operation
15
Cooling Operation
16
Fan Operation
17
To Set the Timer
18
Circuit Breaker
22
Suitable Room Temperature
23
Construction and Dimensional Diagram
29
Thermostat/Fan Motor Specifications
30
Main Parts Component
30
Circuit Diagram
32
Description of Main Circuit Operation
45
Service Call Q & a
49
Trouble Shooting
52
Parts List and Diagram
57
