– 4 –

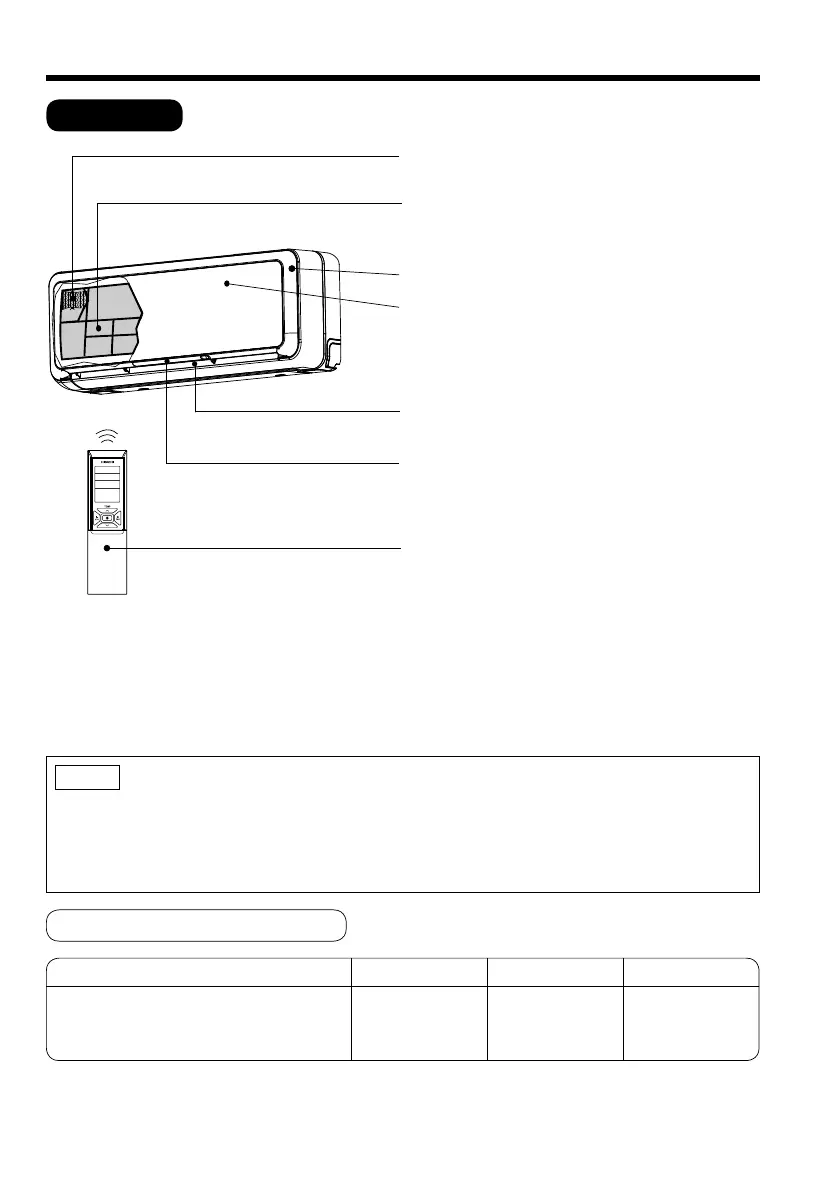

INDOOR UNIT
NAMES AND FUNCTIONS OF EACH PART
AIR PURIFYING FILTER
(Refer page 9)
PRE-FILTER
To prevent dust from coming into the indoor unit.
(Refer page 10)
FRONT PANEL
MOVEABLE PANEL
It will be open when the air conditioner is operate
and close when the air conditioner is not in operation.
(Occasionally it may not be open during the operating
mode)
HORIZONTAL DEFLECTOR
O
VERTICAL
DEFLECTOR (AIR OUTLET)
INDOOR UNIT INDICATORS
Light indicator showing the operating condition.
(Refer page 5)
REMOTE CONTROLLER
Send out operation signal to the indoor unit. So as
to operate the whole unit.
(Refer Remote Control manual)
WIDTH (mm)
795
MODEL
RAK-18QXA
RAK-25QXA
RAK-35QXA
RAK-50QXA
HEIGHT (mm)
295
DEPTH (mm)
198
MODEL NAME AND DIMENSIONS
O Air purifying and deodorizing Þ lters are not washable and reusable up to 20 times by using vacuum cleaner or water
rinse under running tap water. Type number for this air cleansing Þ lter is <SPX-CFH22>. Please use this number
for ordering when you want to renew it.
O Air purifying Þ lter should be cleaned every month or sooner if noticeable loading occurs. When used overtime,
it may loose its deodorizing function. For maximum performance, it is recommended to replace it every 1 year
depending on application requirements.
NOTE
Q Moveable Panel
O It will open up automatically when the air conditioner is in operation and it will close up automatically
when the air conditioner stopped operating. Avoid physical adjustments as it may damage the panels’
mechanisms.
O Please do not touch the moving panel during operations as it may pinch your Þ ngers.
To Next Page
