When power is supplied, the microcomputer reads the data in IC531 (E PROM) and sets the preheating
2
activation value and the rating and maximum speed of the compressor, etc. to their initial values.
Data of self-diagnosis mode is stored in IC531; data will not be erased even when power is turned off.

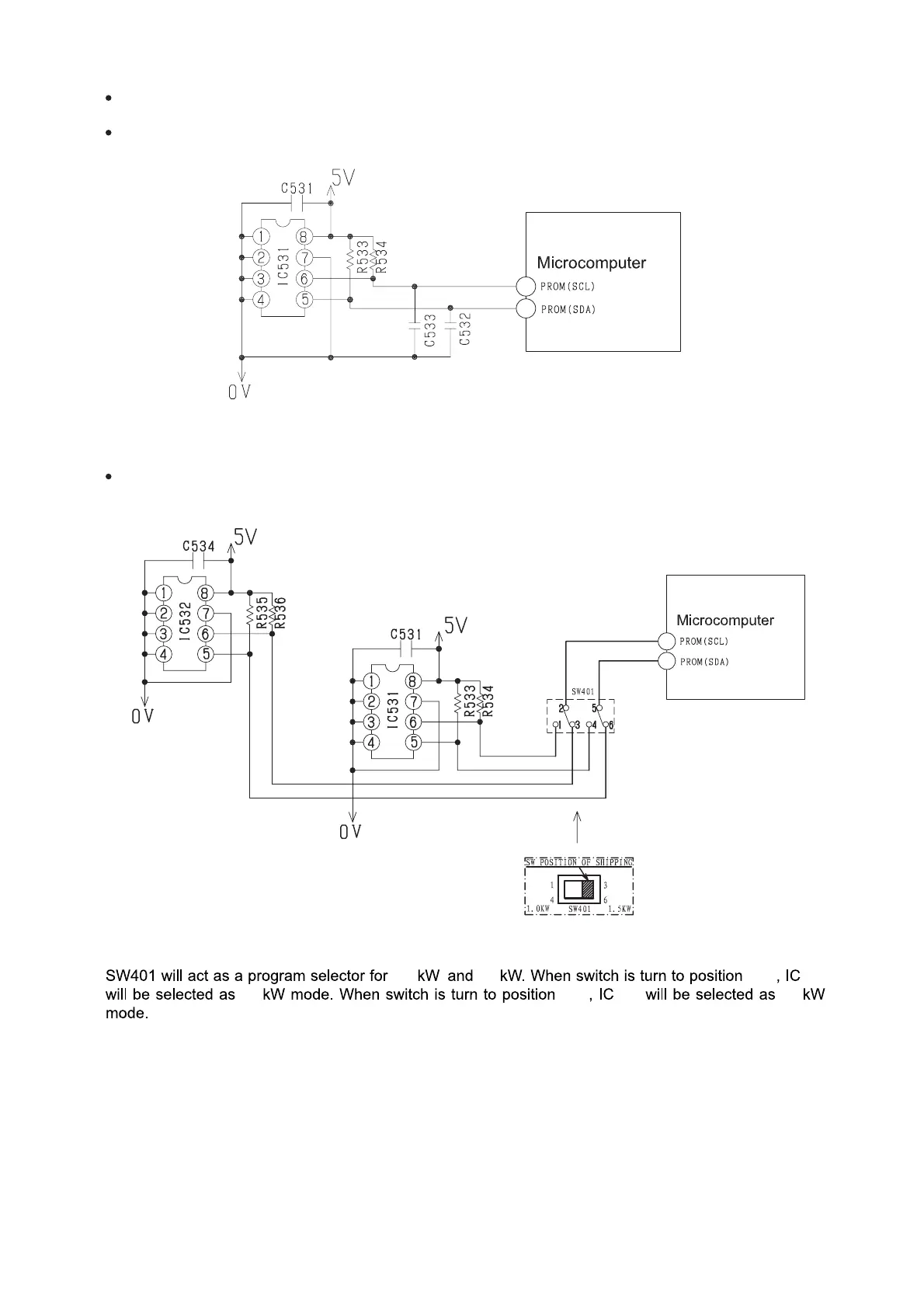

Fig. 6-1
6. Initial Setting Circuit (IC531)
1.0 1.5
1.51.0
531
Fig. 6-2
Initial Setting Circuit (IC531 and IC532) - For RAK -15Q PE only (RAK-15QEF un se)
When power is supplied, the microcomputer reads the data in IC531 and IC532 (E PROM) and sets the
2
preheating activation value and the rating and maximum speed of the compressor, etc. to their initial values.
(1 4)
(3 6) 532
24
25
24
25
u
