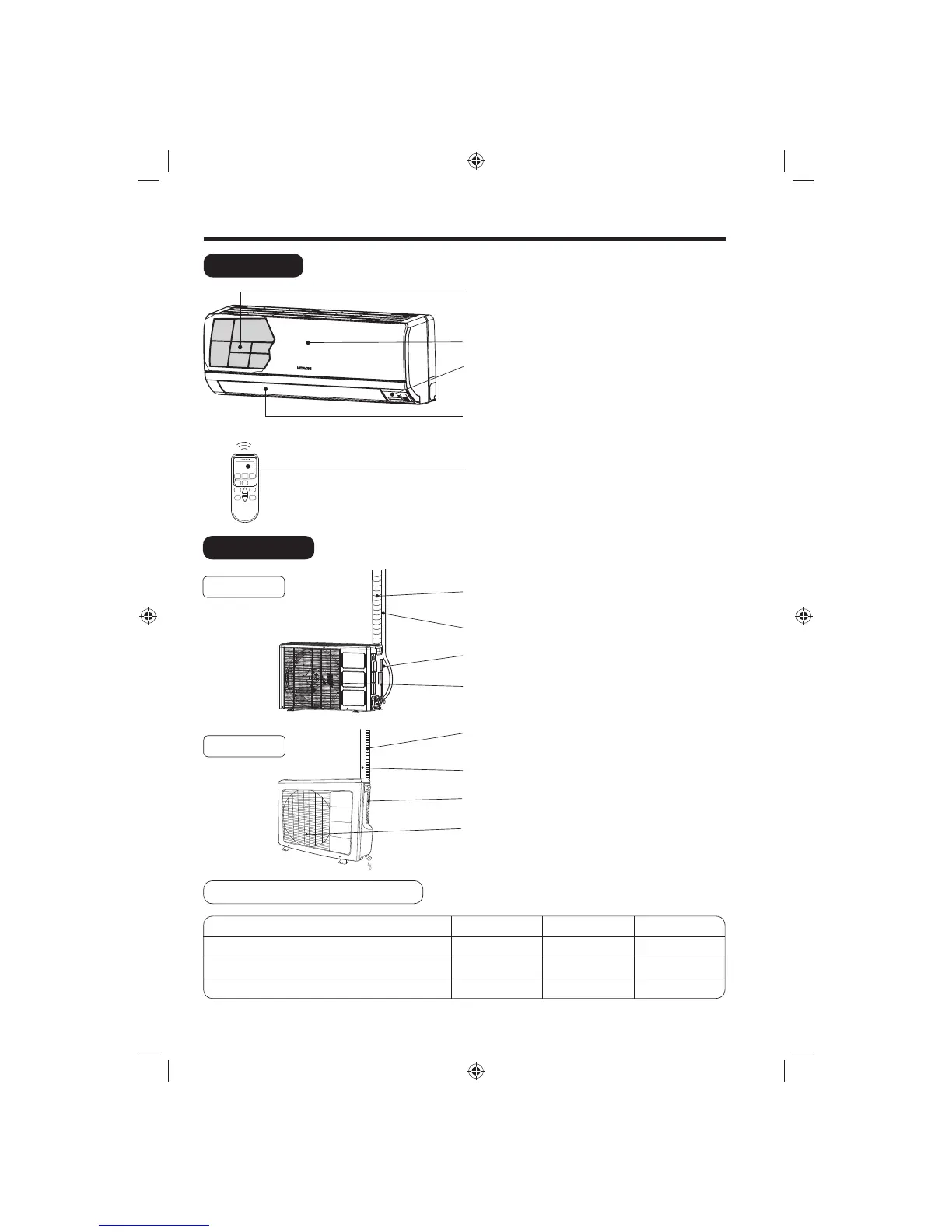

INDOOR UNIT
NAMES AND FUNCTIONS OF EACH PART
Pre-fi lter
To prevent dust from coming into the indoor unit.
(Refer page 17)
Front panel
Indoor unit indicators
Light indicator showing the operating condition.
(Refer page 5)
Horizontal defl ector
●
Vertical defl ector
(Air Outlet)
(Refer page 12)
Remote controller
Send out operation signal to the indoor unit. So as
to operate the whole unit.
(Refer page 6)
OUTDOOR UNIT
Drain pipe
Condensed water drain to outside.
Connecting cord and insulation pipe for piping
Air inlet (Back, Left side)
Air outlet
WIDTH (mm)
790
700
750
MODEL
RAS-S10CDT/RAS-S13CDT
RAC-S10CDT
RAC-S13CDT
HEIGHT (mm)
300
468
570
DEPTH (mm)
230
258
280
MODEL NAME AND DIMENSIONS
Drain pipe
Condensed water drain to outside.
Connecting cord and insulation pipe for piping
Air inlet (Back, Left side)
Air outlet
RAC-S10CDT
RAC-S13CDT
