– 4 –
INDOOR UNIT

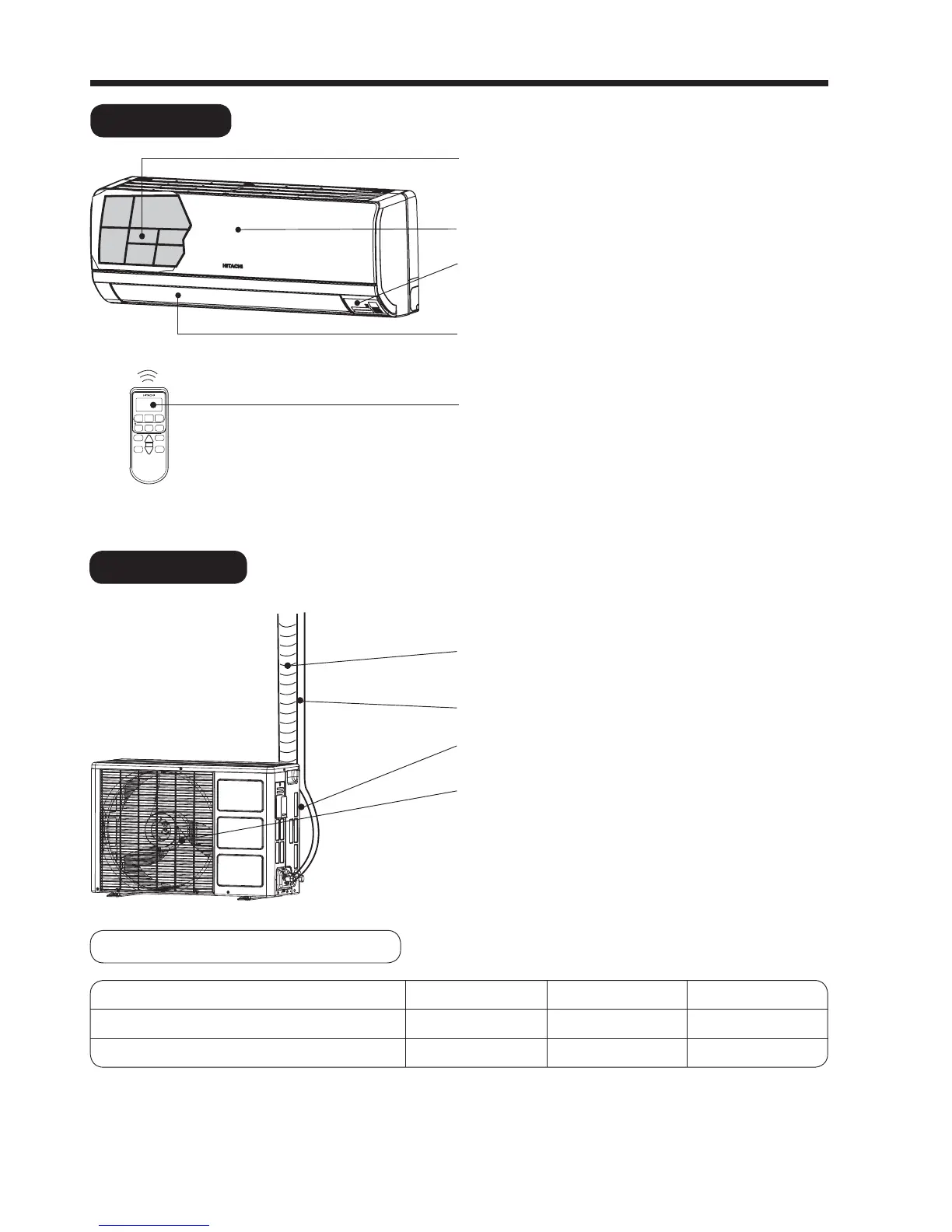

NAMES AND FUNCTIONS OF EACH PART
Pre- lter
To prevent dust from coming into the indoor unit.
(Refer page 19)
Front panel
Indoor unit indicators
Light indicator showing the operating condition.
(Refer page 5)
Horizontal de ector
●
Vertical de ector
(Air Outlet)
(Refer page 14)
Remote controller
Send out operation signal to the indoor unit. So as
to operate the whole unit.
(Refer page 6)
OUTDOOR UNIT
Drain pipe
Condensed water drain to outside.
Connecting cord and insulation pipe for piping
Air inlet (Back, Left side)
Air outlet
WIDTH (mm)
790
700
MODEL
RAS-X10CB/RAS-XE10CC/RAS-X13CB
RAC-SX10CB/RAC-SX13CB
HEIGHT (mm)
300
468
DEPTH (mm)
230
258
MODEL NAME AND DIMENSIONS
To Next Page
