– 4 –
INDOOR UNIT

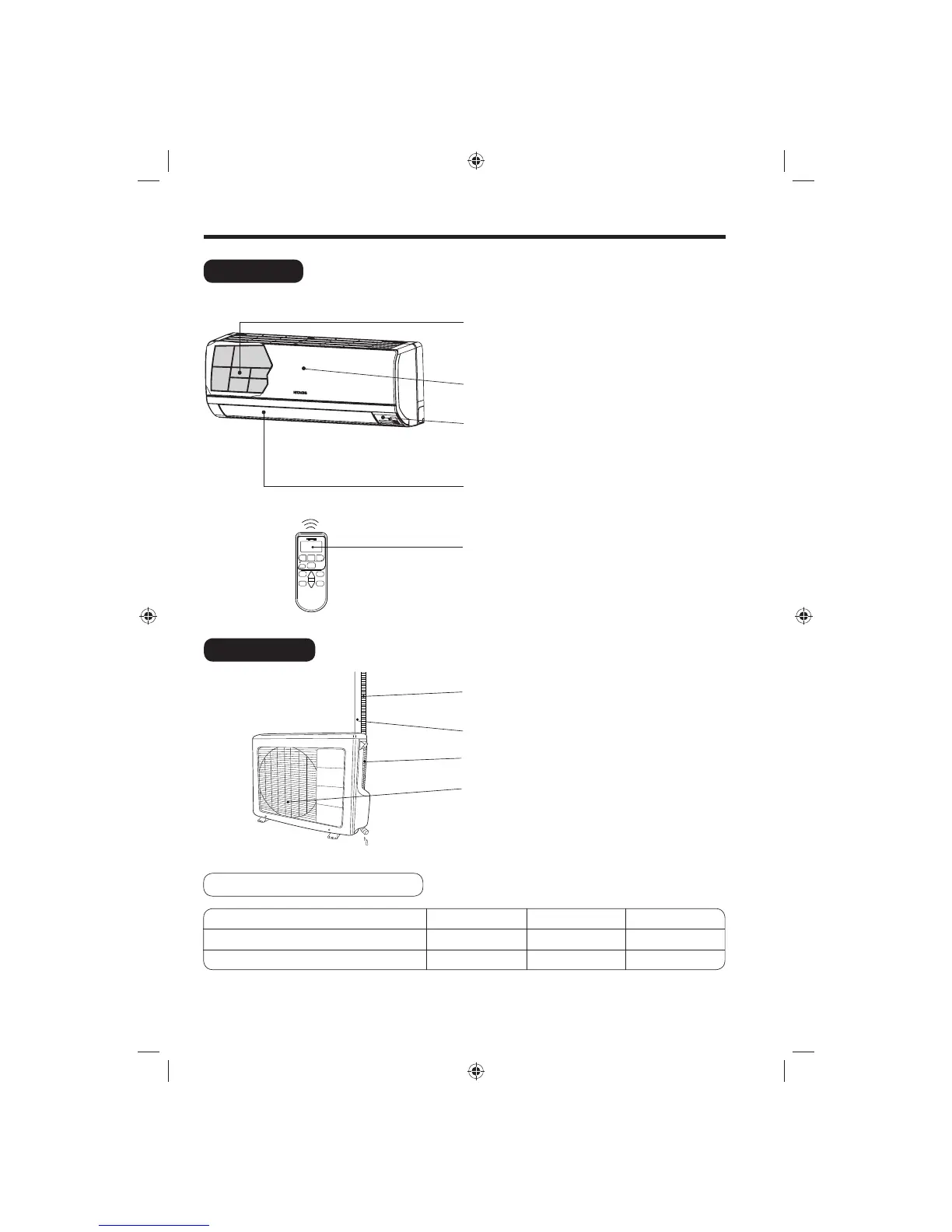

NAMES AND FUNCTIONS OF EACH PART
Air fi lter
To prevent dust from coming into the indoor unit.
(Refer page 17)
Front panel
Indoor unit indicators
Light indicator showing the operating condition.
(Refer page 5)
Horizontal defl ector
●
Vertical defl ector
(Air Outlet)
(Refer page 12)
Remote controller
Send out operation signal to the indoor unit. So as
to operate the whole unit.
(Refer page 6)
OUTDOOR UNIT
Drain pipe
Condensed water drain to outside.
Connecting cord and insulation pipe for piping
Air inlet (Back and Left side)
Air outlet
WIDTH (mm)
900
750
MODEL
RAS-X18CD
RAC-X18CD
HEIGHT (mm)
300
570
DEPTH (mm)
230
280
MODEL NAME AND DIMENSIONS
