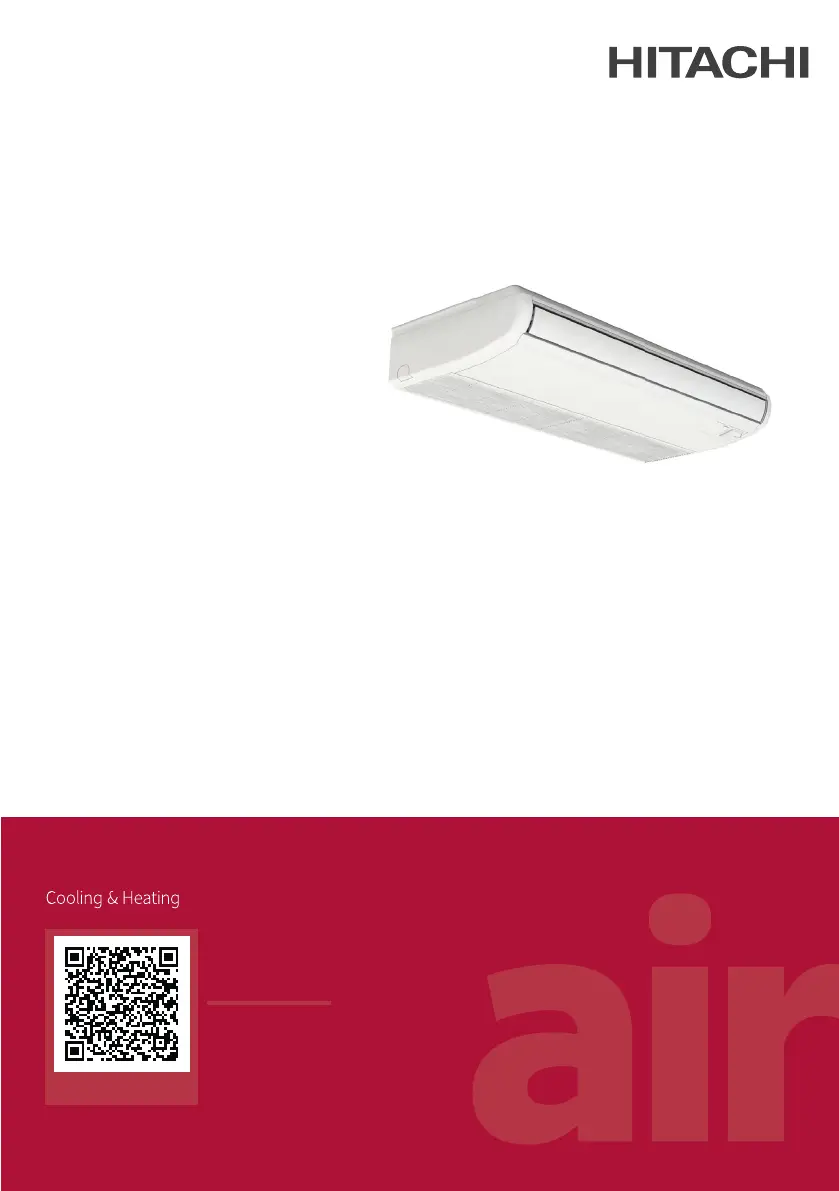

INSTALLATION &

OPERATION

MANUAL

INDOOR UNITS SYSTEM FREE

Ceiling Type

MODELS

RPC-(1.5-6.0)FSR

INSTALLATION AND OPERATION MANUAL

MANUAL DE INSTALACIÓN Y FUNCIONAMIENTO

INSTALLATIONS- UND BETRIEBSHANDBUCH

MANUEL D’INSTALLATION ET DE FONCTIONNEMENT

MANUALE D’INSTALLAZIONE E D’USOI

MANUAL DE INSTALAÇÃO E DE FUNCIONAMENTO

INSTALLATIONS- OG BETJENINGSVEJLEDNING

INSTALLATIE- EN BEDIENINGSHANDLEIDING

INSTALLATION- OCH DRIFTHANDBOK

ΕΓΧΕΙΡΙΔΙΟ ΕΓΚΑΤΑΣΤΑΣΗΣ ΚΑΙ ΛΕΙΤΟΥΡΓΙΑΣ

EN

ES

DE

FR

IT

PT

DA

NL

SV

EL

BG

CS

ET

HU

LV

LT

PL

RO

RU

РЪКОВОДСТВО ЗА ИНСТАЛИРАНЕ И ЕКСПЛОАТАЦИЯ

NÁVOD K MONTÁŽI A OBSLUZE

PAIGALDUS- JA KASUTUSJUHEND

TELEPÍTÉSI ÉS ÜZEMELTETÉSI ÚTMUTATÓ

UZSTĀDĪŠANAS UN EKSPLUATĀCIJAS ROKASGRĀMATA

MONTAVIMO IR NAUDOJIMO VADOVĄ

INSTRUKCJA MONTAŻU I OBSŁUGI

MANUAL DE INSTALARE SI OPERARE

ИНСТРУКЦИЯ ПО МОНТАЖУ И ЭКСПЛУАТАЦИИ

PMML0551 rev.4 - 07/2023 - A10762310A

SCAN QR

Installation and

Operation

manual

https://docs.hitachiaircon.com/

RPC-FSR

Other manuals for Hitachi RPC-2.0FSR

Technical Catalogue88 pages

Operation Manual28 pages

Installation & Maintenance Manual52 pages

Questions and Answers:

T
Terry MannAug 13, 2025
Why does my Hitachi Air Conditioner operation stop?
- J
  Justin BatesAug 13, 2025
  The Hitachi Air Conditioner might stop operating due to several reasons: * The micro-computer may be activated to protect the device from electromagnetic waves. In this case, restart the operation. * If “Motion Sensor ON” is enabled on the wired controller, the unit might stop if the sensor detects absence for a prolonged period, especially if set to “If absent: OFF”. This will stop all indoor units connected to the same wired controller. * Following a power failure, the unit should restart automatically if the failure lasts less than 2 seconds. Otherwise, manually restart the operation.
S
Sandra AshleyAug 17, 2025
Why is the temperature irregular in my Hitachi Air Conditioner?
- S
  Scott SimpsonAug 17, 2025
  The air flow volume and temperature may be irregular due to structural factors like the size of the air outlet and the location of the heat exchanger.
R
Robert GarciaAug 20, 2025
What to do if my Hitachi Air Conditioner has an odor?
- K
  keith22Aug 21, 2025
  If you notice an odor coming from your Hitachi Air Conditioner, it might be due to smells like cigarette smoke or other room odors that have been absorbed inside the unit. To resolve this: * Ventilate the room well while running the unit in fan mode. * Clean the air filter, air outlet, and air inlet grille.
L
Linda PinedaAug 25, 2025
Why is there mist coming from my Hitachi Air Conditioner indoor unit?
- D
  diazedwardAug 25, 2025
  Mist coming from your Hitachi Air Conditioner's indoor unit can occur for several reasons: * **In restaurants or kitchens:** Oil attached to the fins might decrease heat exchange efficiency. * **During dry operation:** The air outlet temperature might become too low; try changing the operation mode. * **During cooling operation in humid environments:** The air outlet temperature might be too low; raise the set temperature and the air flow volume. * **During FrostWash:** Frost may form on the fins of the heat exchanger.
T
Theresa WoodsAug 28, 2025
Why is my Hitachi RPC-2.0FSR Air Conditioner making sounds?
- K
  kflynnAug 28, 2025
  Your Hitachi Air Conditioner may produce various sounds during operation: 1. A grate sound when starting or stopping is normal; it's due to components rubbing as resin parts expand and contract with temperature changes. 2. The sound of water flowing or burbling during operation is the refrigerant flowing or the drain-up mechanism draining water, especially noticeable when starting or stopping the compressor (for about 3 minutes). 3. A growling sound may occur temporarily after changing the air flow volume because the fan motor makes a temporary sound when the fan speed changes. 4. Crackling sounds or the sound of frost melting during FrostWash are normal, caused by the heat exchanger fins freezing and thawing and the extension and contraction of resin parts due to temperature changes.
N
Nancy HarringtonAug 31, 2025
Why is there dew condensation on my Hitachi RPC-2.0FSR Air Conditioner indoor unit?
- J
  Joseph LunaAug 31, 2025
  Dew condensation on your Hitachi Air Conditioner's indoor unit can occur due to: * Operating the unit in a humid place (relative humidity around 80%) for an extended period. * During or after FrostWash, especially in humid (around 80% relative humidity) and high-temperature environments (above 30°C).
T
Terry MurraySep 5, 2025
Why is there white steam from my Hitachi RPC-2.0FSR Air Conditioner indoor unit?
- C
  costamarkSep 5, 2025
  White steam from the Hitachi Air Conditioner's indoor unit might appear during the defrosting operation when the unit is in heating mode.
T
Teresa HessSep 8, 2025
Why is there white smoke from my Hitachi RPC-2.0FSR indoor unit?
- D
  Deborah MunozSep 8, 2025
  White smoke from the Hitachi Air Conditioner's indoor unit may occur at the beginning of the heating season. This can happen when dust attached to the heat exchanger dries out.

Hitachi RPC-2.0FSR Specifications

General

Type	Split System
Power Source	220-240V, 50Hz
Refrigerant	R410A
Indoor Unit Weight	9 kg
Cooling Capacity	2000 W
Outdoor Unit Noise Level	50 dB(A)
Operating Temperature (Cooling)	18°C to 43°C

Summary

SAFETY INFORMATION

2.1 Symbols Used

Explanation of safety symbols and their meanings.

2.2 Additional Safety Information

Further detailed safety precautions and guidelines.

IMPORTANT NOTICES

3 Important Notice

TROUBLESHOOTING AND ALARMS

9 Troubleshooting Common Issues

General troubleshooting guide for operational problems.

9.1 Contact Distributor

9.2 Main Alarm Codes

List and explanation of system error codes.

INDOOR UNIT INSTALLATION

12 Indoor Unit Installation

Comprehensive guide for installing the indoor unit.

12.2 Initial Check

Site selection and pre-installation checks for the indoor unit.

12.3 Installation

Detailed steps for installing suspension bolts and mounting the unit.

REFRIGERANT PIPING WORK

13 Refrigerant Piping Work

13.1 Piping Materials

13.2 Piping Connection

Details on connecting refrigerant pipes and flaring.

DRAIN PIPING INSTALLATION

14 Drain Piping

ELECTRICAL WIRING

15 Electrical Wiring

Guide for electrical connections, capacity, and settings.

15.1 General Check

15.2 Wiring Specifications and Connections

Covers capacity, harmonics, connection positions, and details.

15.4 Dip Switch Settings

TEST RUN PROCEDURES

16 Test Run

Procedures for verifying system operation after installation.

16.1 Before Test Run

16.2 Start Test Run

SAFETY AND CONTROL DEVICES

17 Main Safety and Control Devices
