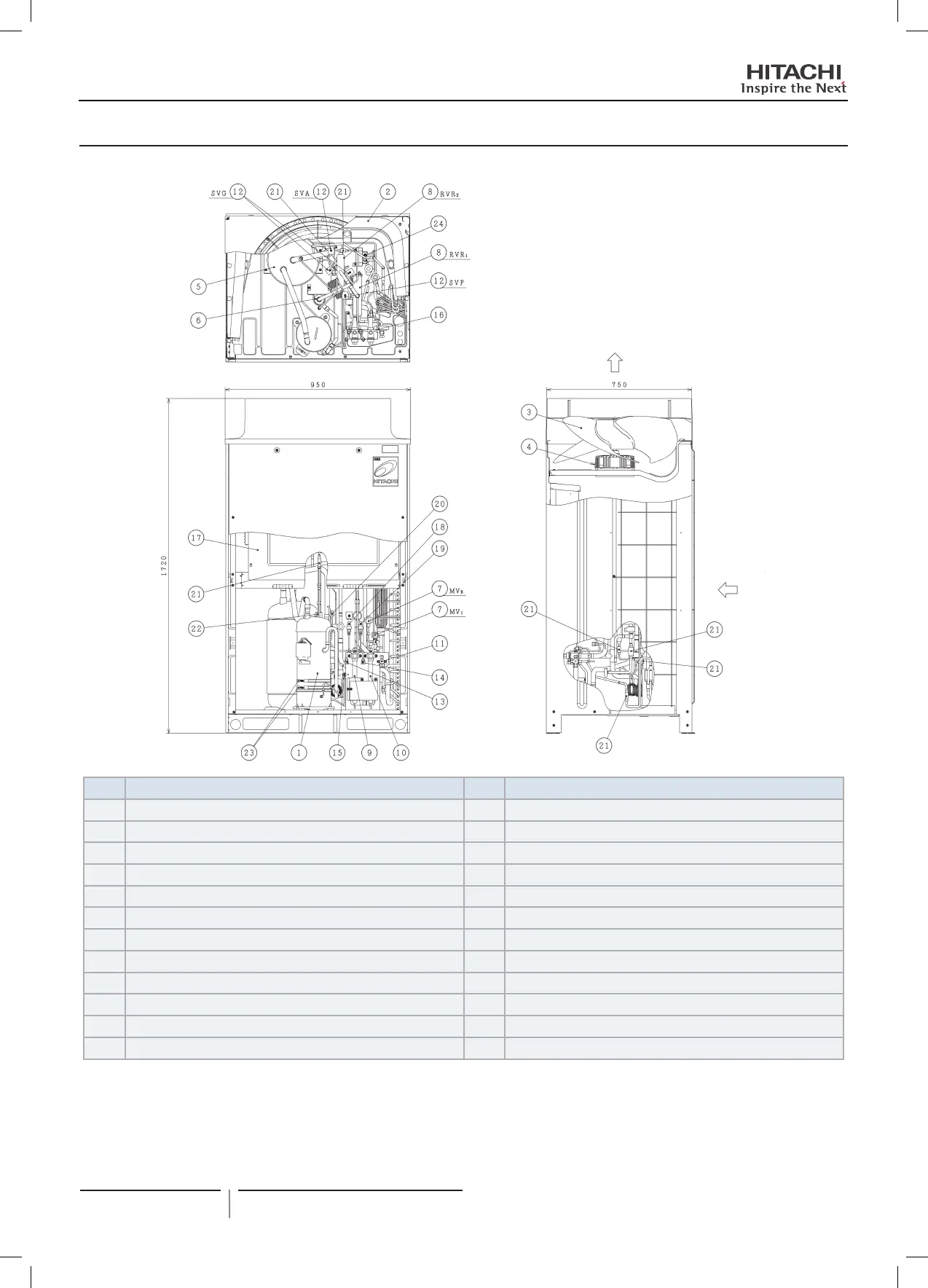

4.2 RAS-(10/12)FSXN1E
Air outlet
Air inlet
Nº. Part Nº. Part
1 Compressor (Inverter) 13 Check joint (low)
2 Heat exchanger 14 Check joint (high)
3 Propeller fan 15 Check joint (for oil)
4 Fan motor 16 Check joint (for refrigerant)
5 Accumulator 17 Electrical control box
6 Oil separator 18 Low pressure sensor
7 Micro-computer control expansion valve (2 pcs.) 19 High pressure sensor
8 Reversing valve (2 pcs.) 20 High pressure switch for protection
9 Stop valve (low pressure gas) 21 Strainer
10 Stop valve (high/low pressure gas) 22 Check valve
11 Stop valve (liquid) 23 Crankcase heater (2 pcs.)
12 Solenoid valve (4 pcs.) 24 Double tube type heat exchanger
8
PMML0294A rev.2 - 07/2014
Part names
PMML0294A_rev.2_02-2014.indb 8 14/07/2014 12:28:01
