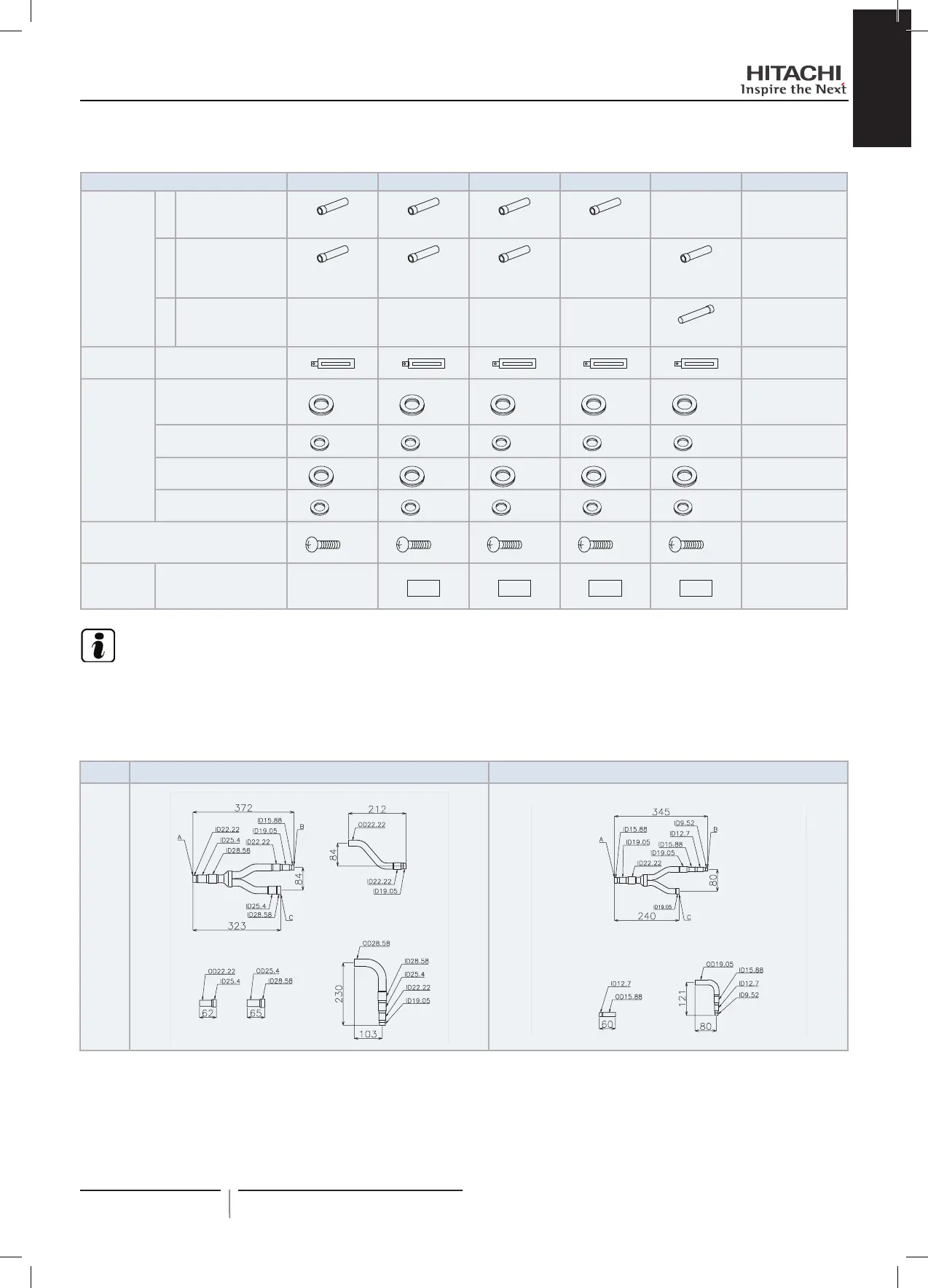

Accessories factory-supplied with FSXNH(E) units
Accessory 5HP 6HP 8HP 10HP 12HP Remarks
Accessory
pipe
(A)
Connection for
refrigerant gas
(high/low) pipe
-
Only for heat
recovery system
∅22.2→∅12.7 ∅22.2→∅15.88 ∅22.2→∅15.88 ∅22.2→∅19.05
(B)
Connection for
refrigerant gas
(high/low) pipe
-
* Low for heat
recovery system
* High/Low for
heat pump system
∅22.2→∅15.88 ∅22.2→∅19.05 ∅22.2→∅19.05 ∅22.2→∅25.4
(C)
Connection for
refrigerant liquid
pipe
- - - -
∅9.52→∅12.7
Cord clamp
For xing power source
cable
Rubber
bush
For power source cable
outlet (bottom base,
feet)
×2 ×2 ×2 ×2 ×2
∅58
For power source cable
outlet (piping cover)
×1 ×1 ×1 ×1 ×1
∅32
For transition wire outlet
(bottom base, feet)
×2 ×2 ×2 ×2 ×2
∅70
For transition wire outlet
(piping cover)
×2 ×2 ×2 ×2 ×2
∅38
Screw
(1 for xing cord clamp, 2 for spare)
×3 ×3 ×3 ×3 ×3
Combination
unit model
label
For identifying
combination unit model
-
NOTE
Please contact your HITACHI distributor if any of the accessories has not been supplied with the unit.
8.1.3 Pipe connection kit
SET FREE FSXN1E series (2 pipes)
Model High/low pressure gas line Liquid line
MC-20AN1
23
PMML0294A rev.2 - 07/2014
Piping work and refrigerant charge
PMML0294A_rev.2_02-2014.indb 23 14/07/2014 12:28:13
